Safari Microwave delivers high-quality RF amplifiers, switches, and passive components that meet top international standards. With strong R&D and flexible production, we support both small and large orders with fast service. Committed to “Excellence in Every Hertz,” we bring innovation and reliability to the global RF market.
30+Years Experience
Top RF Amplifiers Manufacturers In China
- Safari MW RF amps cover 30 MHz–170 GHz with <0.5 dB gain flatness and <0.5 NF, ideal for 5G, satellite, radar.
- Each unit is 100% auto-tested on 30+ metrics for zero defects.
- In a 30,000 m² ISO 9001 factory, custom samples ship in 7 days.
- Trusted by 1,000+ global clients, Safari MW serves defense, aerospace, and telecom.
30+Years Experience
Top RF Amplifiers Manufacturers In China
- 30 MHz–170 GHz RF amps, <0.5 dB flatness, <0.5 NF — for 5G, satellite, radar.
- Each unit is 100% auto-tested on 30+ metrics for zero defects.
- In a 30,000 m² ISO 9001 factory, custom samples ship in 7 days.
- Trusted by 1,000+ clients in defense, aerospace & telecom.
30+ Years RF Excellence
Over 30 years of industry experience, trusted by 1000+ clients with proven quality and reliability.
Agile Custom Manufacturing
Fast OEM/ODM with flexible specs—40% quicker from prototype to delivery than industry peers.
Expert Engineering Team
12+ senior RF engineers ensuring performance in radar, satellite, and 5G-grade systems.
Your Trustful RF Amplifier Supplier
Consistent, reliable, and customizable solutions designed to meet the demands of telecommunications, aerospace, and testing labs worldwide.
Saturated Power Amplifier，0.03-40GHz，Up to 3000W
Safari MW’s Saturated Power Amplifiers (30 MHz–40 GHz) deliver up to 3000W with high gain and low VSWR, ideal for radar, satellite, and broadcast.
- Wide frequency range: 0.03–40 GHz
- High gain: 30/50/60 dB
- Saturation Power: Up to 3000W
- Low VSWR: ≤ 2
- Flexible connectors: SMA, 2.92mm, or Waveguide
- Customizable configurations
Narrowband Low Noise Amplifier, Up to 40GHz, NF <0.5
Safari MW's NLNAs deliver low noise figure and gain flatness,ideal for radar,communications and electronic warfare.
- Compact size
- Lightweight design
- Low noise figure: NF <0.5 dB
- Gain flatness ±0.5 dB
- Wide operating temperature range: -55℃ to +85℃
- Customizable configurations
Wideband Low Noise Amplifier, Up to 110GHz, NF <0.5
Safari MW's WLNAs cover millimeter-wave frequency band with a wider bandwidth. Low noise figure and gain flatness are ideal for communications and RF Testing systems.
- Up to 110GHz
- Gain: 20/40 dB
- Low noise figure: NF <1 dB
- Gain flatness ±0.5 dB
- Wide operating temperature range: -55℃ to +85℃
- Customizable configurations
Wideband Limiting Amplifier, 0.1-40GHz, High Dynamic Range: -70 dBm to +10 dBm
The LA series offers wideband, low-noise amplification with high dynamic range and low power consumption—ideal for long-term use in communication, radar, and test systems.
- Broad frequency coverage: 0.1–40 GHz
- Low noise performance: Noise figure <4 dB
- High dynamic range: -70 dBm to +10 dBm
- Temperature stability: ±1.5°C
- Customizable configurations
Linear Power Amplifier，1-170GHz,Tight Amplitude/Phase Matching
LPA series amplifiers deliver high linearity with low distortion, offering wideband, high-gain performance for radar, communications, and RF testing.
- Frequency range: 1–170 GHz
- Low noise figure
- Amplitude unbalance ±0.5dB
- Phase unbalance ±10°
- Efficient power consumption
- Flexible connector option
- Customizable configurations
Featured Products
Up to 200W
40-170GHz,NF<3dB
Low insertion loss
Up to 500W Power Handling
Up to 500W Power Handling
Gain Flatness≤±1.5dB
Ultra-Low IL

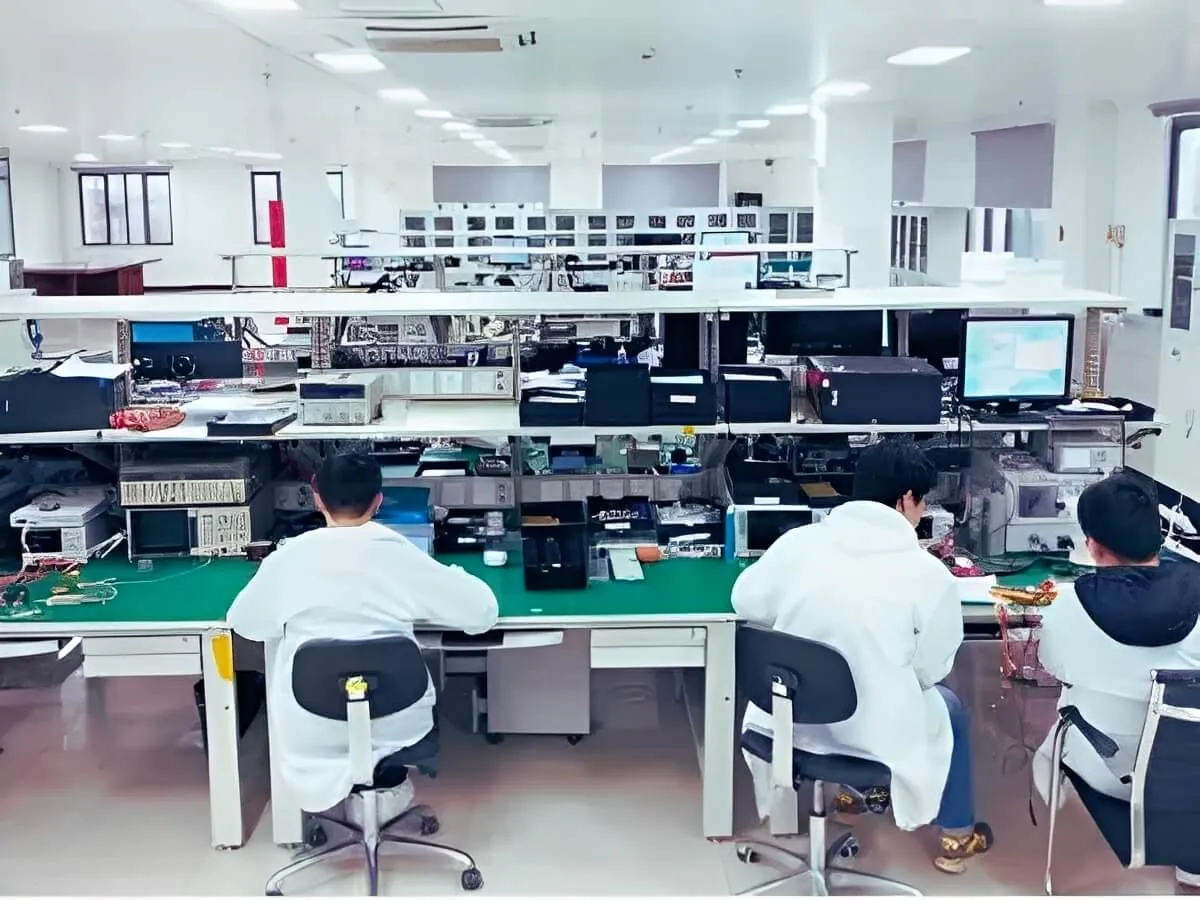

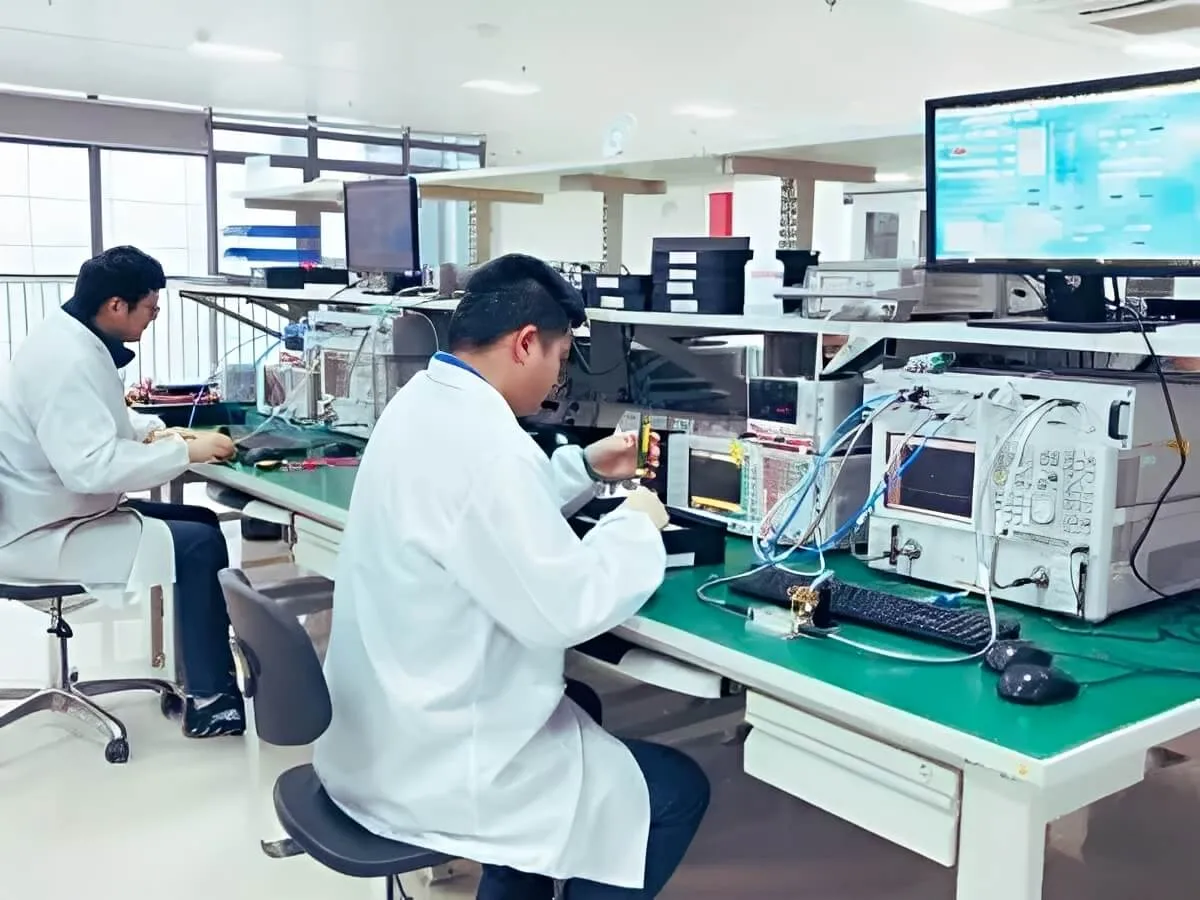

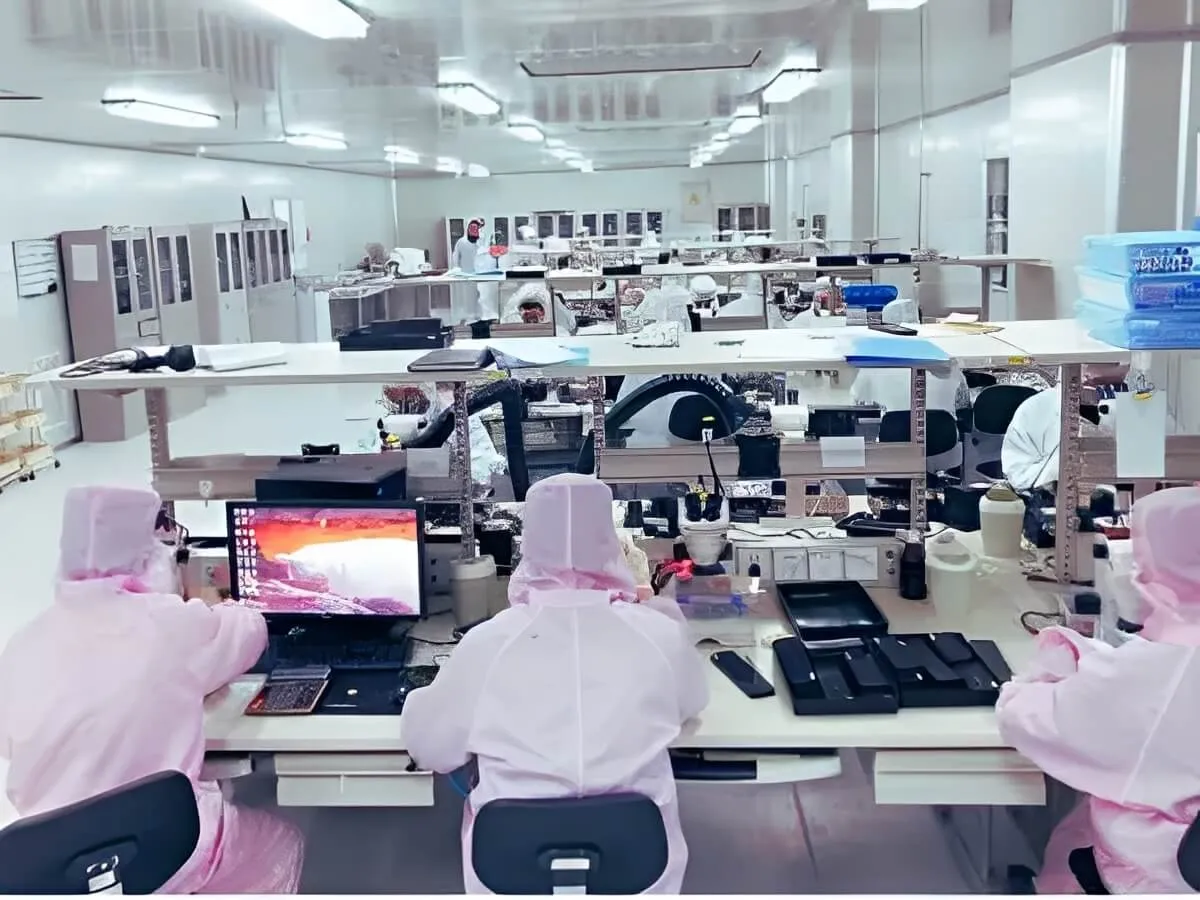

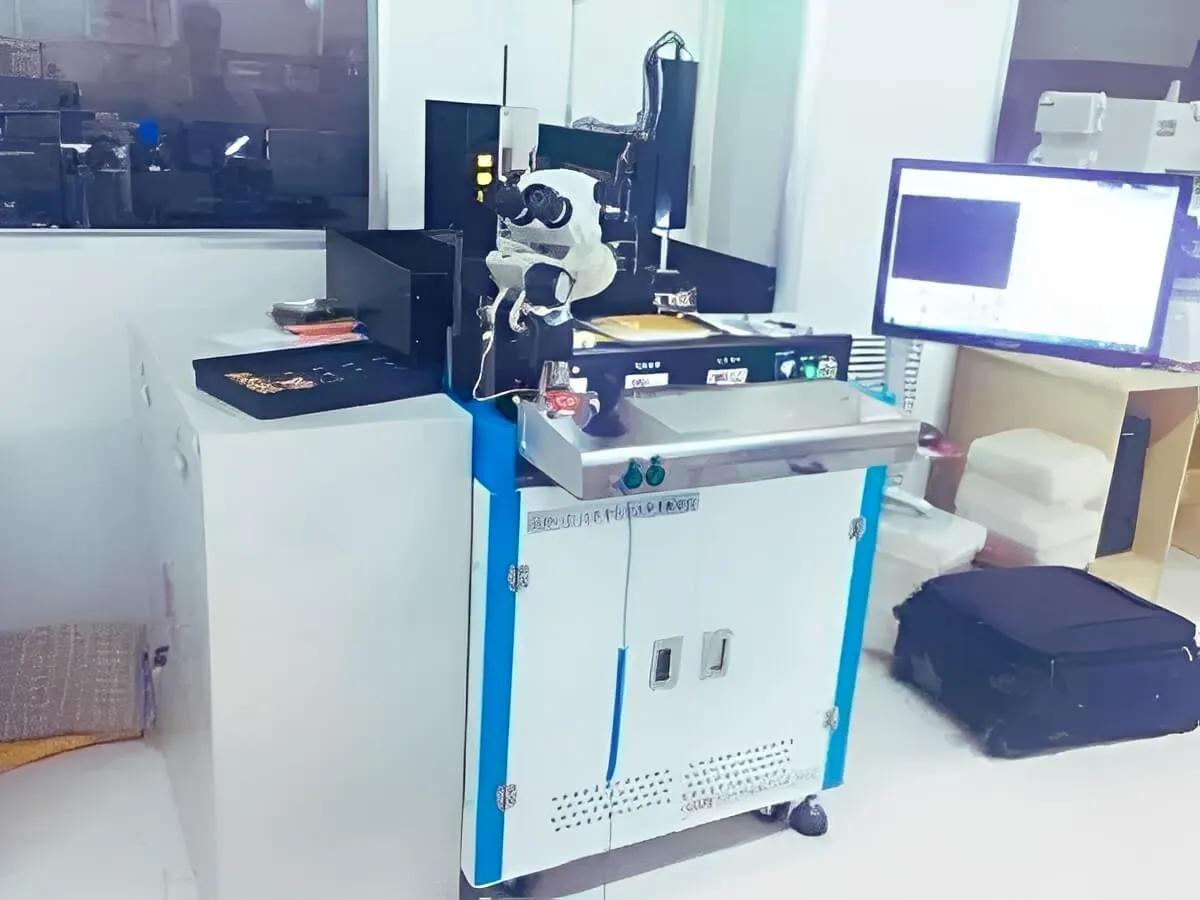

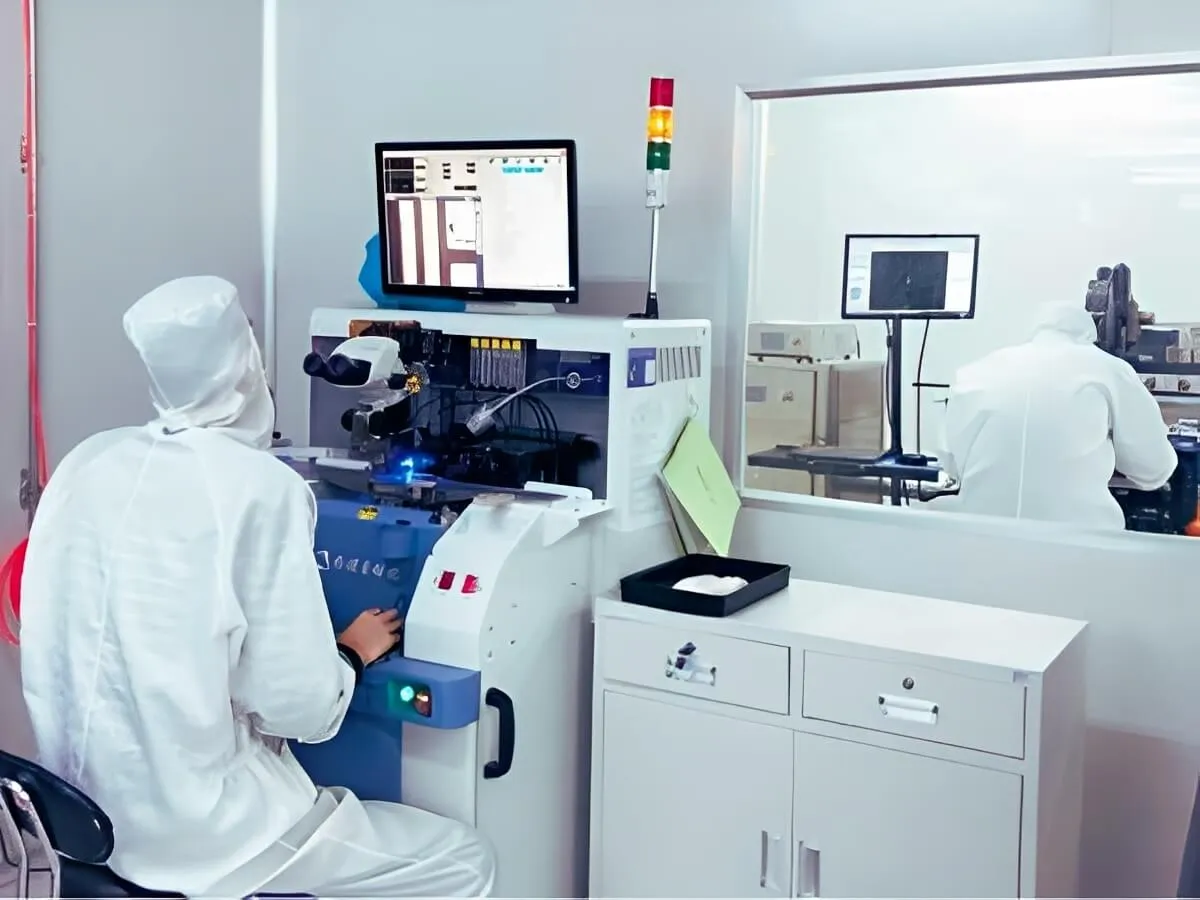

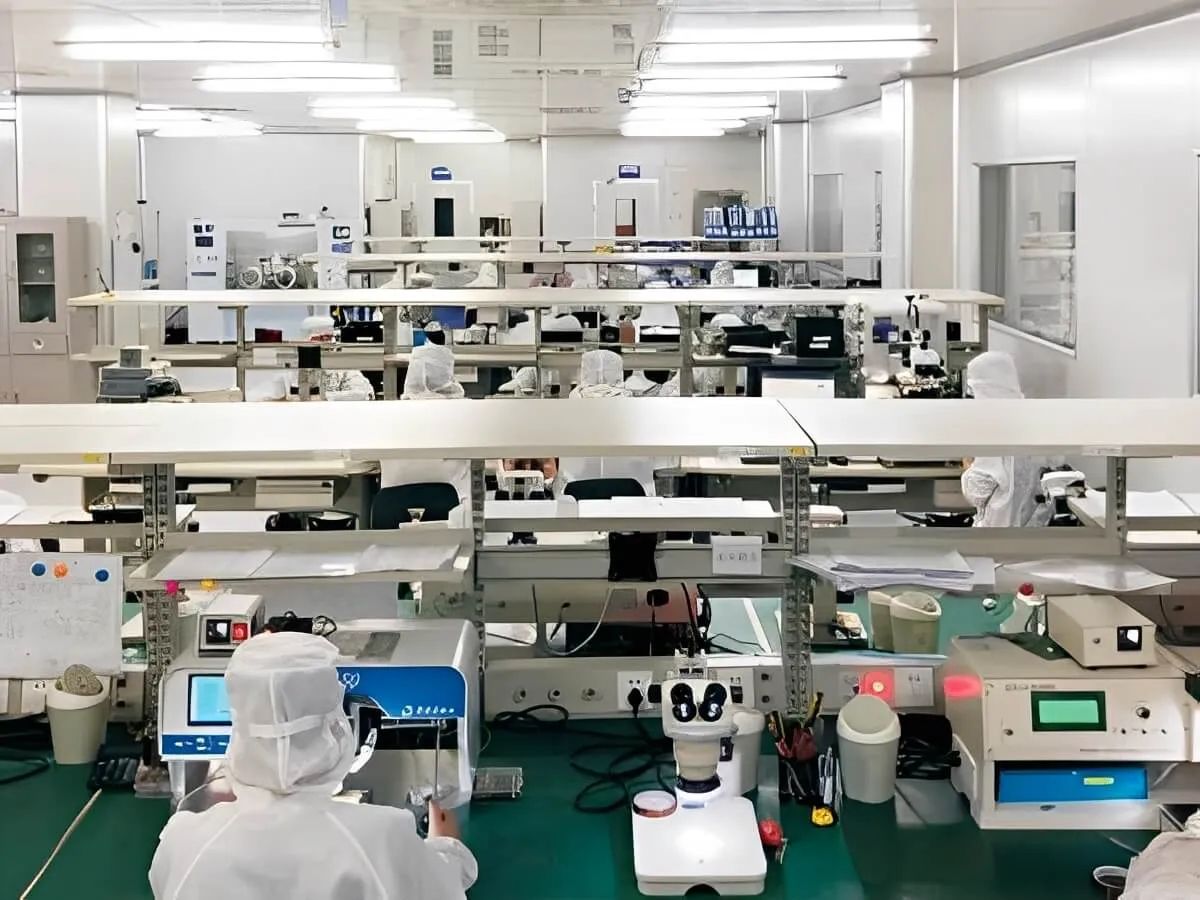

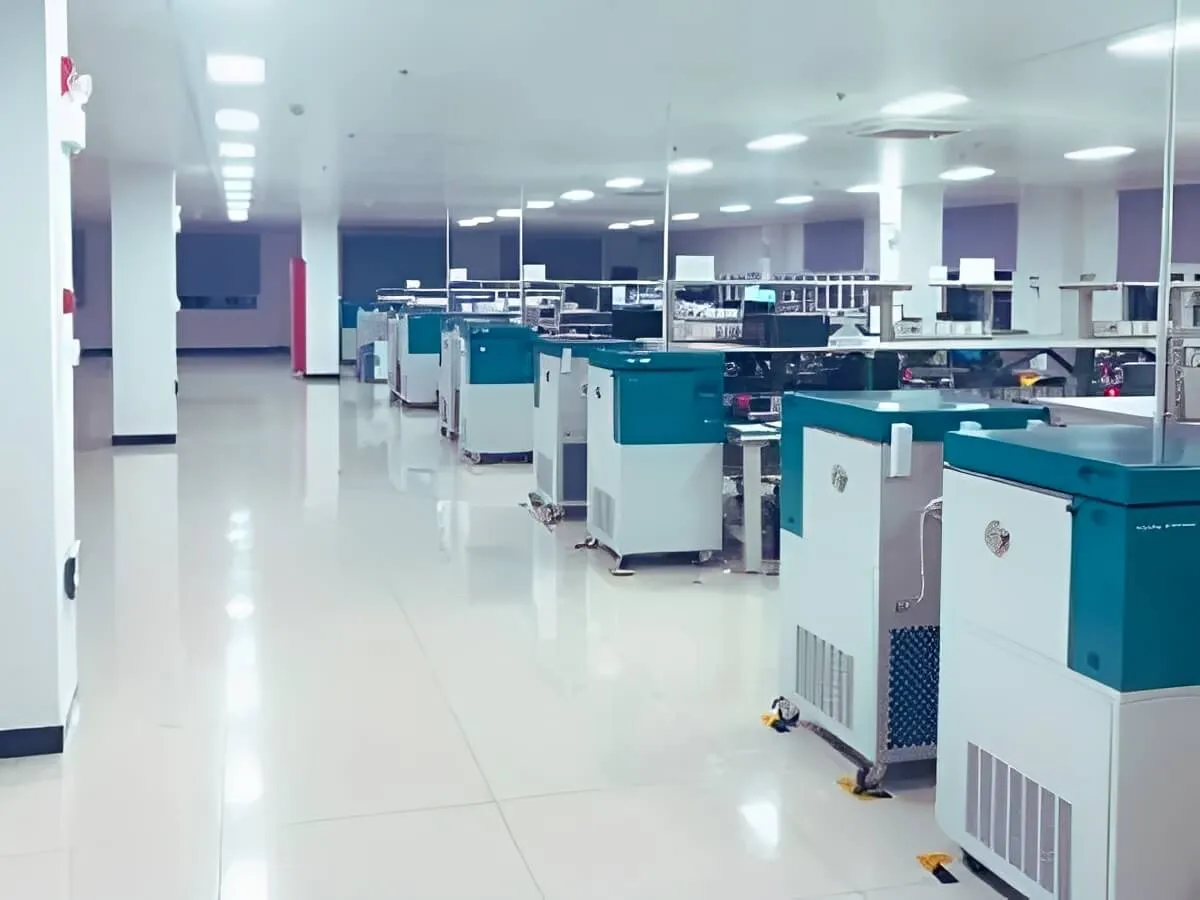

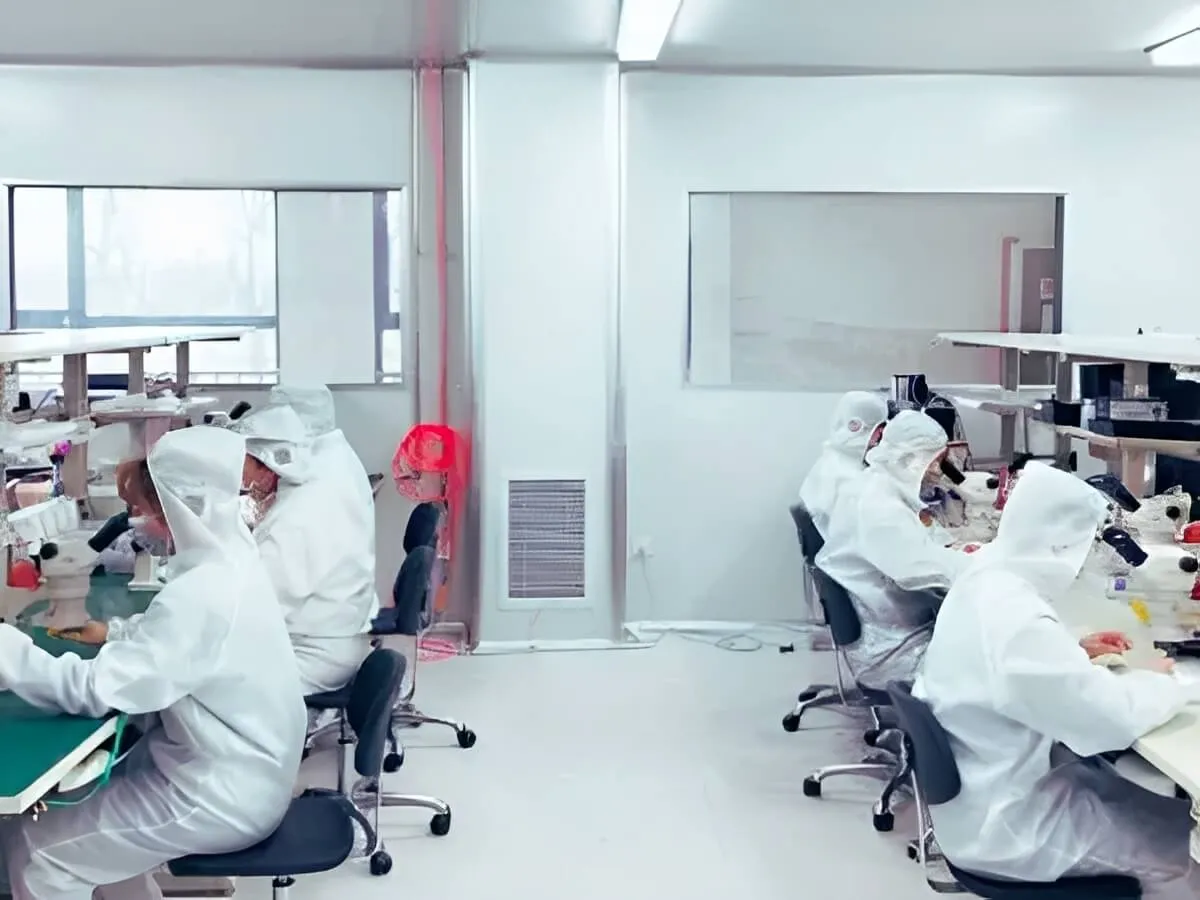

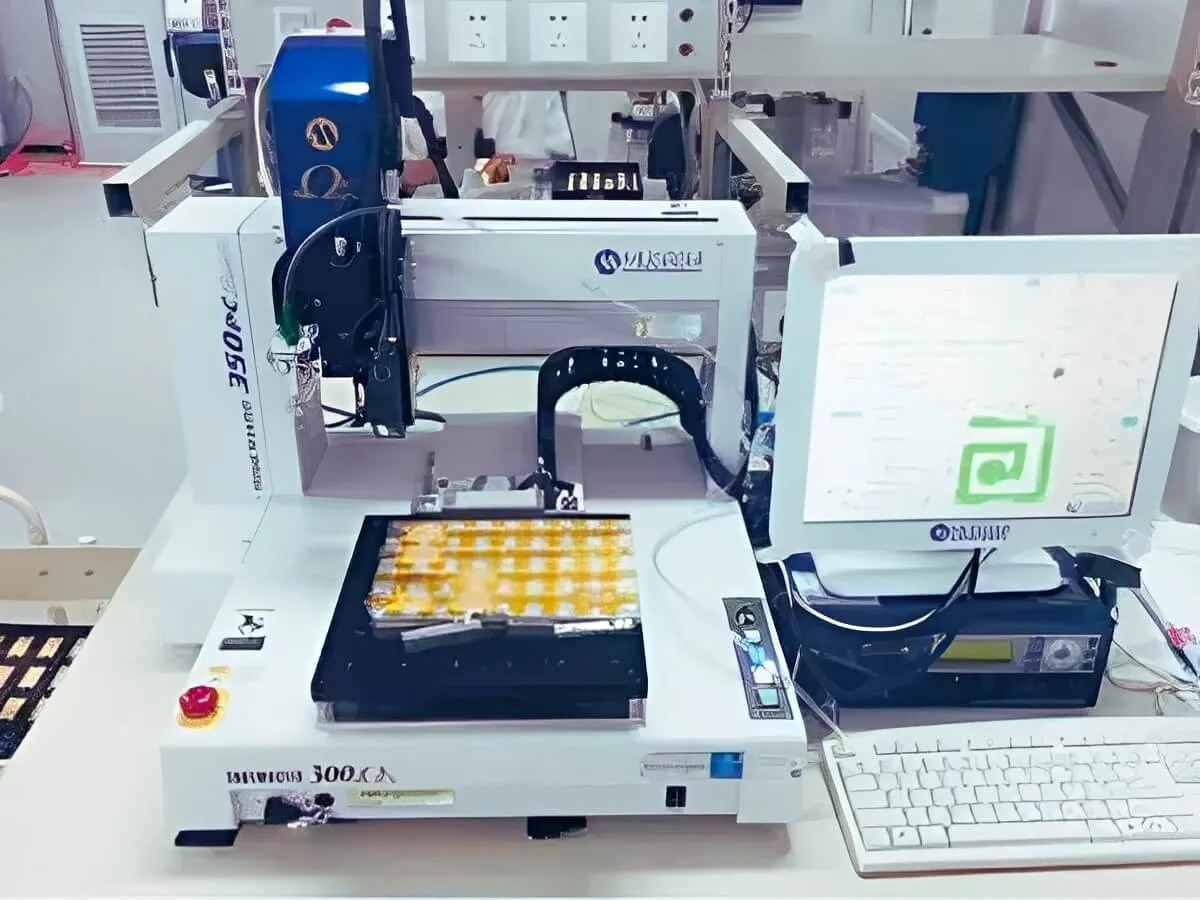

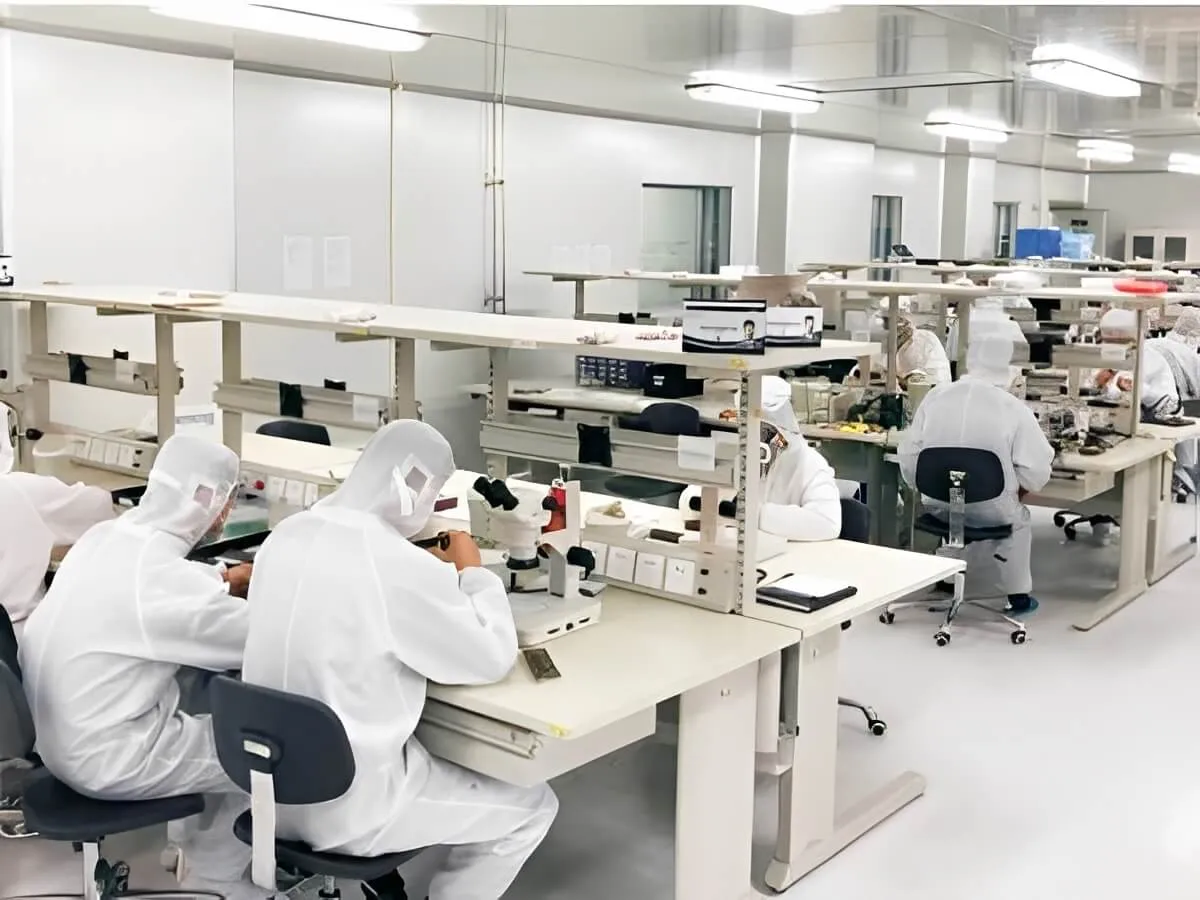

Advanced In-House Manufacturing & Testing Capabilities

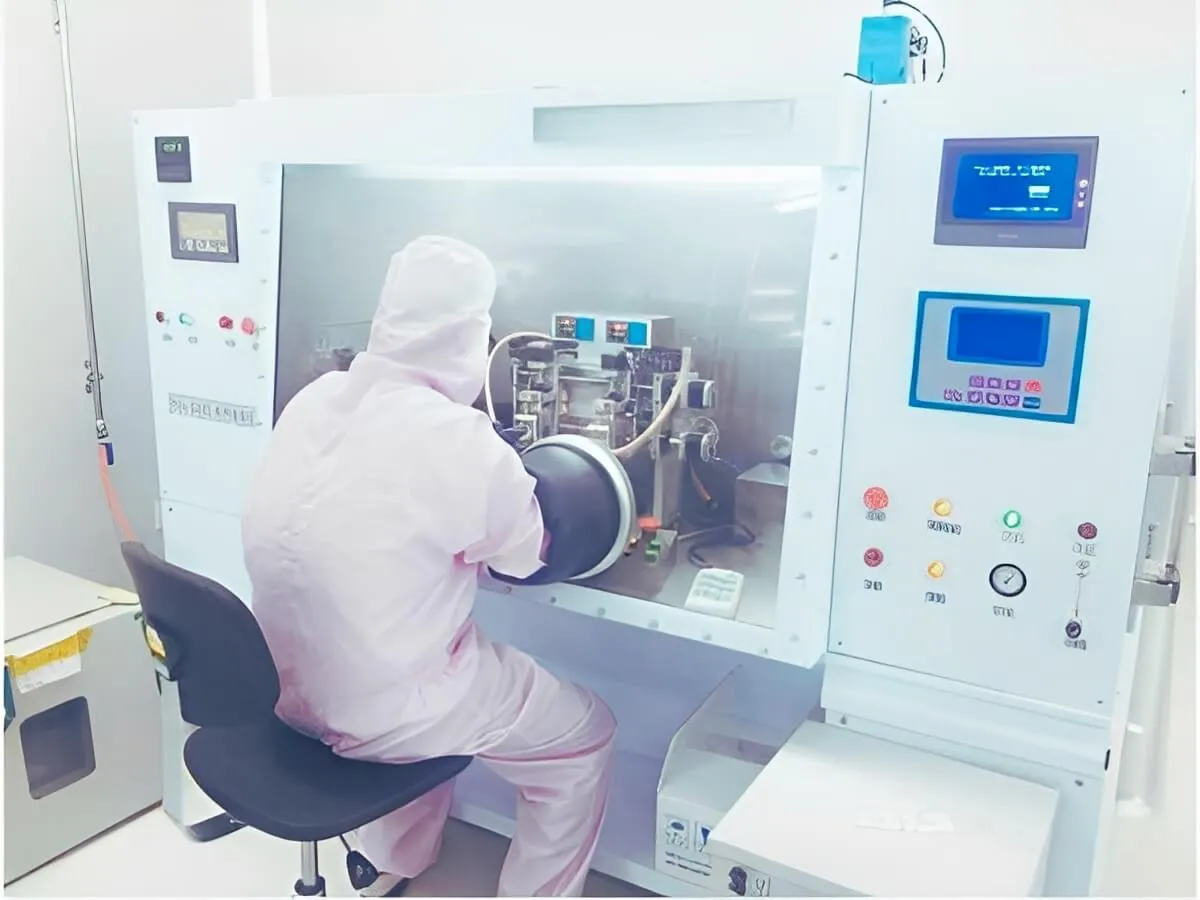

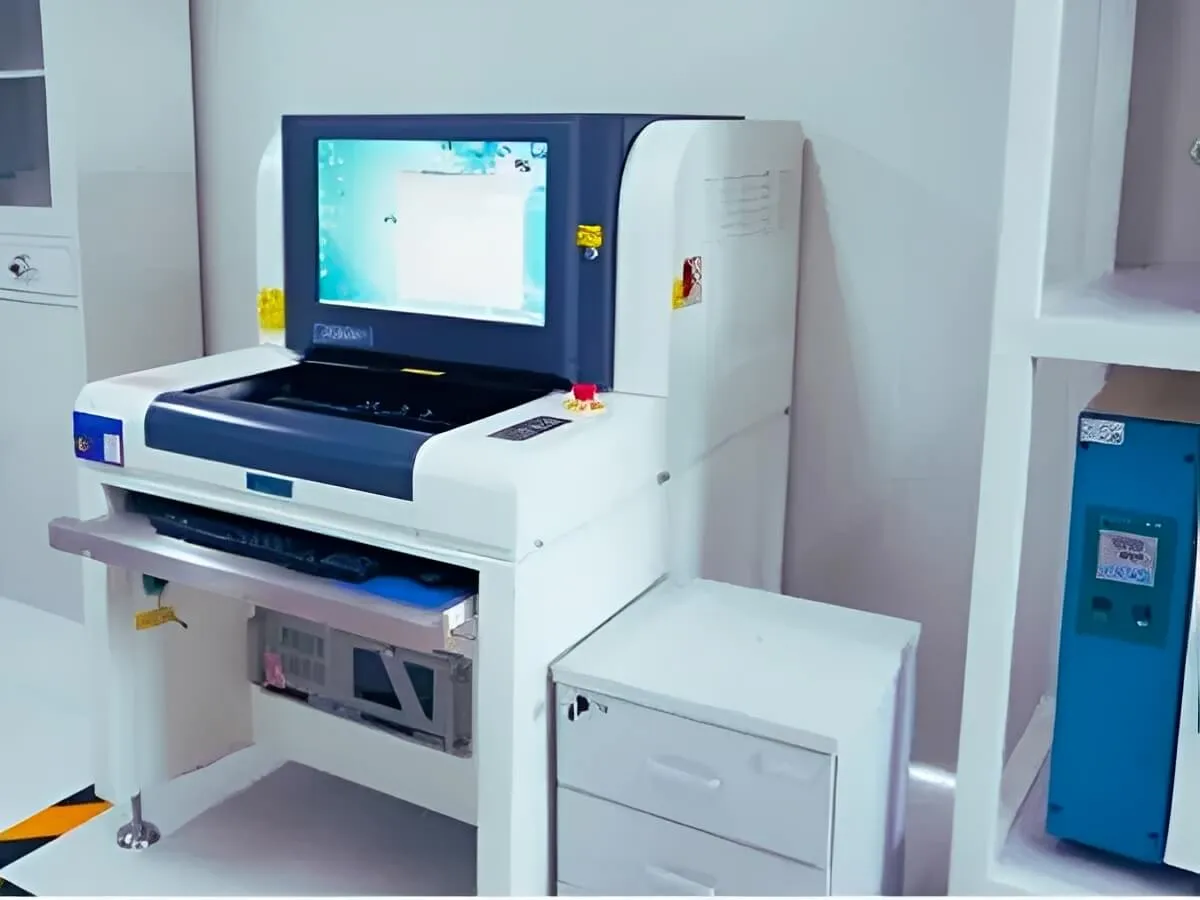

---Critical RF Manufacturing Steps
Critical RF Manufacturing Steps
Advanced In-House Manufacturing & Testing Capabilities
---Critical RF Manufacturing Steps
Fully Customizable
Custom Solid State Power Amplifier
Specifications shown are based on custom project capabilities.Final performance depends on system requirements.
- Frequency from 0.03 to 170 GHz, power customizable to meet RF system needs.
- Supports SMA, 2.92mm (K), waveguide connectors, and custom enclosures.
- Custom mechanical and thermal designs ensure stable operation in harsh conditions.
- Operates reliably from -55℃ to +85℃, suitable for aerospace, telecom, industrial, and defense.
Critical RF Manufacturing Details
30+
Years of Experience
Why Choose us
Founded in 2004, Safari MW’s parent company brings more than 30+ years of expertise to the field — amazing!
By focusing on the domestic market in China, we achieved annual sales exceeding 500 million.
30+ Years of Expertise in RF Engineering and Manufacturing
Safari Microwave brings 30+ years of expertise in RF amplifiers, switches, and high-power passive components production. We deliver fast, reliable, and custom solutions for global B2B clients.

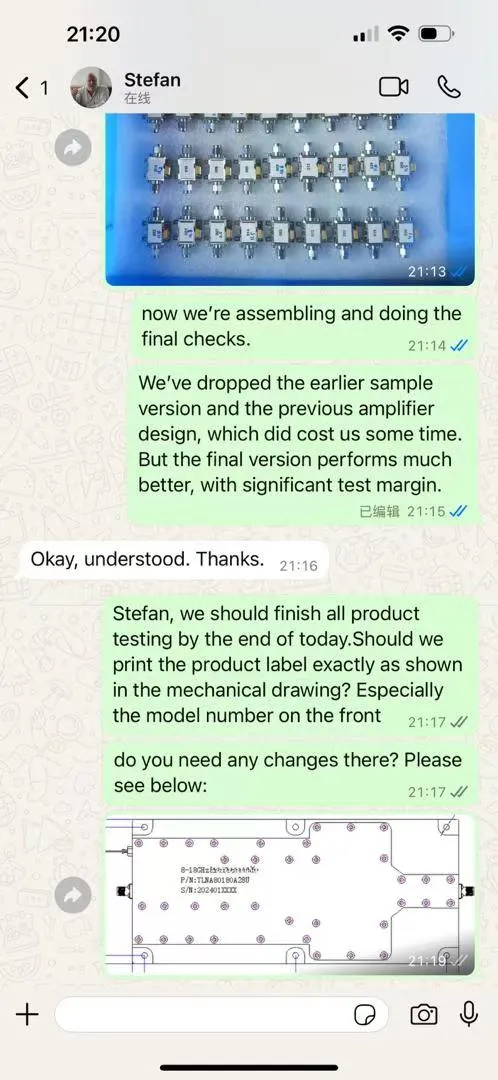

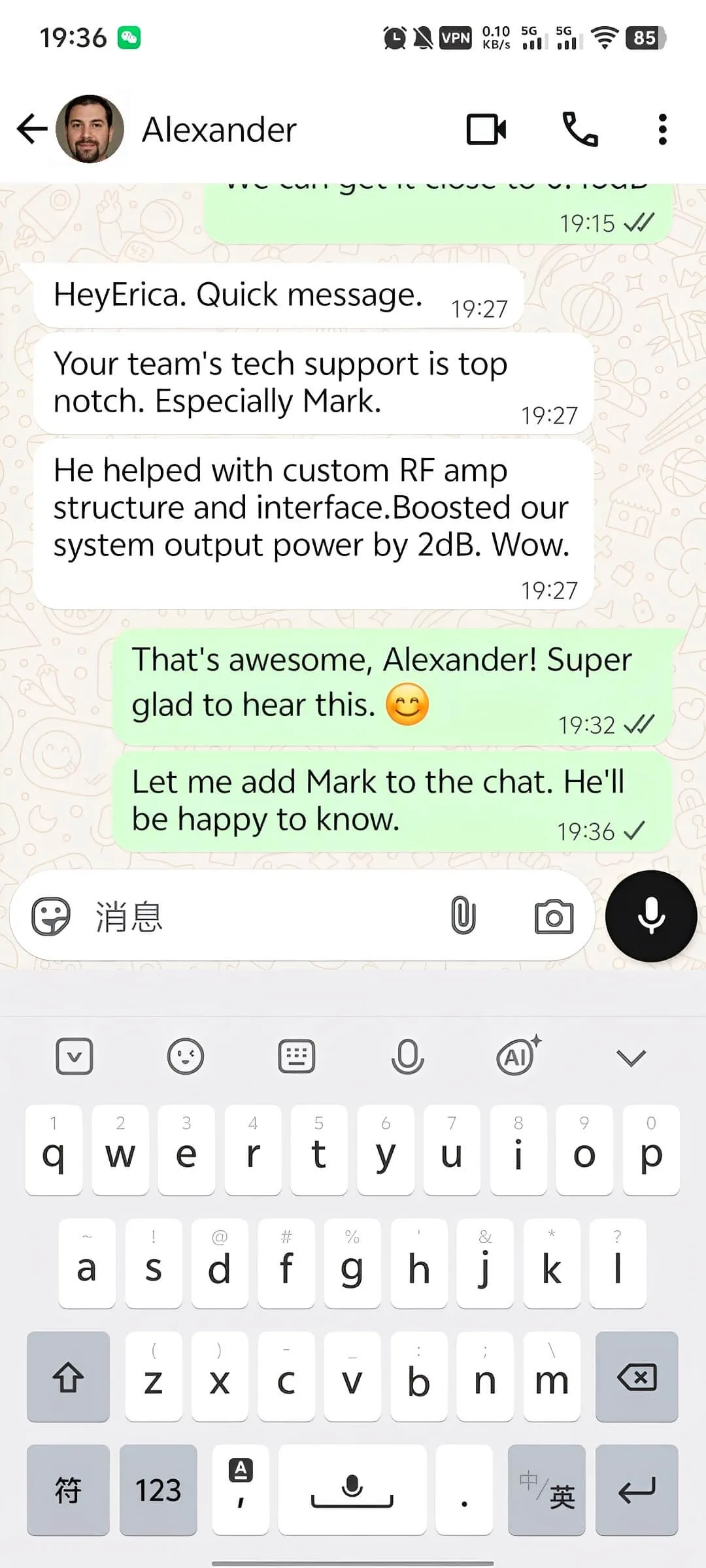

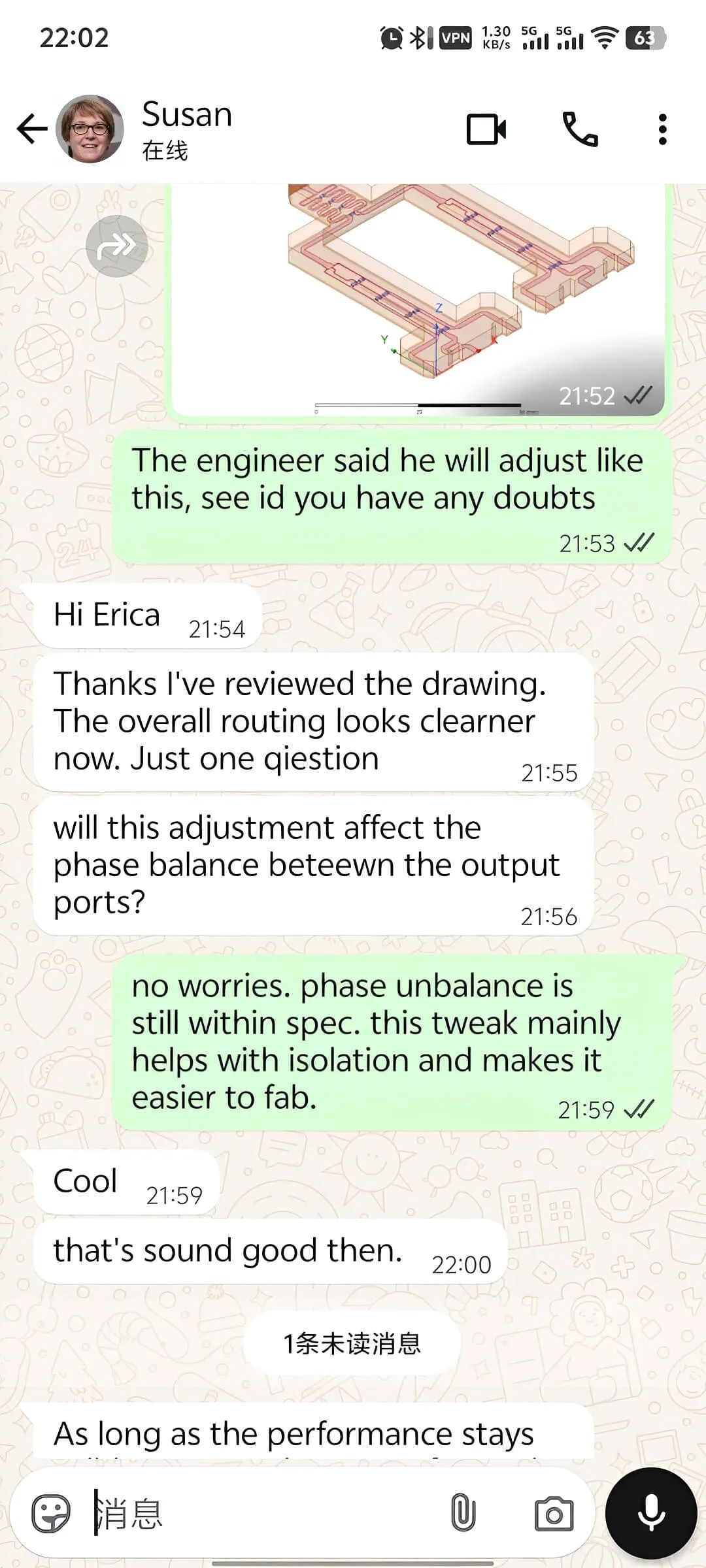

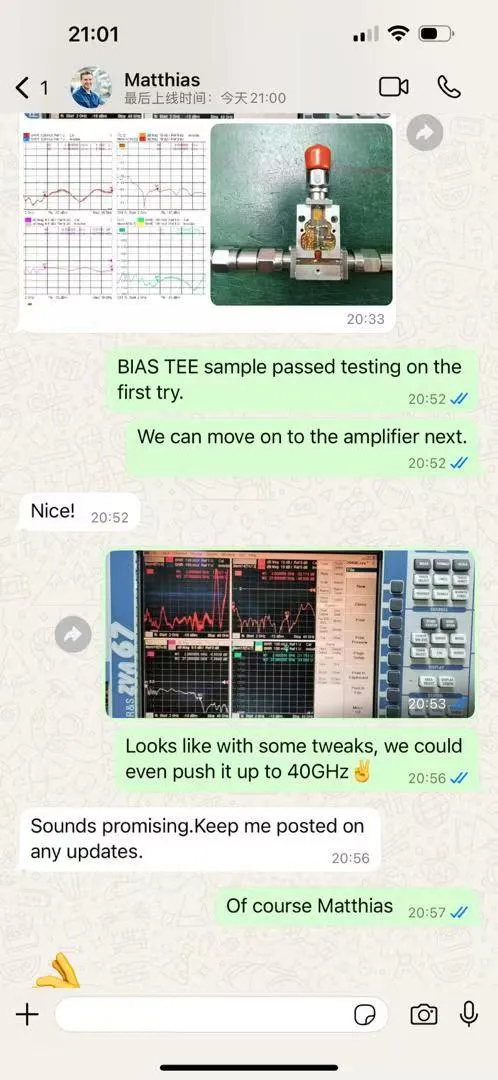

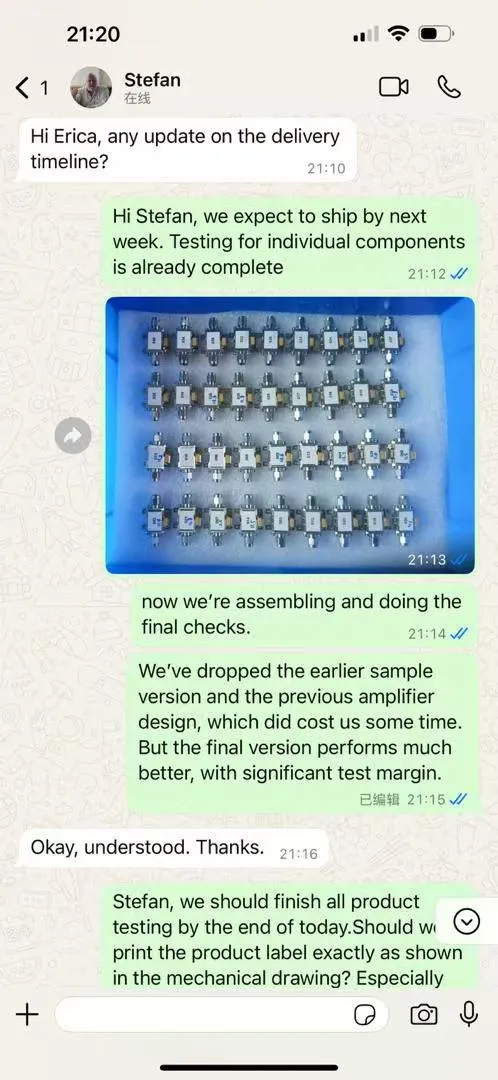

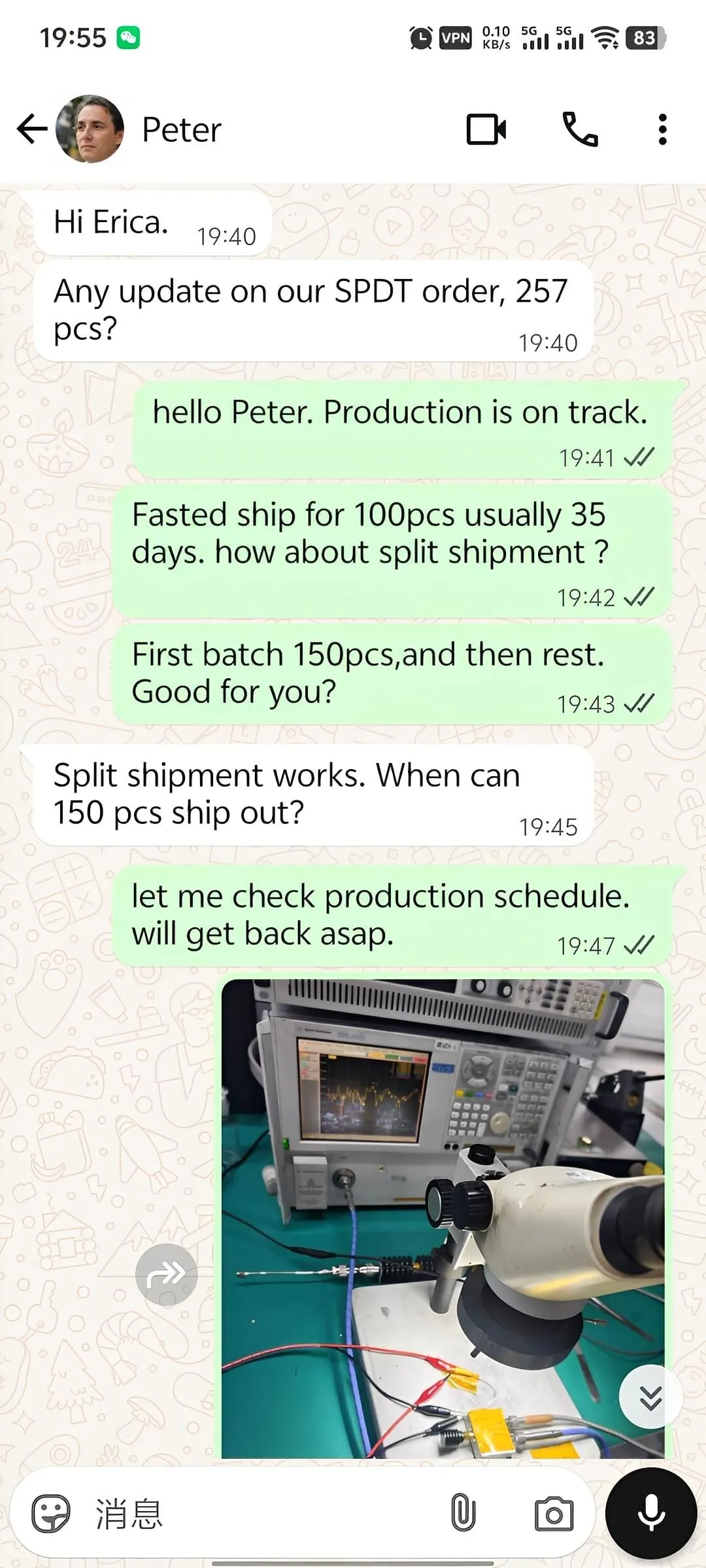

Testimonial
What they say about us
Testimonial
What they say about us
We Support Different Types of Buyers
Tailored for Leading Wireless Communication System Manufacturer
High-Power C-Band Transmitter
Safari MW developed a 3000W C-band solid-state power amplifier for the high-power transmitter of a leading wireless communication systems manufacturer.
Engineered to perform reliably under extreme day-night temperature variations in mountainous regions, the solution ensures consistent output, meeting strict stability and durability requirements.
Tailored for National telecom operator
5G Base Station Optimization
Safari MW’s broadband low-noise amplifiers, covering 410 MHz to 6000 MHz, are integrated into 5G outdoor base stations.
They ensure stable, reliable performance across wide frequency ranges and demanding outdoor conditions.
Tailored for National Meteorological Agency
Dual-Band SSPA Module for Meteorological Radar
Safari MW developed a custom amplification module for the National Meteorological Bureau’s dual-frequency radar, integrating Ka- and W-band SSPAs with 50W peak output.
With advanced thermal management and a compact design, the module ensures stable, reliable performance during extended outdoor operation.
Tailored for Testing Lab
Multi-Channel Signal Generator for Precision RF Testing and Research
Safari MW’s 16-way power divider delivers outstanding amplitude and phase consistency, ideal for multi-channel coherent signal generators.
Covering DC to 18 GHz, it maintains amplitude variation within 0.5 dB between channels, ensuring signal integrity in complex test environments.
Tailored for Defense Contractors
Real-time Polarization Switching Link for Transmitted Signals
Safari MW’s custom RF switch handles 100W continuous transmission with an ultra-fast 20 ns switching time.
Available in X, Ku, and Ka bands, it is designed for defense contractors requiring frequent polarization switching under high-power signal conditions.
The solution delivers speed, power, and precision—tailored for mission-critical performance.
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
Yes, our amplifiers can be tailored in gain, power (up to 3000W), and control types (RS485, LAN, USB, etc.) to meet your needs.
All products comply with CE and RoHS standards. Military-grade and aerospace versions are available upon request.
Standard units ship in 3-4 weeks. Custom models typically take 2-3 months depending on complexity.
Yes. We integrate active PFC circuits (compatible 85-265VAC) and surge protection up to 6kV. For DC models, voltage ripple tolerance reaches ±15% with built-in voltage stabilization. Customizable DC input ranges (e.g. 12-48V) are available upon request. All units undergo EN 61000-4-11 power disturbance tests.
Our amplifiers feature robust thermal management and conformally sealed PCBs, maintaining specified performance within -55°C to +85°C and 95% RH non-condensing. Critical parameters like gain drift are controlled within ±0.1dB/°C. We conduct 72-hour stress tests under IEC 60068-2 environmental standards to ensure reliability.
Absolutely. We provide global after-sales support, including integration guidance and failure diagnostics.
Looking for a reliable RF component supplier you can count on?
Custom RF components. Reliable delivery. Factory-direct support.
Get Samples Now !
Fast response. Low MOQ. Samples shipped within days.
Wideband Millimeter-Wave Power Amplifiers Data Sheet
| Part # | Frequency (GHz) | Saturated Power (dBm Typ.) | Gain (dB Typ.) | Voltage (V) | Input Port | Output Port |
|---|---|---|---|---|---|---|
| WMWPA-40G60G-17-A | 40-60 | 17 | 14 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-40G60G-20-A | 40-60 | 20 | 17 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-26-A | 50-60 | 26 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-29-A | 50-60 | 29 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G75G-17-A | 50-75 | 17 | 16 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-50G75G-29-A | 50-75 | 29 | 15 | 16 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-52G72G-27-A | 52-72 | 27 | 12.5 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-55G85G-20-A | 55-85 | 20 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-23-A | 71-76 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-26-A | 71-76 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-29-A | 71-76 | 29 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-23-A | 71-86 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-26-A | 71-86 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-29-A | 71-86 | 29 | 14 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-17-A | 60-90 | 17 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-20-A | 60-90 | 20 | 13 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-81G86G-27-A | 81-86 | 27 | 19 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-82G88G-25-A | 82-88 | 25 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-23-A | 80-90 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-26-A | 80-90 | 26 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-29-A | 80-90 | 29 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-23-A | 90-100 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-26-A | 90-100 | 26 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-29-A | 90-100 | 29 | 10 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-17-A | 75-110 | 17 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-20-A | 75-110 | 20 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-22-A | 75-110 | 22 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G130G-18-A | 80-130 | 18 | 13 | 12 | WR9-UG387/UM | WR9-UG387/UM |
| WMWPA-80G130G-21-A | 80-130 | 21 | 13 | 12 | WR8-UG387/UM | WR8-UG387/UM |
High Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (W) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| HSPA-30M500M-A | 0.03 | 0.5 | ≥500 | ≥57 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-30M1G-A | 0.03 | 1 | ≥300 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-500M3G-A | 0.5 | 3 | ≥300 | ≥47 | <±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-1G2G-A | 1 | 2 | ≥300 | ≥47 | <±1.2 | ≤2 | -60 | SMA-Female |
| HSPA-1G2G-B | 1 | 2 | ≥1000 | ≥45 | <±1.5 | ≤2 | -60 | WR-650 |
| HSPA-2G4G-A | 2 | 4 | ≥300 | ≥47 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| HSPA-2G4G-B | 2 | 4 | ≥1000 | ≥45 | ≤±1.5 | ≤2 | -60 | WR-284 |
| HSPA-2G6G-A | 2 | 6 | ≥200 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-2G6G-B | 2 | 6 | ≥30 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-2G6G-C | 2 | 6 | ≥100 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-1G6G-A | 1 | 6 | ≥100 | ≥47 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G7G-A | 6 | 7 | ≥100 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-B | 6 | 7 | ≥200 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-C | 6 | 7 | ≥400 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-D | 6 | 7 | ≥1000 | ≥60 | ≤±1.5 | ≤1.5 | -60 | WR-137 |
| HSPA-6G7G-E | 6 | 7 | ≥3000 | ≥70 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-4G8G-A | 4 | 8 | ≥1000 | ≥45 | <±2.0 | ≤2 | -60 | WR-137 |
| HSPA-2G8G-A | 2 | 8 | ≥100 | ≥47 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G12G-A | 6 | 12 | ≥100 | ≥47 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-8G12G-A | 8 | 12 | ≥100 | ≥47 | <±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-8G12G-B | 8 | 12 | ≥1000 | ≥45 | <±2.0 | ≤2 | -60 | WR-90 |
| HSPA-12G15G-A | 12 | 15 | ≥1000 | ≥45 | ≤±2.0 | ≤2 | -60 | WR-62 |
| HSPA-12G16G-A | 12 | 16 | ≥100 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-14G15G-A | 14 | 15 | ≥100 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-14G15G-B | 14 | 15 | ≥200 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-14G15G-C | 14 | 15 | ≥400 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-15G18G-A | 15 | 18 | ≥1000 | ≥45 | ≤±2.0 | ≤2 | -60 | WR-75 |
| HSPA-6G18G-A | 6 | 18 | ≥100 | ≥45 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G18G-B | 6 | 18 | ≥50 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-6G18G-C | 6 | 18 | ≥100 | ≥50 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-22G27G-A | 22 | 27 | ≥30 | ≥45 | ≤±1.5 | ≤2 | -60 | WR-42 |
| HSPA-26G30G-A | 26 | 30 | ≥50 | ≥50 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-29G31G-A | 29 | 31 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-29G31G-B | 29 | 31 | ≥80 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-29G31G-C | 29 | 31 | ≥300 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-30G33G-A | 30 | 33 | ≥30 | ≥43 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-33G37G-A | 33 | 37 | ≥300 | ≥40 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-26.5G40G-A | 26.5 | 40 | ≥30 | ≥43 | ≤±3.0 | ≤2 | -60 | WR-28 |
Medium Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (dBm) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| MSPA-30M500M-A | 0.03 | 0.5 | ≥43 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-30M1G-A | 0.03 | 1 | ≥43 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-500M3G-A | 0.5 | 3 | ≥43 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-1G2G-A | 1 | 2 | ≥43 | ≥40 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| MSPA-2G4G-A | 2 | 4 | ≥43 | ≥40 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| MSPA-2G6G-A | 2 | 6 | ≥43 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-2G6G-B | 2 | 6 | ≥43 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-4G8G-A | 4 | 8 | ≥40 | ≥40 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G7G-B | 6 | 7 | ≥43 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-2G8G-A | 2 | 8 | ≥40 | ≥40 | <士2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G12G-A | 6 | 12 | ≥40 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-8G12G-A | 8 | 12 | ≥40 | ≥40 | <±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-12G16G-A | 12 | 16 | ≥40 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-14G15G-A | 14 | 15 | ≥39 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-14G15G-B | 14 | 15 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-14G15G-C | 14 | 15 | ≥45 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-6G18G-A | 6 | 18 | ≥40 | ≥35 | <±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G18G-B | 6 | 18 | ≥45 | ≥45 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-2G18G-A | 2 | 18 | ≥40 | ≥35 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-2G18G-B | 2 | 18 | ≥39 | ≥40 | ≤±4.0 | ≤2 | -60 | SMA-Female |
| MSPA-22G27G-A | 22 | 27 | ≥37 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-26G30G-A | 26 | 30 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-29G31G-A | 29 | 31 | ≥38 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-29G31G-B | 29 | 31 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-29G31G-C | 29 | 31 | ≥44 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-30G33G-A | 30 | 33 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-26.5G40G-A | 26.5 | 40 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-18G40G-A | 18 | 40 | ≥40 | ≥35 | <±3.0 | ≤2 | -60 | 2.92mm-Female |
Low Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (dBm) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| LSPA-30M500M-A | 0.03 | 0.5 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-30M1G-A | 0.03 | 1 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-500M3G-A | 0.5 | 3 | ≥33 | ≥30 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-1G2G-A | 1 | 2 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G4G-A | 2 | 4 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G6G-A | 2 | 6 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-4G8G-A | 4 | 8 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G8G-A | 2 | 8 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-6G10G-A | 6 | 10 | ≥33 | ≥30 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-8G12G-A | 8 | 12 | ≥33 | ≥35 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-12G18G-A | 12 | 18 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-6G18G-A | 6 | 18 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-2G18G-A | 2 | 18 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-100M18G-A | 0.1 | 18 | ≥31 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-18G27G-A | 18 | 27 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-18G26.5G-A | 18 | 26.5 | ≥30 | ≥30 | ≤±2.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-26G40G-A | 26 | 40 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-30G33G-A | 30 | 33 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-32G37G-A | 32 | 37 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-18G40G-A | 18 | 40 | ≥30 | ≥30 | ≤±3.0 | ≤2 | -60 | 2.92mm-Female |
Narrowband Low Noise Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) Typ. | Gain Flatness (dB) Typ. | NF (dB) | P1dB (dBm) | VSWR (:1) | Current@6.5～12V (mA) | Connector |
|---|---|---|---|---|---|---|---|---|---|
| LNA-20-400M700M-A | 0.4 | 0.7 | 20 | ±0.5 | <0.6 | >15 | <1.5 | <100 | SMA |
| LNA-40-400M700M-A | 0.4 | 0.7 | 40 | ±0.5 | <0.8 | >15 | <1.5 | <130 | SMA |
| LNA-20-800M1000M-A | 0.8 | 1 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-800M1000M-A | 0.8 | 1 | 40 | ±0.5 | <0.6 | >15 | <1.3 | <150 | SMA |
| LNA-20-1G1.4G-A | 1 | 1.4 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1G1.4G-A | 1 | 1.4 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-1.4G1.8G-A | 1.4 | 1.8 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1.4G1.8G-A | 1.4 | 1.8 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-1.8G2.3G-A | 1.8 | 2.3 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1.8G2.3G-A | 1.8 | 2.3 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-2.3G3G-A | 2.3 | 3 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-2.3G3G-A | 2.3 | 3 | 40 | ±0.5 | <1.0 | >15 | <1.3 | <130 | SMA |
| LNA-20-3G3.5G-A | 3 | 3.5 | 20 | ±0.5 | <0.7 | >15 | <1.5 | <100 | SMA |
| LNA-40-3G3.5G-A | 3 | 3.5 | 40 | ±0.5 | <1.0 | >15 | <1.5 | <130 | SMA |
| LNA-20-3.5G4.2G-A | 3.5 | 4.2 | 20 | ±0.5 | <0.8 | >13 | <1.5 | <100 | SMA |
| LNA-40-3.5G4.2G-A | 3.5 | 4.2 | 40 | ±0.5 | <1.0 | >15 | <1.2 | <130 | SMA |
| LNA-20-4.2G4.7G-A | 4.2 | 4.7 | 20 | ±0.5 | <0.8 | >15 | <1.5 | <120 | SMA |
| LNA-40-4.2G4.7G-A | 4.2 | 4.7 | 40 | ±0.5 | <1.0 | >15 | <1.2 | <150 | SMA |
| LNA-20-4.7G5.7G-A | 4.7 | 5.7 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <120 | SMA |
| LNA-40-4.7G5.7G-A | 4.7 | 5.7 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <150 | SMA |
| LNA-20-5.7G6.5G-A | 5.7 | 6.5 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <100 | SMA |
| LNA-40-5.7G6.5G-A | 5.7 | 6.5 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <130 | SMA |
| LNA-20-6.6G8.4G-A | 6.6 | 8.4 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <100 | SMA |
| LNA-40-6.6G8.4G-A | 6.6 | 8.4 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <130 | SMA |
| LNA-20-8.4G10.5G-A | 8.4 | 10.5 | 20 | ±0.5 | <1.3 | >13 | <1.3 | <100 | SMA |
| LNA-40-8.4G10.5G-A | 8.4 | 10.5 | 40 | ±0.5 | <1.5 | >13 | <1.2 | <130 | SMA |
| LNA-20-10.5G12.5G-A | 10.5 | 12.5 | 20 | ±0.5 | <1.3 | >13 | <1.3 | <100 | SMA |
| LNA-40-10.5G12.5G-A | 10.5 | 12.5 | 40 | ±0.5 | <1.5 | >13 | <1.2 | <130 | SMA |
| LNA-20-12.5G14G-A | 12.5 | 14 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | SMA |
| LNA-40-12.5G14G-A | 12.5 | 14 | 40 | ±0.5 | <1.8 | >13 | <1.2 | <130 | SMA |
| LNA-20-14G16G-A | 14 | 16 | 20 | ±0.5 | <1.2 | >13 | <1.3 | <100 | SMA |
| LNA-40-14G16G-A | 14 | 16 | 40 | ±0.5 | <1.3 | >13 | <1.2 | <130 | SMA |
| LNA-20-16G18G-A | 16 | 18 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | SMA |
| LNA-40-16G18G-A | 16 | 18 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <130 | SMA |
| LNA-20-18G22G-A | 18 | 22 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | 2.92 |
| LNA-40-18G22G-A | 18 | 22 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <130 | 2.92 |
| LNA-20-22G25G-A | 22 | 25 | 20 | ±0.5 | <2.5 | >13 | <1.3 | <120 | 2.92 |
| LNA-40-22G25G-A | 22 | 25 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <150 | 2.92 |
| LNA-20-29G31G-A | 29 | 31 | 20 | ±0.5 | <2.5 | >10 | <1.5 | <120 | 2.92 |
| LNA-40-29G31G-A | 29 | 31 | 40 | ±0.5 | <2.5 | >10 | <1.2 | <150 | 2.92 |
| LNA-20-31G34G-A | 31 | 34 | 20 | ±0.75 | <2.5 | >13 | <1.8 | <120 | 2.92 |
| LNA-40-31G34G-A | 31 | 34 | 40 | ±0.5 | <3.0 | >13 | <1.2 | <150 | 2.92 |
| LNA-20-34G38G-A | 34 | 38 | 20 | ±0.75 | <2.5 | >10 | <1.8 | <120 | 2.92 |
| LNA-40-34G38G-A | 34 | 38 | 40 | ±0.5 | <3.0 | >10 | <1.2 | <150 | 2.92 |
| LNA-20-38G40G-A | 38 | 40 | 20 | ±1 | <3.2 | >10 | <1.8 | <120 | 2.92 |
| LNA-40-38G40G-A | 38 | 40 | 40 | ±0.5 | <3.5 | >10 | <1.2 | <150 | 2.92 |
Wideband Low Noise Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) Typ. | Gain Flatness (dB) Typ. | NF (dB) | P1dB (dBm) | VSWR (:1) | Current@6.5～12V (mA) | Connector |
|---|---|---|---|---|---|---|---|---|---|
| WLNA-20-100M1G-A | 0.1 | 1 | 20 | ±1.00 | <0.8 | >15 | <1.5 | <100 | SMA |
| WLNA-40-100M1G-A | 0.1 | 1 | 40 | ±1.00 | <1.0 | >15 | <1.5 | <130 | SMA |
| WLNA-20-800M2G-A | 0.8 | 2 | 20 | ±0.75 | <1.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-800M2G-A | 0.8 | 2 | 40 | ±1.00 | <1.0 | >15 | <1.5 | <150 | SMA |
| WLNA-20-500M3G-A | 0.5 | 3 | 20 | ±1.00 | <1.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-500M3G-A | 0.5 | 3 | 40 | ±1.25 | <1.0 | >15 | <1.5 | <130 | SMA |
| WLNA-20-2G4G-A | 2 | 4 | 20 | ±1.00 | <1.2 | >15 | <1.5 | <100 | SMA |
| WLNA-40-2G4G-A | 2 | 4 | 40 | ±1.00 | <1.4 | >15 | <1.5 | <130 | SMA |
| WLNA-20-3G5G-A | 3 | 5 | 20 | ±1.50 | <1.8 | >15 | <1.5 | <100 | SMA |
| WLNA-40-3G5G-A | 3 | 5 | 40 | ±1.50 | <1.8 | >15 | <1.5 | <130 | SMA |
| WLNA-20-2G6G-A | 2 | 6 | 20 | ±2.00 | <2.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-2G6G-A | 2 | 6 | 40 | ±2.50 | <2.5 | >15 | <1.5 | <130 | SMA |
| WLNA-20-500M6G-A | 0.5 | 6 | 20 | ±2.00 | <1.5 | >15 | <1.8 | <100 | SMA |
| WLNA-40-500M6G-A | 0.5 | 6 | 40 | ±2.50 | <2.0 | >15 | <1.8 | <130 | SMA |
| WLNA-20-2G8G-A | 2 | 8 | 20 | ±2.00 | <0.8 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G8G-A | 2 | 8 | 40 | ±2.50 | <1.0 | >15 | <1.8 | <130 | SMA |
| WLNA-20-6G12G-A | 6 | 12 | 20 | ±1.50 | <1.8 | >15 | <1.8 | <120 | SMA |
| WLNA-40-6G12G-A | 6 | 12 | 40 | ±2.00 | <2.2 | >15 | <1.8 | <150 | SMA |
| WLNA-20-8G12G-A | 8 | 12 | 20 | ±1.00 | <2.0 | >15 | <1.8 | <120 | SMA |
| WLNA-40-8G12G-A | 8 | 12 | 40 | ±1.50 | <2.2 | >15 | <1.8 | <150 | SMA |
| WLNA-20-12G18G-A | 12 | 18 | 20 | ±1.50 | <2.5 | >15 | <1.8 | <100 | SMA |
| WLNA-40-12G18G-A | 12 | 18 | 40 | ±2.00 | <2.8 | >15 | <1.8 | <130 | SMA |
| WLNA-20-6G18G-A | 6 | 18 | 20 | ±2.00 | <2.5 | >15 | <1.8 | <100 | SMA |
| WLNA-30-6G18G-A | 6 | 18 | 30 | ±1.00 | <2.0 | >15 | <1.8 | <200 | SMA |
| WLNA-40-6G18G-A | 6 | 18 | 40 | ±2.20 | <2.8 | >15 | <1.8 | <130 | SMA |
| WLNA-20-2G12G-A | 2 | 12 | 20 | ±2.00 | <2.5 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G12G-A | 2 | 12 | 40 | ±2.20 | <3.0 | >13 | <1.8 | <130 | SMA |
| WLNA-20-2G18G-A | 2 | 18 | 20 | ±2.00 | <1.3 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G18G-A | 2 | 18 | 40 | ±2.20 | <1.5 | >13 | <1.8 | <130 | SMA |
| WLNA-20-1G18G-A | 1 | 18 | 20 | ±2.00 | <1.8 | >13 | <1.8 | <100 | SMA |
| WLNA-30-1G18G-A | 1 | 18 | 30 | ±1.50 | <2.5 | >15 | <2.0 | <200 | SMA |
| WLNA-40-1G18G-A | 1 | 18 | 40 | ±2.20 | <1.8 | >13 | <1.8 | <130 | SMA |
| WLNA-20-100M20G-A | 0.1 | 20 | 20 | ±2.00 | <2.5 | >13 | <2.0 | <100 | SMA |
| WLNA-40-100M20G-A | 0.1 | 20 | 40 | ±2.50 | <3.0 | >13 | <2.0 | <130 | SMA |
| WLNA-20-18G40G-A | 18 | 40 | 20 | ±2.00 | <1.8 | >13 | <1.8 | <100 | 2.92 |
| WLNA-30-18G40G-A | 18 | 40 | 30 | ±2.00 | <3.5 | >13 | <2.2 | <200 | 2.92 |
| WLNA-40-18G40G-A | 18 | 40 | 40 | ±2.20 | <2.0 | >13 | <2.0 | <130 | 2.92 |
| WLNA-20-1G40G-A | 1 | 40 | 20 | ±2.00 | <2.5 | >13 | <2.0 | <100 | 2.92 |
| WLNA-40-1G40G-A | 1 | 40 | 40 | ±2.20 | <3.0 | >13 | <2.0 | <130 | 2.92 |
| WLNA-20-100M40G-A | 0.1 | 40 | 20 | ±2.00 | <4.0 | >13 | <2.5 | <120 | 2.92 |
| WLNA-40-100M40G-A | 0.1 | 40 | 40 | ±3.00 | <4.0 | >13 | <2.5 | <150 | 2.92 |
| WLNA-18-50G75G-A | 50 | 75 | 18 | ±2.00 | <2.5 | >-3 | <2.0 | <150 | WR-15(UG-385/U-M) |
| WLNA-18-75G110G-A | 75 | 110 | 18 | ±2.00 | <4.0 | >0 | <2.0 | <150 | WR-15(UG-385/U-M) |
Wideband Limiting Amplifier Data Sheet
| Part # | Frequency Range (GHz) | Dynamic Range (dBm) | Temperature Compensation Range | Noise Figure (dB) | Limiting Output (dBm) | VSWR | Operating Voltage/Current (@6.5~12V, mA) |
|---|---|---|---|---|---|---|---|
| LA-100M800M-A | 0.1~0.8 | -70~+10 | ±1.5 | ＜4 | 10±2 | ＜2 | ＜400 |
| LA-800M2G-A | 0.8~2 | -70~+10 | ±1.5 | ＜4 | 10±2 | ＜2 | ＜400 |
| LA-2G4G-A | 2~4 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2 | ＜500 |
| LA-2G6G-A | 2~6 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2 | ＜500 |
| LA-500M6G-A | 0.5~6 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2.5 | ＜500 |
| LA-6G12G-A | 6~12 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜500 |
| LA-6G18G-A | 6~18 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜700 |
| LA-2G18G-A | 2~18 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜700 |
| LA-18G26.5G-A | 18~26.5 | -70~+10 | ±1.5 | ＜8 | 10±2 | ＜2 | ＜800 |
| LA-26G40G-A | 26~40 | -70~+10 | ±1.5 | ＜8 | 10±2 | ＜2 | ＜800 |
Linear Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) | NF (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Amplitude Unbalance (dB) Typ. | Phase Unbalance (deg) Typ. | P1dB (dBm) | Current@6.5～12V (A) | Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPA-30-6G18G-A | 6 | 18 | ≥30 | ≤5 | ±2 | ≤2.0 | ±0.5 | ±10 | ≥25 | 0.5 | SMA |
| LPA-30-1G20G-A | 1 | 20 | ≥30 | ≤5 | ±2 | ≤2.0 | ±0.5 | ±10 | ≥27 | 0.6 | SMA |
| LPA-30-33G37G-A | 33 | 37 | ≥30 | ≤5 | ±2.5 | ≤2.5 | ±1.5 | ±15 | ≥25 | 0.8 | 2.92 |
| LPA-30-18G40G-A | 18 | 40 | ≥30 | ≤5 | ±2.5 | ≤2.5 | ±1.5 | ±15 | ≥21 | 0.4 | 2.92 |
| LPA-15-30G40G-A | 30 | 40 | ≥15 | ≤5 | ±2 | ≤2.5 | ±0.5 | ±10 | ≥20 | 0.35 | 2.92 |
| LPA-30-30G40G-A | 30 | 40 | ≥30 | ≤8 | ±2 | ≤2.5 | ±1 | ±15 | ≥0 | 0.4 | 2.92 |
| LPA-40-30G40G-A | 30 | 40 | ≥40 | ≤7 | ±2 | ≤2.5 | ±1 | ±10 | ≥27 | 0.6 | 2.92 |
| LPA-18-40G60G-A | 40 | 60 | 18 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥8 | 0.4 | WR-19(UG-383/U-M) |
| LPA-18-50G75G-A | 50 | 75 | 18 | ≤2.5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-3 | 0.4 | WR-15(UG-385/U-M) |
| LPA-18-60G90G-A | 60 | 90 | 18 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥8 | 0.4 | WR-12(UG-387/U-M) |
| LPA-18-75G110G-A | 75 | 110 | 18 | ≤4 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥0 | 0.4 | WR-10(UG-387/U-M) |
| LPA-16-90G140G-A | 90 | 140 | 16 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-5 | 0.4 | WR-08(UG-387/U-M) |
| LPA-18-110G170G-A | 110 | 170 | 18 | ≤6 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-3 | 0.4 | WR-06(UG-387/U-M) |
Millimeter-Wave LNA Data Sheet
| Part # | Frequency (GHz) | Noise Figure (dB Max.) | Gain (dB Max.) | Voltage (V Min.) | Input/Output Ports |
|---|---|---|---|---|---|
| MWLNA-3-40G50G-A | 40-50 | 3 | 23 | 12 | WR22-UG383 |
| MWLNA-5-50G75G-A | 50-75 | 5 | 18 | 12 | WR15-UG387/UM |
| MWLNA-5-50G75G-A | 50-75 | 5 | 36 | 12 | WR15-UG387/UM |
| MWLNA-7-60G90G-A | 60-90 | 7 | 15 | 12 | WR12-UG387/UM |
| MWLNA-7-60G90G-A | 60-90 | 7 | 30 | 12 | WR12-UG387/UM |
| MWLNA-4-71G86G-A | 71-86 | 4 | 21 | 12 | WR12-UG387/UM |
| MWLNA-4-92G96G-A | 92-96 | 4 | 42.5 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 20 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 15 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 30 | 12 | WR10-UG387/UM |
| MWLNA-6-110G160G-A | 110-160 | 6 | 17 | 12 | WR6.5-UG387/UM |
Wideband Millimeter-Wave Power Amplifiers Data Sheet
| Part # | Frequency (GHz) | Saturated Power (dBm Typ.) | Gain (dB Typ.) | Voltage (V) | Input Port | Output Port |
|---|---|---|---|---|---|---|
| WMWPA-40G60G-17-A | 40-60 | 17 | 14 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-40G60G-20-A | 40-60 | 20 | 17 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-26-A | 50-60 | 26 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-29-A | 50-60 | 29 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G75G-17-A | 50-75 | 17 | 16 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-50G75G-29-A | 50-75 | 29 | 15 | 16 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-52G72G-27-A | 52-72 | 27 | 12.5 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-55G85G-20-A | 55-85 | 20 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-23-A | 71-76 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-26-A | 71-76 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-29-A | 71-76 | 29 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-23-A | 71-86 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-26-A | 71-86 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-29-A | 71-86 | 29 | 14 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-17-A | 60-90 | 17 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-20-A | 60-90 | 20 | 13 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-81G86G-27-A | 81-86 | 27 | 19 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-82G88G-25-A | 82-88 | 25 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-23-A | 80-90 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-26-A | 80-90 | 26 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-29-A | 80-90 | 29 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-23-A | 90-100 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-26-A | 90-100 | 26 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-29-A | 90-100 | 29 | 10 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-17-A | 75-110 | 17 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-20-A | 75-110 | 20 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-22-A | 75-110 | 22 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G130G-18-A | 80-130 | 18 | 13 | 12 | WR9-UG387/UM | WR9-UG387/UM |
| WMWPA-80G130G-21-A | 80-130 | 21 | 13 | 12 | WR8-UG387/UM | WR8-UG387/UM |
High Power Coaxial Pin Diode Switch
| Part # | Switch Type | RF Low (GHz) | RF High (GHz) | Absorbitive | Reflective | Insertion Loss (dB) Max. | RF Power (dBm) Max. | Isolation (dB) Min. | Transition Time (nsec) Typ. | VSWR (:1) Max. | Control |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPST-20M1G-A | SPST | 0.02 | 1.0 | Y | N | 0.8 | 30 | 70 | 50 | 1.4 | TTL |
| SPST-1G2G-A | SPST | 1.0 | 2.0 | Y | N | 1.2 | 30 | 70 | 50 | 1.4 | TTL |
| SPST-2G6G-A | SPST | 2.0 | 6.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.6 | TTL |
| SPST-8G12G-A | SPST | 8.0 | 12.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.6 | TTL |
| SPST-6G18G-A | SPST | 6.0 | 18.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.8 | TTL |
| SPST-18G26.5G-A | SPST | 18.0 | 26.5 | Y | N | 2.5 | 30 | 60 | 50 | 2.0 | TTL |
| SPST-26.5G40G-A | SPST | 26.5 | 40.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SPDT-20M1G-A | SPDT | 0.02 | 1.0 | Y | N | 1.0 | 30 | 70 | 50 | 1.4 | TTL |
| SPDT-1G2G-A | SPDT | 1.0 | 2.0 | Y | N | 1.2 | 30 | 70 | 50 | 1.4 | TTL |
| SPDT-2G6G-A | SPDT | 2.0 | 6.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.6 | TTL |
| SPDT-8G12G-A | SPDT | 8.0 | 12.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.6 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | N | Y | 2.3 | 30 | 60 | 100 | 1.8 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | N | Y | 2.4 | 30 | 60 | 100 | 1.8 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | Y | N | 3.6 | 27 | 80 | 100 | 2.0 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | Y | N | 3.6 | 27 | 80 | 100 | 2.0 | TTL |
| SPDT-6G18G-A | SPDT | 6.0 | 18.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.8 | TTL |
| SPDT-18G26.5G-A | SPDT | 18.0 | 26.5 | Y | N | 2.5 | 30 | 60 | 50 | 2.0 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | N | Y | 3.5 | 30 | 40 | 100 | 2.2 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | N | Y | 3.5 | 30 | 40 | 100 | 3.0 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | Y | N | 3.5 | 23 | 60 | 100 | 2.5 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | Y | N | 3.8 | 23 | 60 | 100 | 3.2 | TTL |
| SPDT-26.5G40G-A | SPDT | 26.5 | 40.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP3T-20M1G-A | SP3T | 0.02 | 1.0 | Y | N | 1.3 | 30 | 70 | 50 | 1.4 | TTL |
| SP3T-1G2G-A | SP3T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.4 | TTL |
| SP3T-2G6G-A | SP3T | 2.0 | 6.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.6 | TTL |
| SP3T-8G12G-A | SP3T | 8.0 | 12.0 | Y | N | 2.2 | 30 | 70 | 50 | 1.6 | TTL |
| SP3T-6G18G-A | SP3T | 6.0 | 18.0 | Y | N | 2.5 | 30 | 60 | 50 | 1.8 | TTL |
| SP3T-18G26.5G-A | SP3T | 18.0 | 26.5 | Y | N | 2.7 | 30 | 60 | 50 | 2.0 | TTL |
| SP3T-26.5G40G-A | SP3T | 26.5 | 40.0 | Y | N | 3.5 | 30 | 60 | 50 | 2.0 | TTL |
| SP4T-20M1G-A | SP4T | 0.02 | 1.0 | Y | N | 1.5 | 30 | 70 | 50 | 1.5 | TTL |
| SP4T-1G2G-A | SP4T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.5 | TTL |
| SP4T-2G6G-A | SP4T | 2.0 | 6.0 | Y | N | 2.4 | 30 | 70 | 50 | 1.8 | TTL |
| SP4T-8G12G-A | SP4T | 8.0 | 12.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | N | Y | 3.2 | 30 | 60 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | N | Y | 3.0 | 30 | 60 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | Y | N | 4.0 | 27 | 70 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | Y | N | 4.3 | 27 | 70 | 100 | 2.0 | TTL |
| SP4T-6G18G-A | SP4T | 6.0 | 18.0 | Y | N | 2.8 | 30 | 60 | 50 | 2.0 | TTL |
| SP4T-18G26.5G-A | SP4T | 18.0 | 26.5 | Y | N | 3.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | N | Y | 4.5 | 30 | 40 | 100 | 2.2 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | N | Y | 5.0 | 30 | 40 | 100 | 3.0 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | Y | N | 4.8 | 23 | 60 | 100 | 2.5 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | Y | N | 5.5 | 23 | 60 | 100 | 3.2 | TTL |
| SP4T-26.5G40G-A | SP4T | 26.5 | 40.0 | Y | N | 4.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 3.5 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 4.5 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 5.0 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 6.0 | 60 | 65 | 2.2 | TTL | |||
| SP5T-20M1G-A | SP5T | 0.02 | 1.0 | Y | N | 1.7 | 30 | 70 | 50 | 1.5 | TTL |
| SP5T-1G2G-A | SP5T | 1.0 | 2.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.5 | TTL |
| SP5T-2G6G-A | SP5T | 2.0 | 6.0 | Y | N | 2.8 | 30 | 70 | 50 | 1.8 | TTL |
| SP5T-8G12G-A | SP5T | 8.00 | 12.0 | Y | N | 2.8 | 30 | 70 | 50 | 1.8 | TTL |
| SP5T-6G18G-A | SP5T | 6.0 | 18.0 | Y | N | 2.8 | 30 | 60 | 50 | 2.0 | TTL |
| SP5T-18G26.5G-A | SP5T | 18.0 | 26.5 | Y | N | 3.2 | 30 | 60 | 50 | 2.2 | TTL |
| SP5T-26.5G40G-A | SP5T | 26.5 | 40.0 | Y | N | 4.2 | 30 | 60 | 50 | 2.2 | TTL |
| SP6T-20M1G-A | SP6T | 0.02 | 1.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.5 | TTL |
| SP6T-1G2G-A | SP6T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.5 | TTL |
| SP6T-2G6G-A | SP6T | 2.0 | 6.0 | Y | N | 2.4 | 30 | 70 | 50 | 1.8 | TTL |
| SP6T-8G12G-A | SP6T | 8.0 | 12.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | N | Y | 3.4 | 30 | 60 | 100 | 2.0 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | N | Y | 3.7 | 30 | 60 | 100 | 1.9 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | Y | N | 4.4 | 27 | 70 | 100 | 2.0 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | Y | N | 4.7 | 27 | 70 | 100 | 2.1 | TTL |
| SP6T-6G18G-A | SP6T | 6.0 | 18.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP6T-18G26.5G-A | SP6T | 18.0 | 26.5 | Y | N | 3.5 | 30 | 60 | 50 | 2.2 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | N | Y | 4.0 | 30 | 40 | 100 | 2.2 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | N | Y | 5.0 | 30 | 40 | 100 | 3.0 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | Y | N | 5.3 | 23 | 60 | 100 | 2.5 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | Y | N | 5.5 | 23 | 60 | 100 | 3.0 | TTL |
| SP6T-26.5G40G-A | SP6T | 26.5 | 40.0 | Y | N | 4.5 | 30 | 60 | 50 | 2.5 | TTL |
| SP8T-20M1G-A | SP8T | 0.02 | 1.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.5 | TTL |
| SP8T-1G2G-A | SP8T | 1.0 | 2.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.5 | TTL |
| SP8T-2G6G-A | SP8T | 2.0 | 6.0 | Y | N | 3.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP8T-8G12G-A | SP8T | 8.0 | 12.0 | Y | N | 3.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | N | Y | 4.0 | 30 | 60 | 100 | 2.0 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | N | Y | 4.2 | 30 | 60 | 100 | 1.9 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | Y | N | 4.5 | 27 | 70 | 100 | 2.0 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | Y | N | 5.0 | 27 | 70 | 100 | 2.2 | TTL |
| SP8T-6G18G-A | SP8T | 6.0 | 18.0 | Y | N | 4.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP8T-18G26.5G-A | SP8T | 18.0 | 26.5 | Y | N | 5.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | N | Y | 5.5 | 30 | 40 | 100 | 2.3 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | N | Y | 5.5 | 30 | 40 | 100 | 3.0 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | Y | N | 6.0 | 23 | 60 | 100 | 2.5 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | Y | N | 6.5 | 23 | 60 | 100 | 3.0 | TTL |
| SP8T-26.5G40G-A | SP8T | 26.5 | 40.0 | Y | N | 4.5 | 30 | 60 | 50 | 2.5 | TTL |
Electro-mechanical Relay Switch
| Part # | Switch Type | RF Low(GHz) | RF High(GHz) | Insertion Loss (dB) Max. | RF Power(dBm) Max. | Isolation(dB) Min. | Transition Time (msec) Typ. | VSWR (:1) Max. | Control | Mechanical Life(times) |
|---|---|---|---|---|---|---|---|---|---|---|
| SPDT-DC1G-A | SPDT | DC | 1 | 0.10 | 170 | 85 | 15 | 1.10 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-1G4G-A | SPDT | 1 | 4 | 0.15 | 90 | 80 | 15 | 1.15 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-4G8G-A | SPDT | 4 | 8 | 0.20 | 70 | 70 | 15 | 1.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-8G12G-A | SPDT | 8 | 12 | 0.30 | 50 | 65 | 15 | 1.30 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-12G18G-A | SPDT | 12 | 18 | 0.35 | 30 | 60 | 15 | 1.35 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-18G26.5G-A | SPDT | 18 | 26.5 | 0.50 | 25 | 55 | 15 | 1.50 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-26.5G40G-A | SPDT | 26.5 | 40 | 0.70 | 18 | 55 | 15 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-40G50G-A | SPDT | 40 | 50 | 0.80 | 15 | 50 | 15 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-50G67G-A | SPDT | 50 | 67 | 1.20 | 10 | 50 | 15 | 2.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SP3T-DC4G-A | SPDT | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP3T-4G8G-A | SPDT | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP3T-8G12.4G-A | SPDT | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP3T-12.4G18G-A | SPDT | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP3T-18G26.5G-A | SPDT | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP3T-26.5G40G-A | SPDT | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP3T-40G50G-A | SPDT | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP4T-DC4G-A | SP4T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP4T-4G8G-A | SP4T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP4T-8G12.4G-A | SP4T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP4T-12.4G18G-A | SP4T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP4T-18G26.5G-A | SP4T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP4T-26.5G40G-A | SP4T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP4T-40G50G-A | SP4T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP5T-DC4G-A | SP5T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP5T-4G8G-A | SP5T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP5T-8G12.4G-A | SP5T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP5T-12.4G18G-A | SP5T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP5T-18G26.5G-A | SP5T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP5T-26.5G40G-A | SP5T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP5T-40G50G-A | SP5T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP6T-DC4G-A | SP6T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP6T-4G8G-A | SP6T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP6T-8G12.4G-A | SP6T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP6T-12.4G18G-A | SP6T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP6T-18G26.5G-A | SP6T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP6T-26.5G40G-A | SP6T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP6T-40G50G-A | SP6T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP7T-DC4G-A | SP7T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP7T-4G8G-A | SP7T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP7T-8G12.4G-A | SP7T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP7T-12.4G18G-A | SP7T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP7T-18G26.5G-A | SP7T | 18 | 26.5 | 0.70 | 25 | 55 | 15 | 1.70 | TTL | 2 millions |
| SP8T-DC4G-A | SP8T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP8T-4G8G-A | SP8T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP8T-8G12.4G-A | SP8T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP8T-12.4G18G-A | SP8T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP8T-18G26.5G-A | SP8T | 18 | 26.5 | 0.70 | 25 | 55 | 15 | 1.70 | TTL | 2 millions |
| SP9T-DC4G-A | SP9T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP9T-4G8G-A | SP9T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP9T-8G12.4G-A | SP9T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP9T-12.4G18G-A | SP9T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP10T-DC4G-A | SP10T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP10T-4G8G-A | SP10T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP10T-8G12.4G-A | SP10T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP10T-12.4G18G-A | SP10T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| DPDT-DC1G-A | DPDT | DC | 1 | 0.10 | 280 | 85 | 20 | 1.10 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-1G4G-A | DPDT | 1 | 4 | 0.20 | 150 | 80 | 20 | 1.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-4G8G-A | DPDT | 4 | 8 | 0.30 | 100 | 70 | 20 | 1.30 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-8G12.4G-A | DPDT | 8 | 12.4 | 0.40 | 80 | 65 | 20 | 1.40 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-12.4G18G-A | DPDT | 12.4 | 18 | 0.50 | 60 | 60 | 20 | 1.50 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-18G26.5G-A | DPDT | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-26.5G40G-A | DPDT | 26.5 | 40 | 0.80 | 18 | 55 | 20 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-40G50G-A | DPDT | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
High Power Divider
| Part # | No. of Ways | RF Low (GHz) | RF High (GHz) | Insertion Loss (dB) Max. | VSWR (:1) Max. | Isolation (dB) Min. | RF Power (dBm) Max. | Amplitude Unbalance (dB) Max. | Phase Unbalance (deg) Max. | Connector |
|---|---|---|---|---|---|---|---|---|---|---|
| HPD-2-10M1G-A | 2 | 0.01 | 1 | 0.3 | 1.3 | 25 | 60 | 0.3 | 4 | N-Female |
| HPD-2-500M2G-A | 2 | 0.5 | 2 | 0.3 | 1.2 | 25 | 57 | 0.3 | 4 | SMA-Female |
| HPD-2-2G4G-A | 2 | 2 | 4 | 0.5 | 1.5 | 25 | 57 | 0.5 | 5 | SMA-Female |
| HPD-2-4G6G-A | 2 | 4 | 6 | 0.6 | 1.5 | 20 | 57 | 0.5 | 5 | SMA-Female |
| HPD-2-8G12G-A | 2 | 8 | 12 | 0.6 | 1.5 | 18 | 53 | 0.8 | 10 | SMA-Female |
| HPD-2-6G18G-A | 2 | 6 | 18 | 1 | 1.5 | 18 | 50 | 0.8 | 10 | SMA-Female |
High Power Directional Coupler
| Part# | Frequency Range | Power Handling (Incident) | Power Handling (Reflected) | VSWR | Coupling Factor | Coupling Sensitivity | Directivity | Insertion Loss (Excl. Coupling Loss) | Port Connectors |
|---|---|---|---|---|---|---|---|---|---|
| TDC0306H30 | 0.3~0.6GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±1.0dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0306H30 | 0.3~0.6GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0410A30H | 0.4~1GHz | ≤100Watt | ≤10Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥15dB | ≤0.4dB (0.01dB) | SMA-Female |
| TDC0420A30H | 0.4~2GHz | ≤100Watt | ≤10Watt | ≤1.20:1 | ≤30±1dB | ≤±1dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0404H30 | 0.42~0.45GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0512A40DH | 0.5~1.2GHz | ≤120Watt | ≤120Watt | ≤1.25:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0530N30H | 0.5~3.0GHz | ≤100Watt | ≤100Watt | ≤1.30:1 | ≤30±1dB | ≤±1dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC0530H20 | 0.5~3.0GHz | ≤100Watt | ≤50Watt | ≤1.30:1 | ≤20±1.0dB | ≤±1.0dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560N20H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±0.8dB | ≥18dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560N20DH | 0.5~6.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0560N30H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤30±1dB | ≤±0.8dB | ≥18dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0560N20H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±0.8dB | ≥18dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560H40AB | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1dB | ≤±1.2dB | ≥15dB | ≤0.5dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0560H40 | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0560H30AB | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤30±1dB | ≤±1.2dB | ≥15dB | ≤0.5dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0580N20H | 0.5~8.0GHz | ≤150Watt | ≤10Watt | ≤1.40:1 | ≤20±1dB | ≤±1.0dB | ≥12dB | ≤0.7dB (0.04dB) | N-Female |
| TDC0580N20DH | 0.5~8.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0580N30H | 0.5~8.0GHz | ≤120Watt | ≤50Watt | ≤1.50:1 | ≤30±1.0dB | ≤±1.0dB | ≥12dB | ≤0.7dB (0.46dB) | N-Female |
| TDC0580H40 | 0.5~8.0GHz | ≤200Watt | ≤200Watt | ≤1.50:1 | ≤40±1.5dB | ≤±1.8dB | ≥10dB | ≤0.5dB (0.01dB) | N-Female |
| TDC05180N30H | 0.5~18GHz | ≤100Watt | ≤100Watt | ≤1.50:1 | ≤30±1.5dB | ≤±1.5dB | ≤1.2dB (0.01dB) | N-Female | |
| TDC0660N30H | 0.6~6.0GHz | ≤100Watt | ≤50Watt | ≤1.30:1 | ≤30±1dB | ≤±1dB | ≥15dB | ≤0.6dB (0.01dB) | N-Female |
| TDC0660H40AB | 0.6~6.0GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0660N20H | 0.6~6.0GHz | ≤100Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0660N20HA | 0.6~6.0GHz | ≤100Watt | ≤10Watt | ≤1.35:1 | ≤20±1dB | ≤±1.2dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0660N20DH | 0.6~6.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0660H40 | 0.6~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | N-Female |
| TDC0680H40A | 0.6~8GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±2.5dB | ≤±2dB | ≥15dB | ≤0.4dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0727A40DH | 0.7~2.7GHz | ≤120Watt | ≤120Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0780N20DH | 0.7~8GHz | ≤100Watt | ≤100Watt | ≤1.30:1 | ≤21±1dB@0.7-1GHz; ≤20±1dB@1-8GHz | ≤±2dB@0.7-1GHz; ≤±1dB@1-8GHz | ≥12dB | ≤0.7dB (0.08dB) | N-Female |
| TDC0825N6H | 0.8~2.5GHz | ≤100Watt | ≤2Watt | ≤1.20:1 | ≤6±1dB | ≤±1.0dB | ≥20dB | ≤0.5dB (1.26dB) | N-Female |
| TDC0840H20 | 0.8~4.0GHz | ≤400Watt | ≤50Watt | ≤1.25:1 | ≤20±0.7dB | ≤±0.7dB | ≥20dB | ≤0.3dB (0.04dB) | N-Female |
| TDC0860H40 | 0.8~6GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0909H30 | 0.914~0.916GHz | ≤300Watt | ≤50Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥22dB | ≤0.2dB (0.04dB) | N-Female |
| TDC0920H30 | 0.95~2GHz | ≤500Watt | ≤500Watt | ≤1.20:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.01dB) | N-Female |
| TDC0920H20 | 0.95~2GHz | ≤500Watt | ≤50Watt | ≤1.20:1 | ≤20±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1020N20H | 1~2GHz | ≤100Watt | ≤10Watt | ≤1.25:1 | ≤20±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1020H40 | 1~2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1020H40D | 1~2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1040H30 | 1~4GHz | ≤400Watt | ≤50Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥17dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1040H40AB | 1~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.5dB | ≥15dB | ≤0.3dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC1040H30DA | 1~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤30±1dB | ≤±1.2dB | ≥15dB | ≤0.3dB (0.01dB) | Primary: N-Female; Secondary: SMA-Female |
| TDC1060H40BM | 1~6GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | In: N-Male; Out: N-Female |
| TDC1060N30H | 1~6GHz | ≤120Watt | ≤120Watt | ≤1.30:1 | ≤30±1.0dB | ≤±0.8dB | ≥15dB | ≤0.5dB (0.01dB) | N-Female |
| TDC1060DH40MNB | 1~6GHz | ≤1000Watt | ≤1000Watt | ≤1.50:1 | ≤40±1.0dB | ≤±2.0dB | ≥6dB | ≤0.4dB (0.01dB) | Input:7/16-Male; Output:7/16-Female; Coupled:N-Female |
| TDC1060N30HC | 1~6GHz | ≤250Watt | ≤2Watt | ≤1.30:1 | ≤30±1.5dB | ≤±1.2dB | ≥12dB | ≤0.9dB (0.01dB) | N-Female |
| TDC1060H40D | 1~6GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC1060H40AB | 1~6GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC1117H50 | 1.1~1.7GHz | ≤400Watt | ≤400Watt | ≤1.30:1 | ≤50±1.0dB | ≤±1.0dB | ≥15dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1117H40 | 1.1~1.7GHz | ≤400Watt | ≤400Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1517N30H | 1.5~1.7GHz | ≤100Watt | ≤100Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.01dB) | N-Female |
| TDC1530DH40M | 1.5~3.0GHz | ≤1000Watt | ≤1000Watt | ≤1.30:1 | ≤40±1.0dB | ≤±0.5dB | ≥12dB | ≤0.2dB (0.01dB) | In: 7/16-Male; Out: 7/16-Female; Coupled: N-F |
| TDC2025N20H | 2.0~2.5GHz | ≤200Watt | ≤5Watt | ≤1.20:1 | ≤20±0.7dB | ≤±0.7dB | ≥22dB | ≤0.25dB (0.04dB) | N-Female |
| TDC2027H30 | 2.0~2.7GHz | ≤300Watt | ≤5Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.25dB (0.01dB) | N-Female |
| TDC2040H10 | 2~4GHz | ≤200Watt | ≤2Watt | ≤1.30:1 | ≤10±1.0dB | ≤±1.0dB | ≥18dB | ≤0.4dB (0.04dB) | N-Female |
| TDC2040H20 | 2~4GHz | ≤200Watt | ≤5Watt | ≤1.30:1 | ≤20±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.04dB) | N-Female |
| TDC2040H40D | 2~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.2dB | ≤±1.5dB | ≥18dB | ≤0.3dB (0.01dB) | N-Female |
| TDC2040N10H | 2~4GHz | ≤120Watt | ≤10Watt | ≤1.30:1 | ≤10±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.46dB) | N-Female |
| TDC2040N10H | 2~4GHz | ≤120Watt | ≤2Watt | ≤1.30:1 | ≤10±1.0dB | ≤±0.7dB | ≥18dB | ≤0.5dB (0.46dB) | N-Female |
| TDC2060N30H | 2~6GHz | ≤150Watt | ≤50Watt | ≤1.35:1 | ≤30±1dB | ≤±0.8dB | ≥16dB | ≤0.5dB (0.01dB) | N-Female |
| TDC2080N10H | 2~8GHz | ≤120Watt | ≤2Watt | ≤1.30:1 | ≤20±1.0dB | ≤±0.7dB | ≥12dB | ≤0.6dB (0.46dB) | N-Female |
| TDC2080N30H | 2~8GHz | ≤150Watt | ≤2Watt | ≤1.30:1 | ≤30±0.8dB | ≤±0.8dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC20180N10H | 2~18GHz | ≤120Watt | ≤2Watt | ≤1.40:1 | ≤20±1.0dB | ≤±1.0dB | ≥12dB | ≤0.8dB (0.46dB) | N-Female |
| TDC2425DH40M | 2.4~2.5GHz | ≤1000Watt | ≤1000Watt | ≤1.30:1 | ≤40±1.0dB | ≤±0.5dB | ≥15dB | ≤0.2dB (0.01dB) | In: 7/16-Male; Out: 7/16-Female; Coupled: N-F |
| TDC2543N10HA | 2.5~4.3GHz | ≤100Watt | ≤2Watt | ≤1.20:1 | ≤10±1.0dB | ≤±0.8dB | ≥18dB | ≤0.5dB (0.46dB) | N-Female |
| TDC2730H30 | 2.7~3.0GHz | ≤300Watt | ≤5Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.01dB) | N-Female |
| TDC2933H20MA | 2.9~3.3GHz | ≤400Watt | ≤30Watt | ≤1.24:1 | ≤20±1.0dB | ≤±0.8dB | ≥18dB | ≤0.3dB (0.04dB) | In: N-Male; Out: N-Female; Coupled: SMA-F |
| TDC3342H30A | 3.3~4.2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤30±1.0dB | ≤±0.8dB | ≥15dB | ≤0.3dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC3440H30 | 3.4~4.0GHz | ≤500Watt | ≤50Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.2dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC3440N30H | 3.4~4.0GHz | ≤100Watt | ≤2Watt | ≤1.30:1 | ≤30±0.8dB | ≤±0.8dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC4452N20H | 4.4~5.2GHz | ≤100Watt | ≤5Watt | ≤1.30:1 | ≤20±0.7dB | ≤±0.7dB | ≥18dB | ≤0.4dB (0.04dB) | N-Female |
| TDC5759N30H | 5.7~5.9GHz | ≤150Watt | ≤50Watt | ≤1.30:1 | ≤30±1dB | ≤±0.8dB | ≥24dB | ≤0.4dB (0.01dB) | N-Female |
| TDC80180N30H | 8~18GHz | ≤50Watt | ≤2Watt | ≤1.60:1 | ≤30±1dB | ≤±0.7dB | ≥10dB | ≤0.9dB (0.01dB) | Input: N-Male, Output: N-Female, Coupled: SMA-Female |
English
