Low Noise Amplifier Manufacturers In China
- Covers up to 170 GHz with low noise and high gain, suitable for 5G, satellite, radar and broadcast.
- 100% automated testing on 30+ metrics, ISO 9001 certified, ensuring reliable quality.
- With a 30,000 m² ISO 9001-certified factory, we deliver custom samples in as fast as 7 working days.
- Trusted by over 1,000 global clients, Safari MW supports critical applications in defense, aerospace, and telecom sectors.
30+ Years RF Excellence
Over 30 years of industry experience, trusted by 1000+ clients with proven quality and reliability.
Agile Custom Manufacturing
Fast OEM/ODM with flexible specs—40% quicker from prototype to delivery than industry peers.
Expert Engineering Team
12+ senior RF engineers ensuring performance in radar, satellite, and 5G-grade systems.
Your Trustful Low Noise Amplifier Supplier
A variety of products and technical details are being refreshed and made available.
Your Trustful Low Noise Amplifier Supplier
A variety of products and technical details are being refreshed and made available.

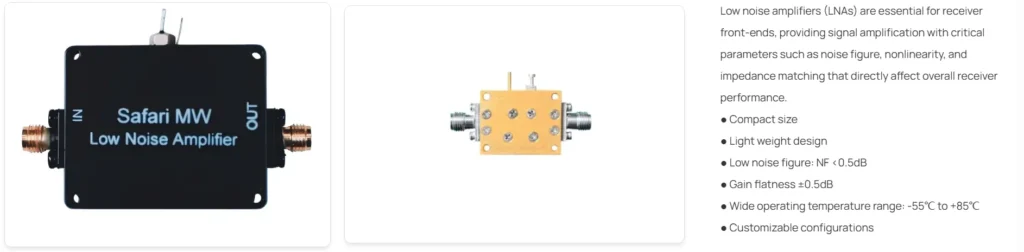

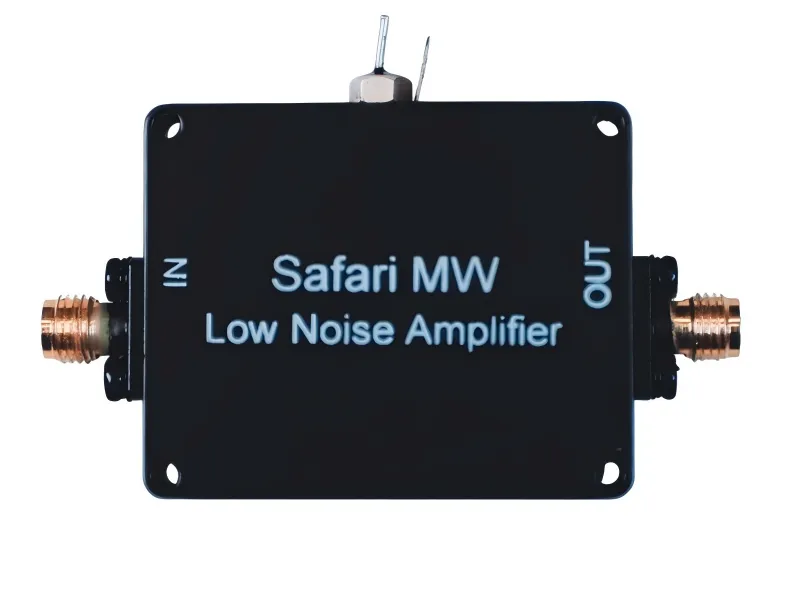

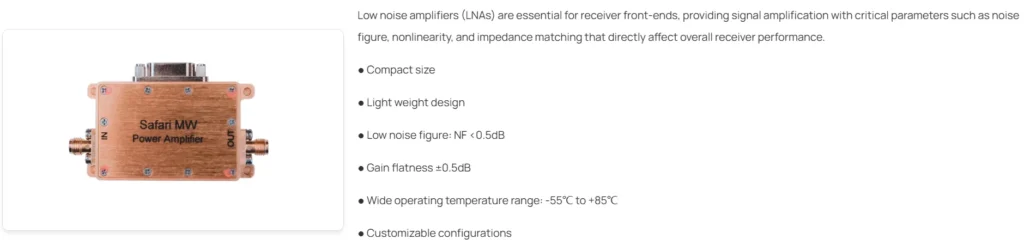

Low noise amplifiers (LNAs) are essential for receiver front-ends, providing signal amplification with critical parameters such as noise figure, nonlinearity, and impedance matching that directly affect overall receiver performance.
● Compact size
● Light weight design
● Low noise figure: NF <0.5dB
● Gain flatness ±0.5dB
● Wide operating temperature range: -55℃ to +85℃
● Customizable configurations

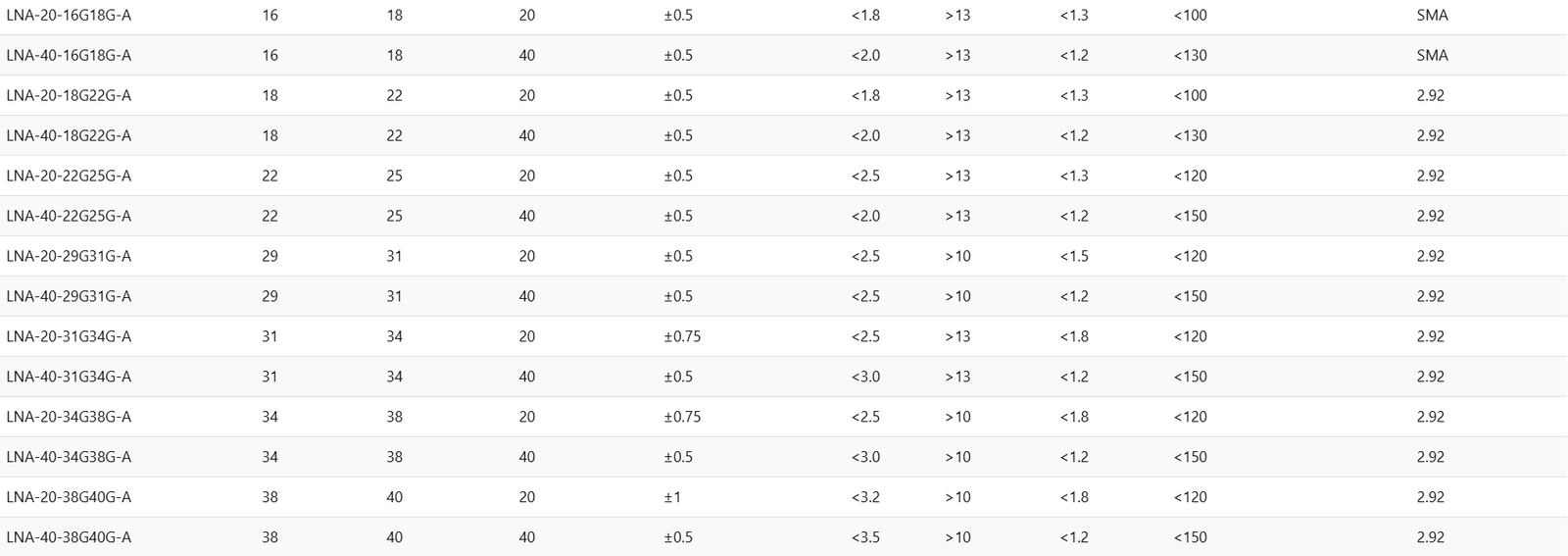

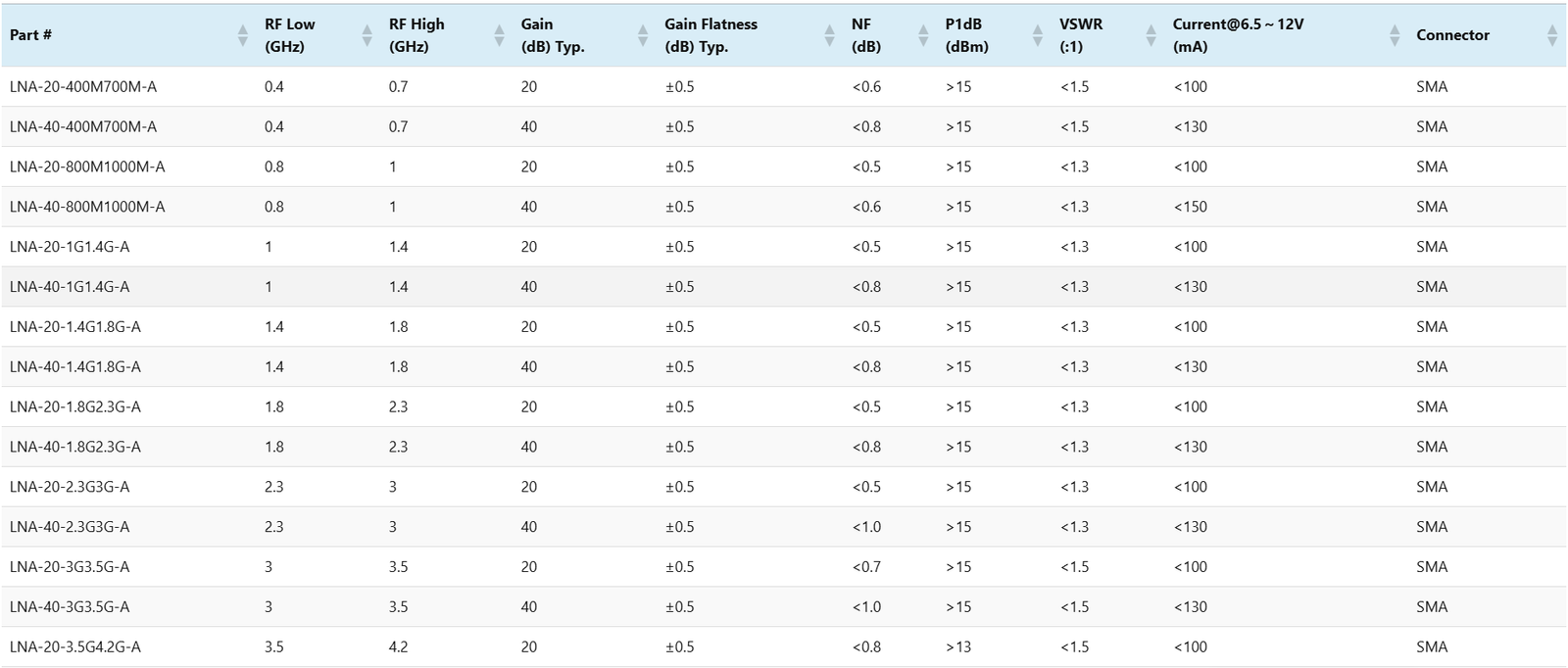

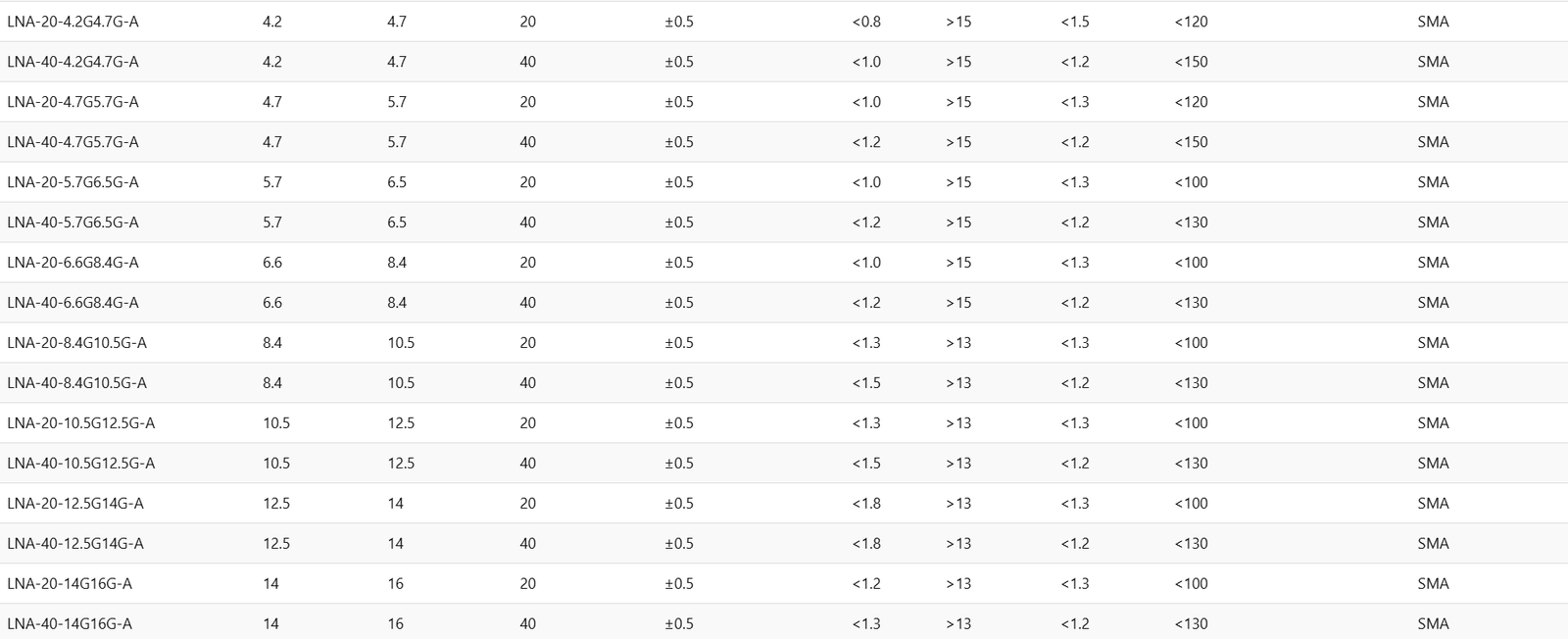

Narrowband Low Noise Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) Typ. | Gain Flatness (dB) Typ. | NF (dB) | P1dB (dBm) | VSWR (:1) | Current@6.5～12V (mA) | Connector |
|---|---|---|---|---|---|---|---|---|---|
| LNA-20-400M700M-A | 0.4 | 0.7 | 20 | ±0.5 | <0.6 | >15 | <1.5 | <100 | SMA |
| LNA-40-400M700M-A | 0.4 | 0.7 | 40 | ±0.5 | <0.8 | >15 | <1.5 | <130 | SMA |
| LNA-20-800M1000M-A | 0.8 | 1 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-800M1000M-A | 0.8 | 1 | 40 | ±0.5 | <0.6 | >15 | <1.3 | <150 | SMA |
| LNA-20-1G1.4G-A | 1 | 1.4 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1G1.4G-A | 1 | 1.4 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-1.4G1.8G-A | 1.4 | 1.8 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1.4G1.8G-A | 1.4 | 1.8 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-1.8G2.3G-A | 1.8 | 2.3 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-1.8G2.3G-A | 1.8 | 2.3 | 40 | ±0.5 | <0.8 | >15 | <1.3 | <130 | SMA |
| LNA-20-2.3G3G-A | 2.3 | 3 | 20 | ±0.5 | <0.5 | >15 | <1.3 | <100 | SMA |
| LNA-40-2.3G3G-A | 2.3 | 3 | 40 | ±0.5 | <1.0 | >15 | <1.3 | <130 | SMA |
| LNA-20-3G3.5G-A | 3 | 3.5 | 20 | ±0.5 | <0.7 | >15 | <1.5 | <100 | SMA |
| LNA-40-3G3.5G-A | 3 | 3.5 | 40 | ±0.5 | <1.0 | >15 | <1.5 | <130 | SMA |
| LNA-20-3.5G4.2G-A | 3.5 | 4.2 | 20 | ±0.5 | <0.8 | >13 | <1.5 | <100 | SMA |
| LNA-40-3.5G4.2G-A | 3.5 | 4.2 | 40 | ±0.5 | <1.0 | >15 | <1.2 | <130 | SMA |
| LNA-20-4.2G4.7G-A | 4.2 | 4.7 | 20 | ±0.5 | <0.8 | >15 | <1.5 | <120 | SMA |
| LNA-40-4.2G4.7G-A | 4.2 | 4.7 | 40 | ±0.5 | <1.0 | >15 | <1.2 | <150 | SMA |
| LNA-20-4.7G5.7G-A | 4.7 | 5.7 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <120 | SMA |
| LNA-40-4.7G5.7G-A | 4.7 | 5.7 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <150 | SMA |
| LNA-20-5.7G6.5G-A | 5.7 | 6.5 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <100 | SMA |
| LNA-40-5.7G6.5G-A | 5.7 | 6.5 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <130 | SMA |
| LNA-20-6.6G8.4G-A | 6.6 | 8.4 | 20 | ±0.5 | <1.0 | >15 | <1.3 | <100 | SMA |
| LNA-40-6.6G8.4G-A | 6.6 | 8.4 | 40 | ±0.5 | <1.2 | >15 | <1.2 | <130 | SMA |
| LNA-20-8.4G10.5G-A | 8.4 | 10.5 | 20 | ±0.5 | <1.3 | >13 | <1.3 | <100 | SMA |
| LNA-40-8.4G10.5G-A | 8.4 | 10.5 | 40 | ±0.5 | <1.5 | >13 | <1.2 | <130 | SMA |
| LNA-20-10.5G12.5G-A | 10.5 | 12.5 | 20 | ±0.5 | <1.3 | >13 | <1.3 | <100 | SMA |
| LNA-40-10.5G12.5G-A | 10.5 | 12.5 | 40 | ±0.5 | <1.5 | >13 | <1.2 | <130 | SMA |
| LNA-20-12.5G14G-A | 12.5 | 14 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | SMA |
| LNA-40-12.5G14G-A | 12.5 | 14 | 40 | ±0.5 | <1.8 | >13 | <1.2 | <130 | SMA |
| LNA-20-14G16G-A | 14 | 16 | 20 | ±0.5 | <1.2 | >13 | <1.3 | <100 | SMA |
| LNA-40-14G16G-A | 14 | 16 | 40 | ±0.5 | <1.3 | >13 | <1.2 | <130 | SMA |
| LNA-20-16G18G-A | 16 | 18 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | SMA |
| LNA-40-16G18G-A | 16 | 18 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <130 | SMA |
| LNA-20-18G22G-A | 18 | 22 | 20 | ±0.5 | <1.8 | >13 | <1.3 | <100 | 2.92 |
| LNA-40-18G22G-A | 18 | 22 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <130 | 2.92 |
| LNA-20-22G25G-A | 22 | 25 | 20 | ±0.5 | <2.5 | >13 | <1.3 | <120 | 2.92 |
| LNA-40-22G25G-A | 22 | 25 | 40 | ±0.5 | <2.0 | >13 | <1.2 | <150 | 2.92 |
| LNA-20-29G31G-A | 29 | 31 | 20 | ±0.5 | <2.5 | >10 | <1.5 | <120 | 2.92 |
| LNA-40-29G31G-A | 29 | 31 | 40 | ±0.5 | <2.5 | >10 | <1.2 | <150 | 2.92 |
| LNA-20-31G34G-A | 31 | 34 | 20 | ±0.75 | <2.5 | >13 | <1.8 | <120 | 2.92 |
| LNA-40-31G34G-A | 31 | 34 | 40 | ±0.5 | <3.0 | >13 | <1.2 | <150 | 2.92 |
| LNA-20-34G38G-A | 34 | 38 | 20 | ±0.75 | <2.5 | >10 | <1.8 | <120 | 2.92 |
| LNA-40-34G38G-A | 34 | 38 | 40 | ±0.5 | <3.0 | >10 | <1.2 | <150 | 2.92 |
| LNA-20-38G40G-A | 38 | 40 | 20 | ±1 | <3.2 | >10 | <1.8 | <120 | 2.92 |
| LNA-40-38G40G-A | 38 | 40 | 40 | ±0.5 | <3.5 | >10 | <1.2 | <150 | 2.92 |
Low noise amplifiers (LNAs) are essential for receiver front-ends, providing signal amplification with critical parameters such as noise figure, nonlinearity, and impedance matching that directly affect overall receiver performance.
● Compact size
● Light weight design
● Low noise figure: NF <0.5dB
● Gain flatness ±0.5dB
● Wide operating temperature range: -55℃ to +85℃
● Customizable configurations

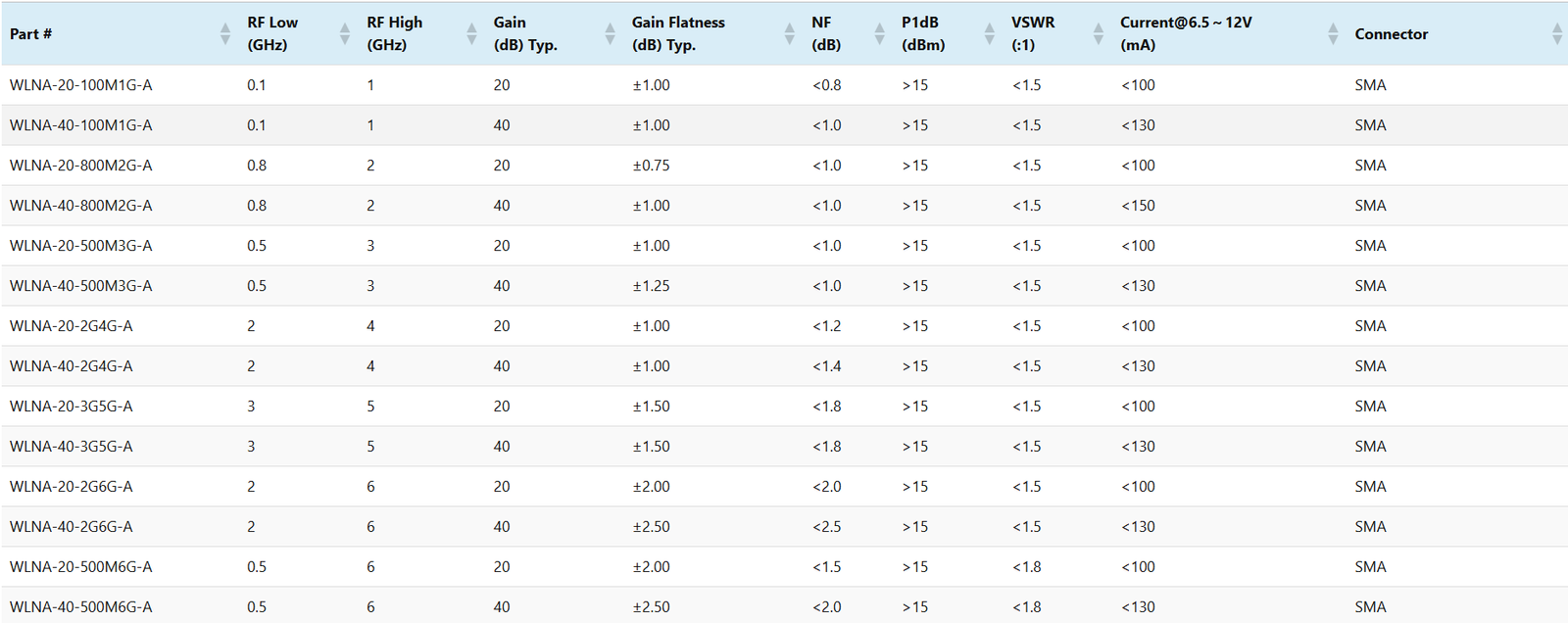

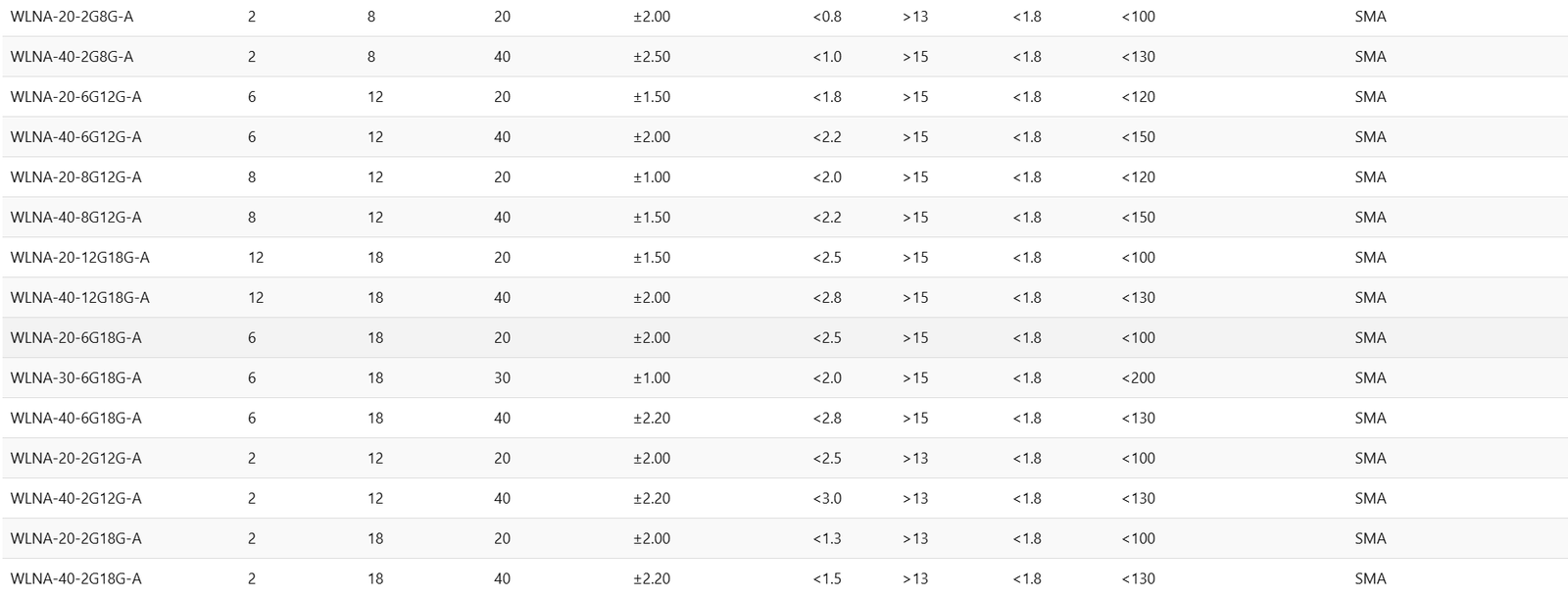

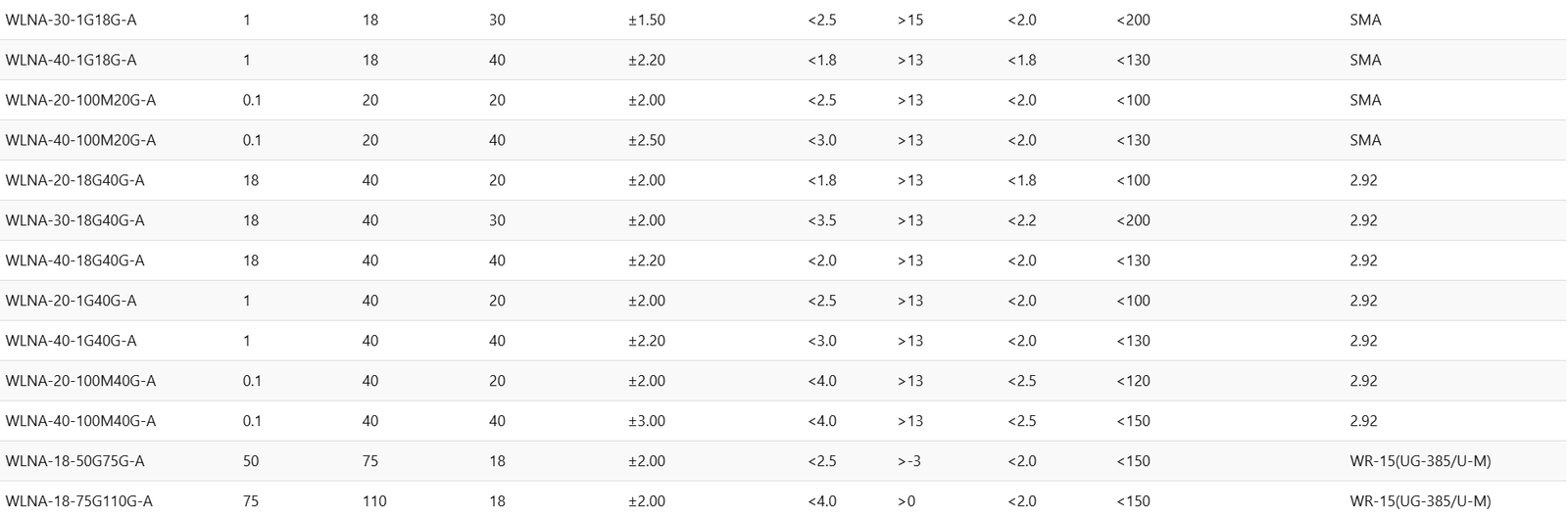

Wideband Low Noise Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) Typ. | Gain Flatness (dB) Typ. | NF (dB) | P1dB (dBm) | VSWR (:1) | Current@6.5～12V (mA) | Connector |
|---|---|---|---|---|---|---|---|---|---|
| WLNA-20-100M1G-A | 0.1 | 1 | 20 | ±1.00 | <0.8 | >15 | <1.5 | <100 | SMA |
| WLNA-40-100M1G-A | 0.1 | 1 | 40 | ±1.00 | <1.0 | >15 | <1.5 | <130 | SMA |
| WLNA-20-800M2G-A | 0.8 | 2 | 20 | ±0.75 | <1.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-800M2G-A | 0.8 | 2 | 40 | ±1.00 | <1.0 | >15 | <1.5 | <150 | SMA |
| WLNA-20-500M3G-A | 0.5 | 3 | 20 | ±1.00 | <1.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-500M3G-A | 0.5 | 3 | 40 | ±1.25 | <1.0 | >15 | <1.5 | <130 | SMA |
| WLNA-20-2G4G-A | 2 | 4 | 20 | ±1.00 | <1.2 | >15 | <1.5 | <100 | SMA |
| WLNA-40-2G4G-A | 2 | 4 | 40 | ±1.00 | <1.4 | >15 | <1.5 | <130 | SMA |
| WLNA-20-3G5G-A | 3 | 5 | 20 | ±1.50 | <1.8 | >15 | <1.5 | <100 | SMA |
| WLNA-40-3G5G-A | 3 | 5 | 40 | ±1.50 | <1.8 | >15 | <1.5 | <130 | SMA |
| WLNA-20-2G6G-A | 2 | 6 | 20 | ±2.00 | <2.0 | >15 | <1.5 | <100 | SMA |
| WLNA-40-2G6G-A | 2 | 6 | 40 | ±2.50 | <2.5 | >15 | <1.5 | <130 | SMA |
| WLNA-20-500M6G-A | 0.5 | 6 | 20 | ±2.00 | <1.5 | >15 | <1.8 | <100 | SMA |
| WLNA-40-500M6G-A | 0.5 | 6 | 40 | ±2.50 | <2.0 | >15 | <1.8 | <130 | SMA |
| WLNA-20-2G8G-A | 2 | 8 | 20 | ±2.00 | <0.8 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G8G-A | 2 | 8 | 40 | ±2.50 | <1.0 | >15 | <1.8 | <130 | SMA |
| WLNA-20-6G12G-A | 6 | 12 | 20 | ±1.50 | <1.8 | >15 | <1.8 | <120 | SMA |
| WLNA-40-6G12G-A | 6 | 12 | 40 | ±2.00 | <2.2 | >15 | <1.8 | <150 | SMA |
| WLNA-20-8G12G-A | 8 | 12 | 20 | ±1.00 | <2.0 | >15 | <1.8 | <120 | SMA |
| WLNA-40-8G12G-A | 8 | 12 | 40 | ±1.50 | <2.2 | >15 | <1.8 | <150 | SMA |
| WLNA-20-12G18G-A | 12 | 18 | 20 | ±1.50 | <2.5 | >15 | <1.8 | <100 | SMA |
| WLNA-40-12G18G-A | 12 | 18 | 40 | ±2.00 | <2.8 | >15 | <1.8 | <130 | SMA |
| WLNA-20-6G18G-A | 6 | 18 | 20 | ±2.00 | <2.5 | >15 | <1.8 | <100 | SMA |
| WLNA-30-6G18G-A | 6 | 18 | 30 | ±1.00 | <2.0 | >15 | <1.8 | <200 | SMA |
| WLNA-40-6G18G-A | 6 | 18 | 40 | ±2.20 | <2.8 | >15 | <1.8 | <130 | SMA |
| WLNA-20-2G12G-A | 2 | 12 | 20 | ±2.00 | <2.5 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G12G-A | 2 | 12 | 40 | ±2.20 | <3.0 | >13 | <1.8 | <130 | SMA |
| WLNA-20-2G18G-A | 2 | 18 | 20 | ±2.00 | <1.3 | >13 | <1.8 | <100 | SMA |
| WLNA-40-2G18G-A | 2 | 18 | 40 | ±2.20 | <1.5 | >13 | <1.8 | <130 | SMA |
| WLNA-20-1G18G-A | 1 | 18 | 20 | ±2.00 | <1.8 | >13 | <1.8 | <100 | SMA |
| WLNA-30-1G18G-A | 1 | 18 | 30 | ±1.50 | <2.5 | >15 | <2.0 | <200 | SMA |
| WLNA-40-1G18G-A | 1 | 18 | 40 | ±2.20 | <1.8 | >13 | <1.8 | <130 | SMA |
| WLNA-20-100M20G-A | 0.1 | 20 | 20 | ±2.00 | <2.5 | >13 | <2.0 | <100 | SMA |
| WLNA-40-100M20G-A | 0.1 | 20 | 40 | ±2.50 | <3.0 | >13 | <2.0 | <130 | SMA |
| WLNA-20-18G40G-A | 18 | 40 | 20 | ±2.00 | <1.8 | >13 | <1.8 | <100 | 2.92 |
| WLNA-30-18G40G-A | 18 | 40 | 30 | ±2.00 | <3.5 | >13 | <2.2 | <200 | 2.92 |
| WLNA-40-18G40G-A | 18 | 40 | 40 | ±2.20 | <2.0 | >13 | <2.0 | <130 | 2.92 |
| WLNA-20-1G40G-A | 1 | 40 | 20 | ±2.00 | <2.5 | >13 | <2.0 | <100 | 2.92 |
| WLNA-40-1G40G-A | 1 | 40 | 40 | ±2.20 | <3.0 | >13 | <2.0 | <130 | 2.92 |
| WLNA-20-100M40G-A | 0.1 | 40 | 20 | ±2.00 | <4.0 | >13 | <2.5 | <120 | 2.92 |
| WLNA-40-100M40G-A | 0.1 | 40 | 40 | ±3.00 | <4.0 | >13 | <2.5 | <150 | 2.92 |
| WLNA-18-50G75G-A | 50 | 75 | 18 | ±2.00 | <2.5 | >-3 | <2.0 | <150 | WR-15(UG-385/U-M) |
| WLNA-18-75G110G-A | 75 | 110 | 18 | ±2.00 | <4.0 | >0 | <2.0 | <150 | WR-15(UG-385/U-M) |

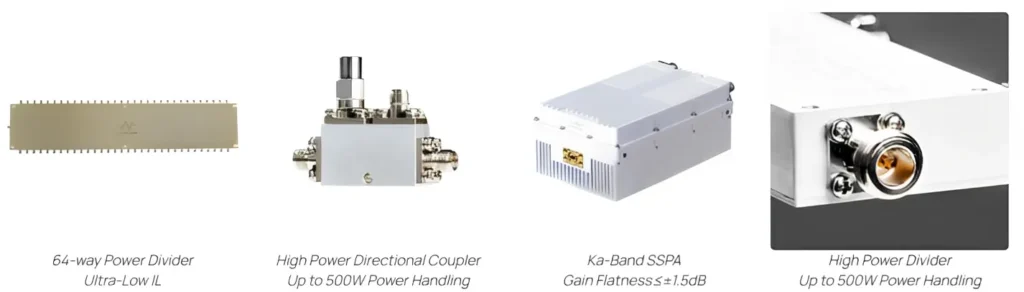

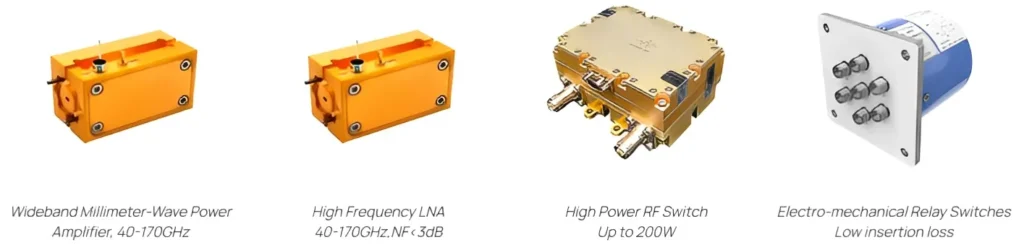

Featured Products
Up to 200W
40-170GHz,NF<3dB
Low insertion loss
Up to 500W Power Handling
Up to 500W Power Handling
Gain Flatness≤±1.5dB
Ultra-Low IL
What is Low Noise Amplifier Supplier ?
An NB LNA, or Narrowband Low Noise Amplifier, is a type of amplifier designed to amplify signals within a specific, narrow frequency range while minimizing noise. These amplifiers are used to enhance weak signals without significantly adding noise, making them ideal for applications where signal clarity is crucial. Key Features of NB LNA: Frequency Specificity: Designed to operate effectively within a narrow frequency band, which helps in achieving better signal-to-noise ratio (SNR) within that range. Low Noise Figure: They introduce minimal additional noise to the amplified signal, making them ideal for applications requiring high sensitivity. High Gain: Provides significant amplification for weak signals within the target frequency range.

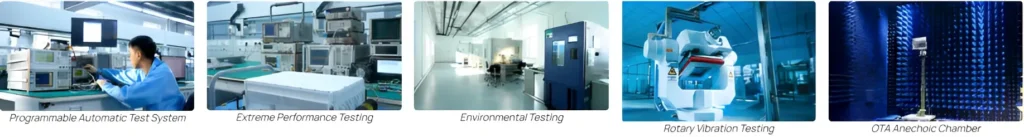

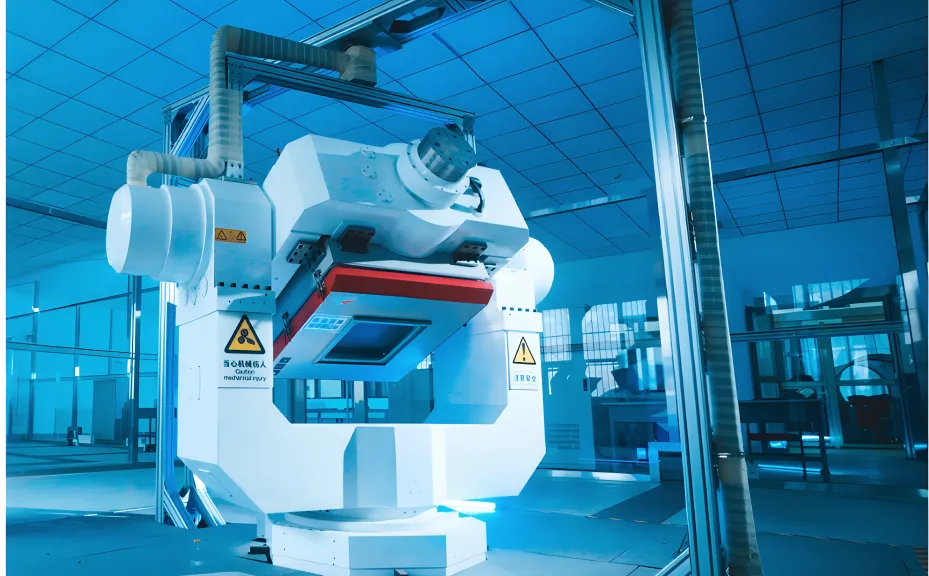

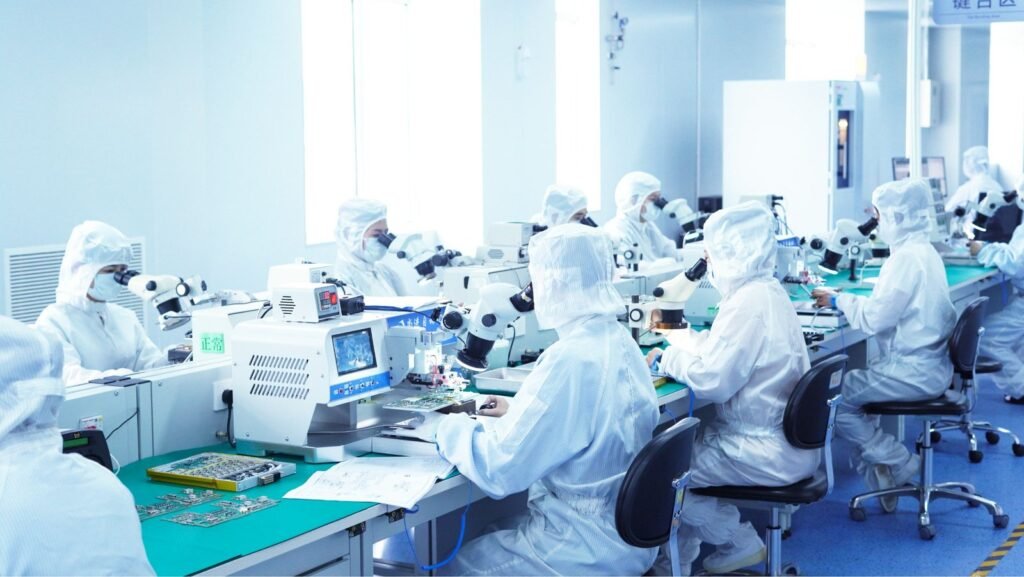

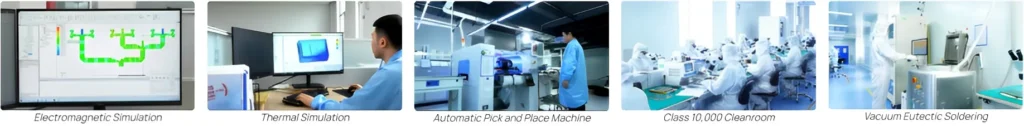

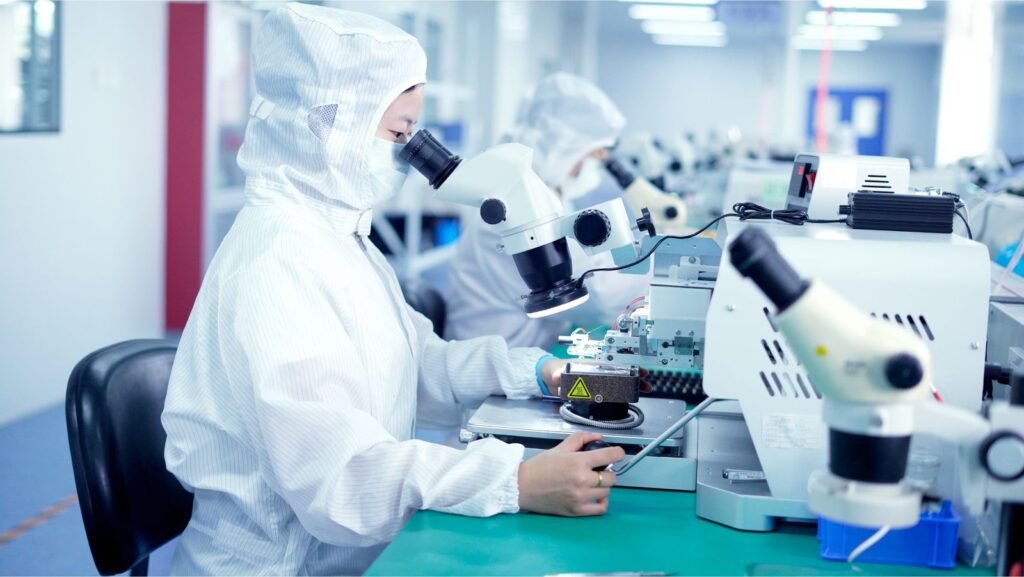

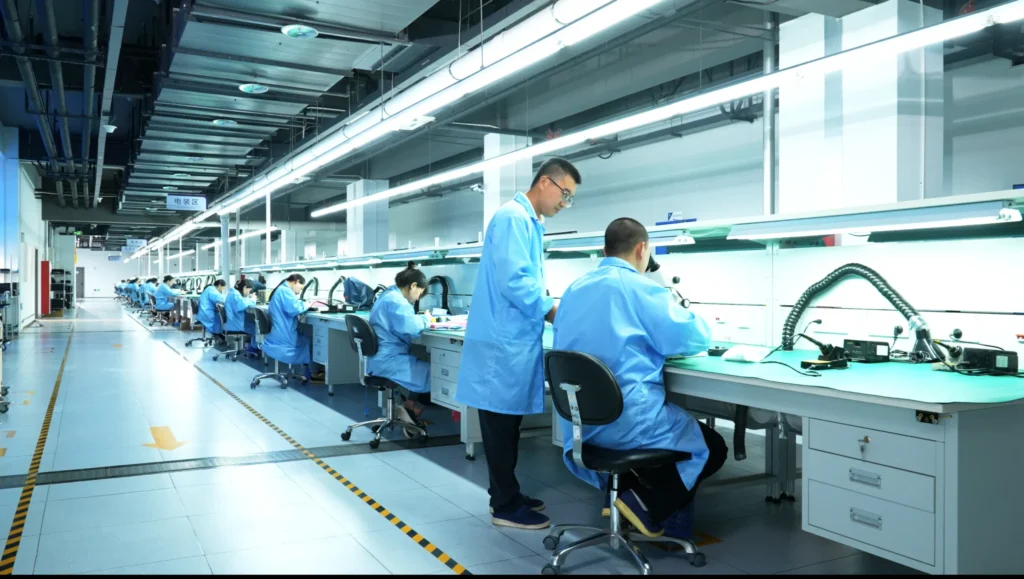

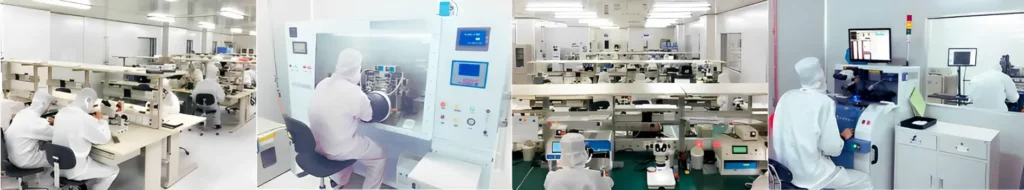

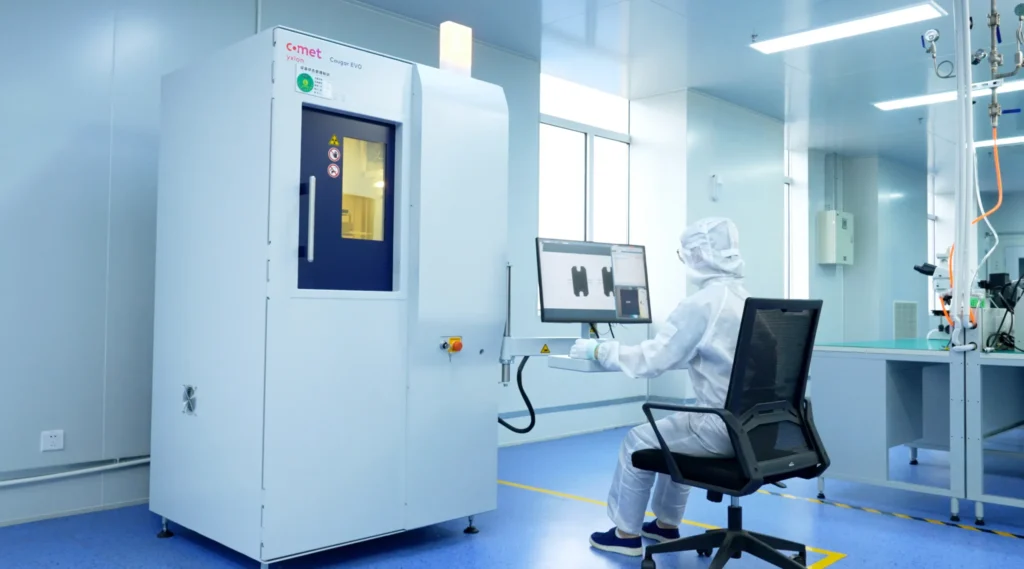

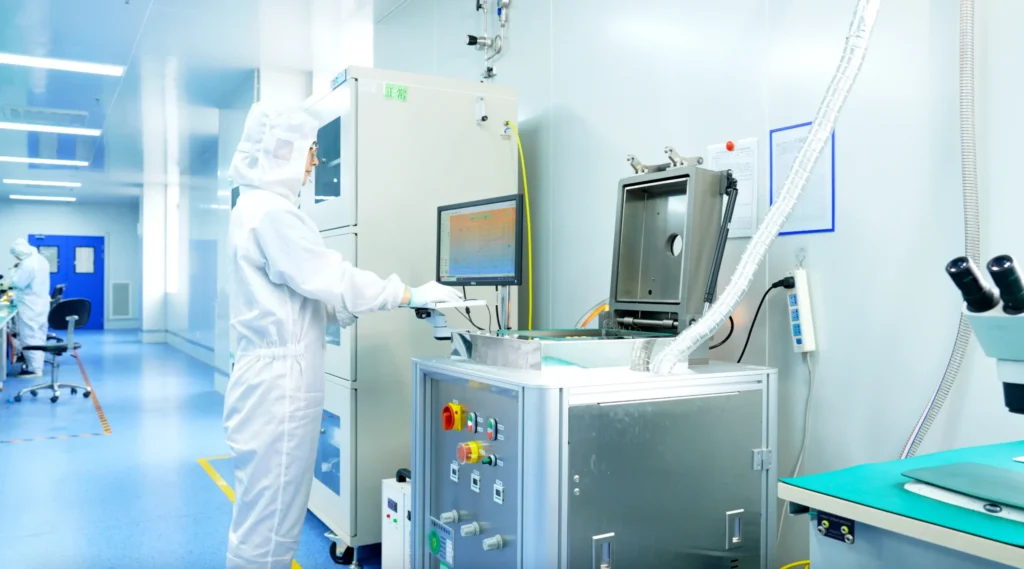

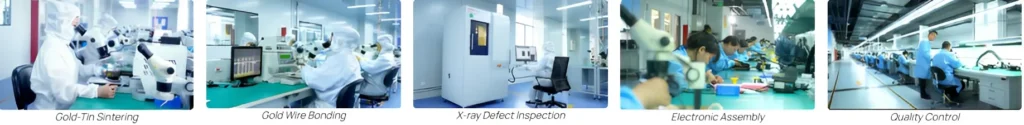

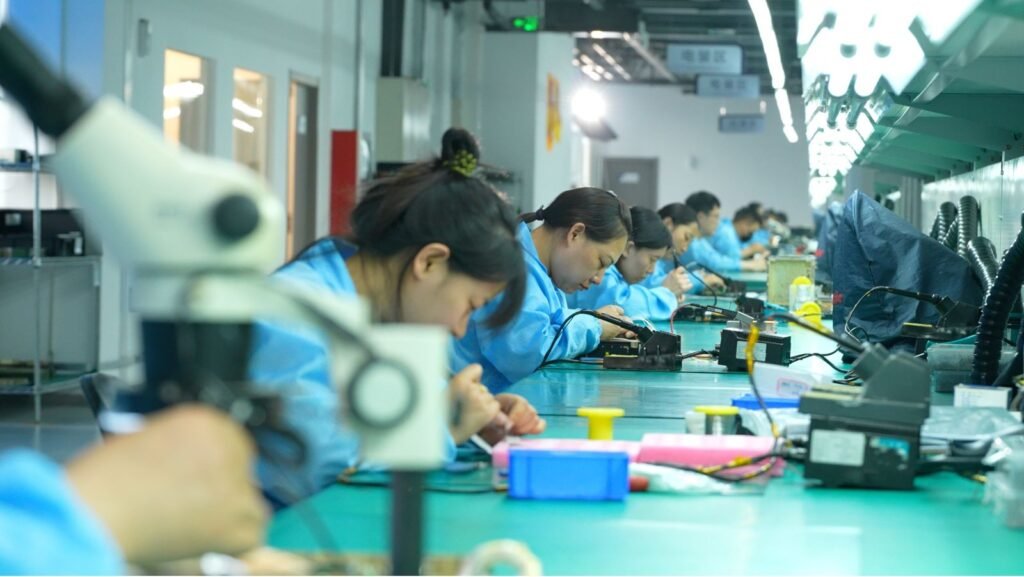

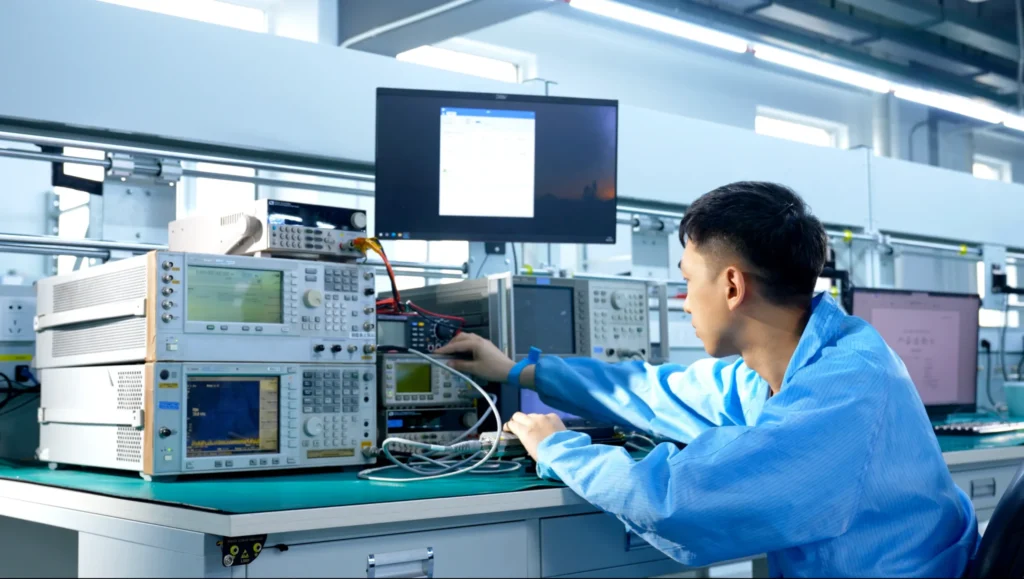

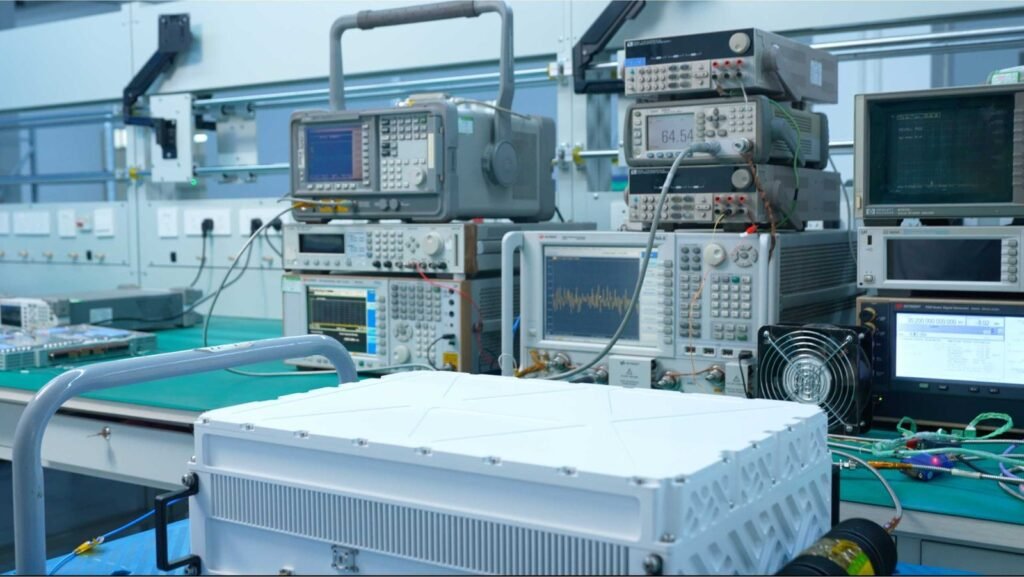

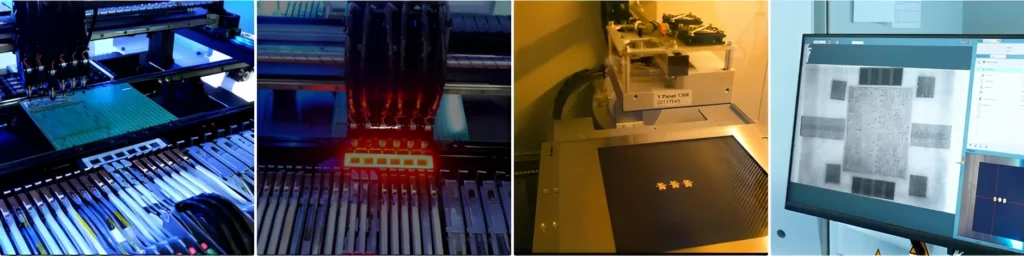

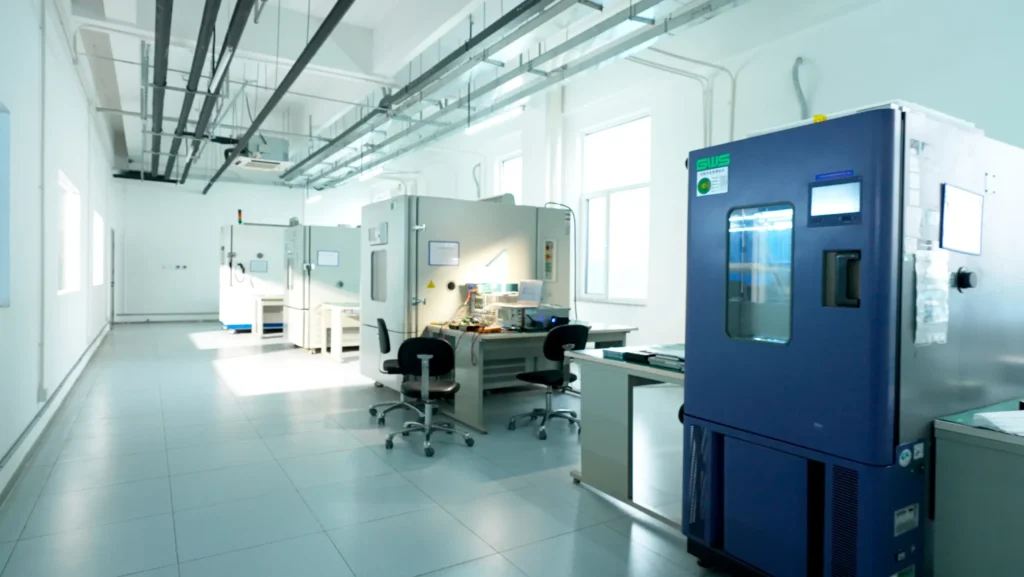

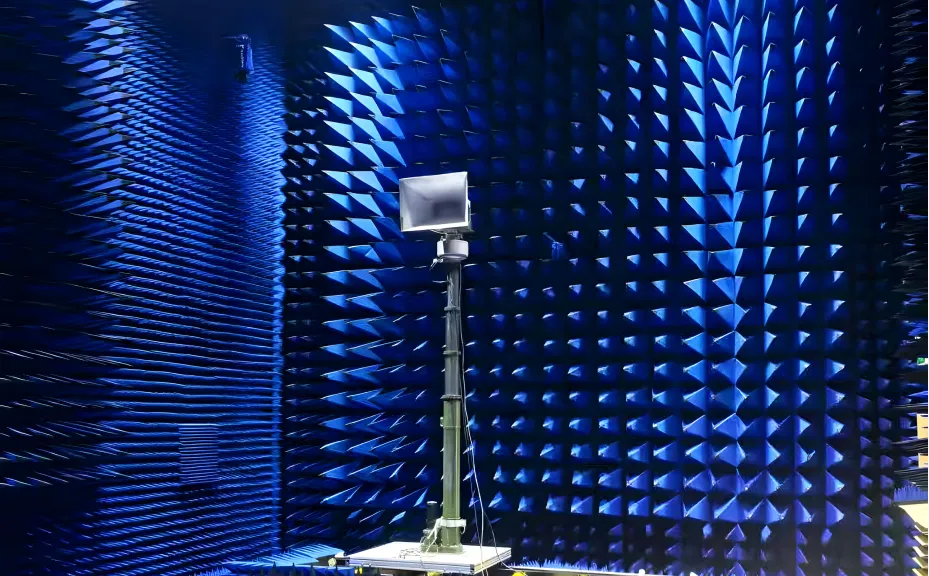

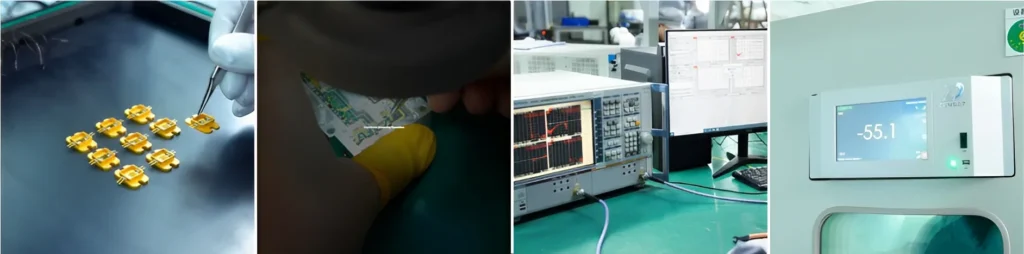

Advanced In-House Manufacturing & Rigorous Testing

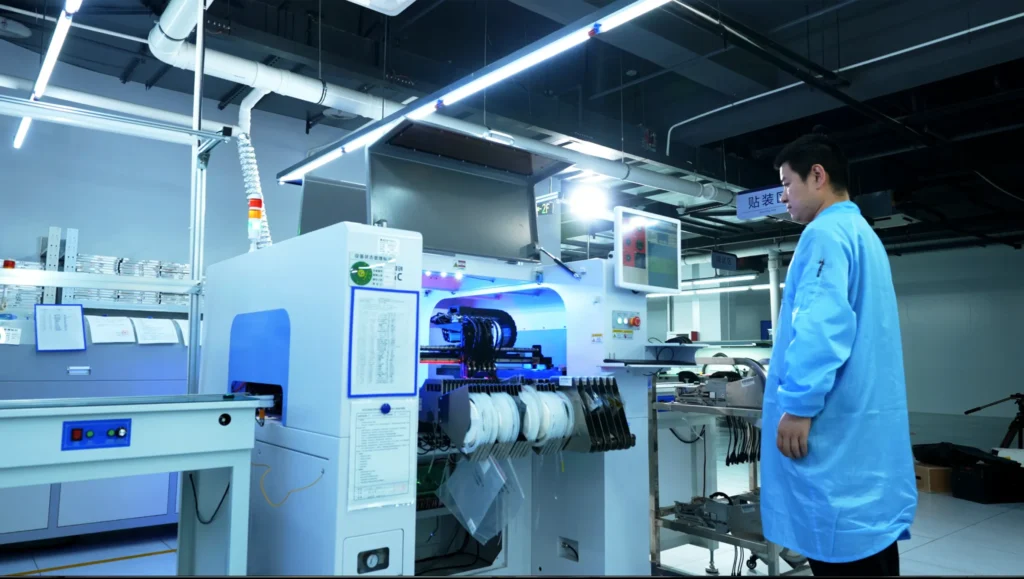

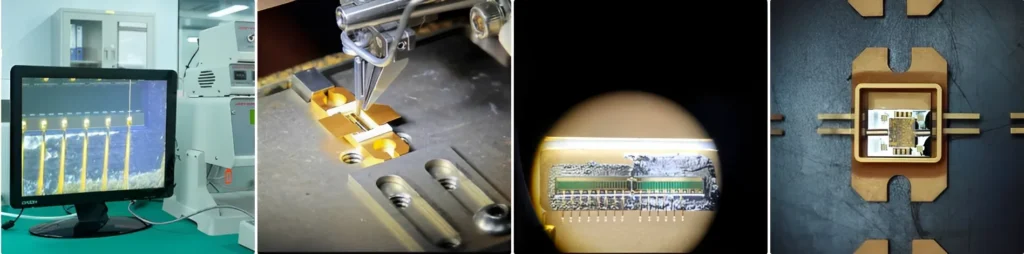

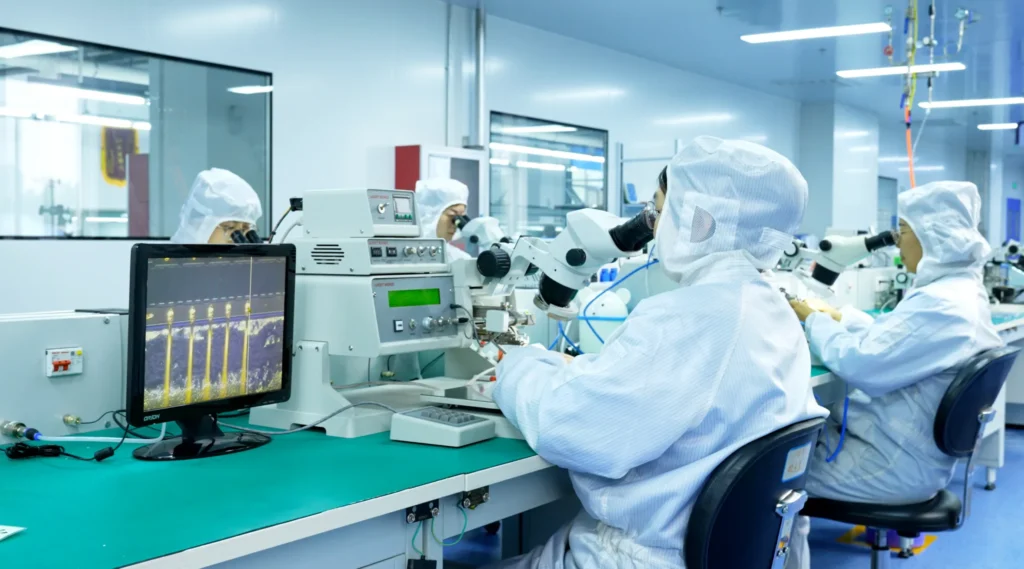

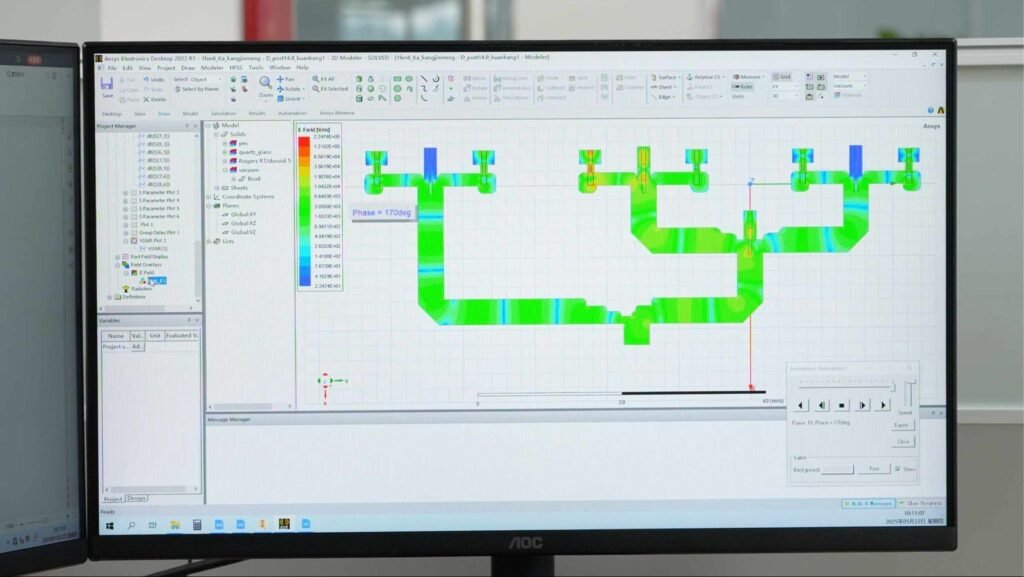

Critical Manufacturing Steps for High Frequency RF Amplifiers
Advanced In-House Manufacturing & Rigorous Testing
Critical Manufacturing Steps for High Frequency RF Amplifiers
Fully Customizable

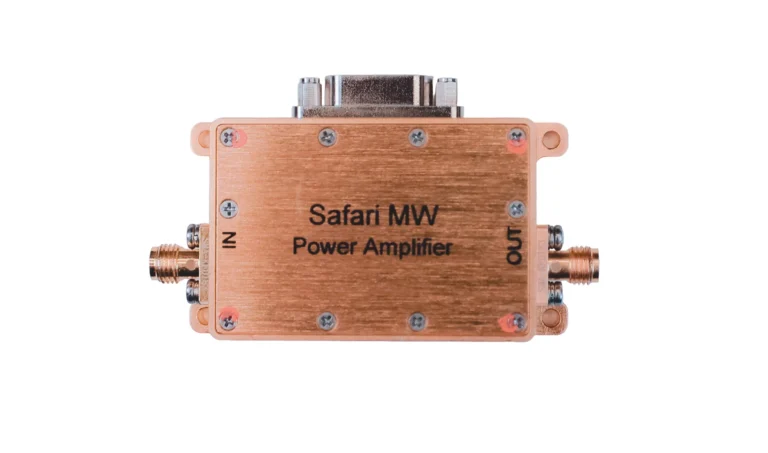

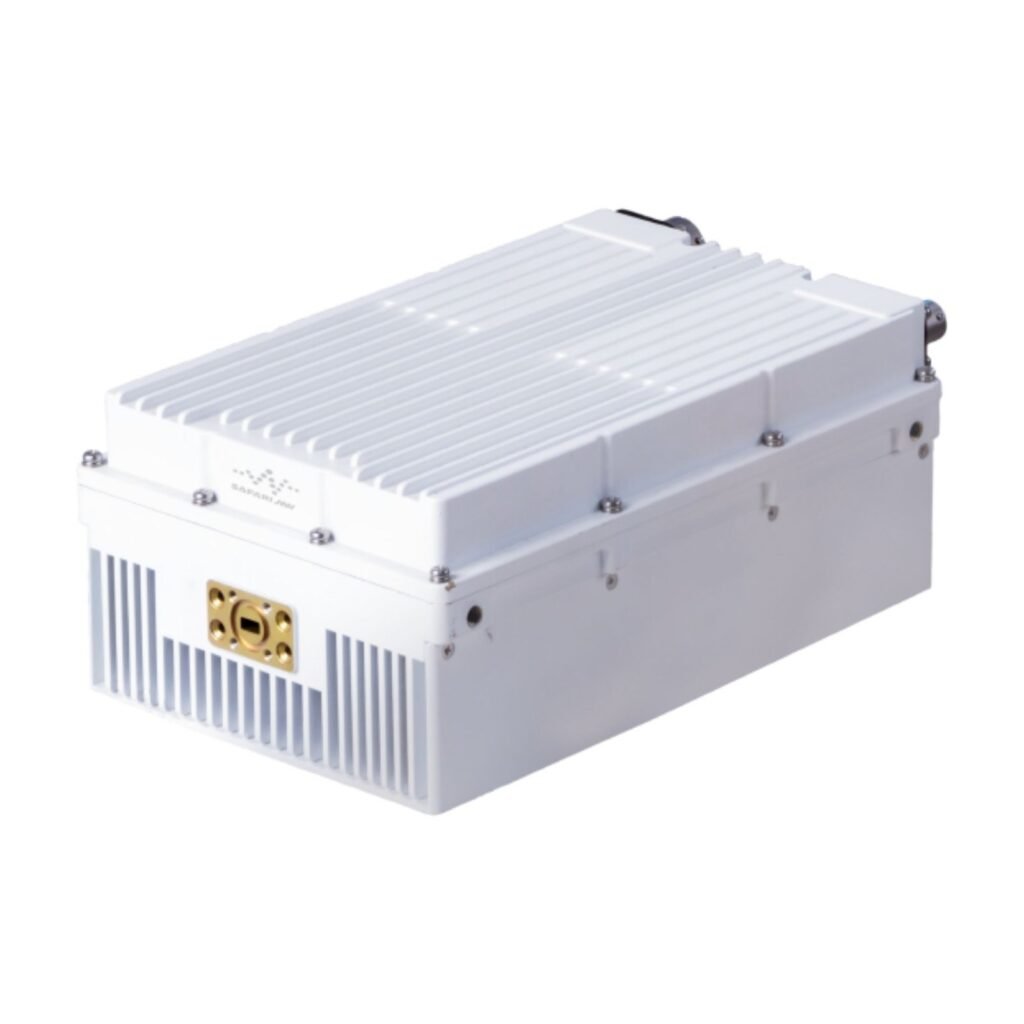

Custom Solid State Power Amplifier
Specifications shown are based on custom project capabilities.Final performance depends on system requirements.
- Frequency from 0.03 to 170 GHz, power customizable to meet RF system needs.
- Supports SMA, 2.92mm (K), waveguide connectors, and custom enclosures.

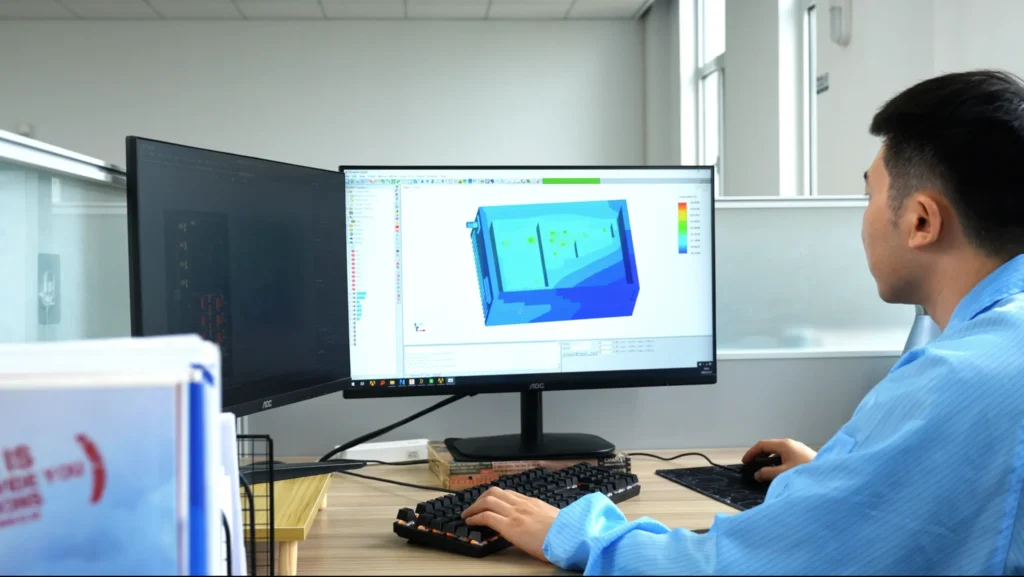

- Custom mechanical and thermal designs ensure stable operation in harsh conditions.
- Operates reliably from -55℃ to +85℃, suitable for aerospace, telecom, industrial, and defense.
Critical Manufacturing Details for
Solid State Power Amplifiers
30+
Years of Experience
Why Choose us

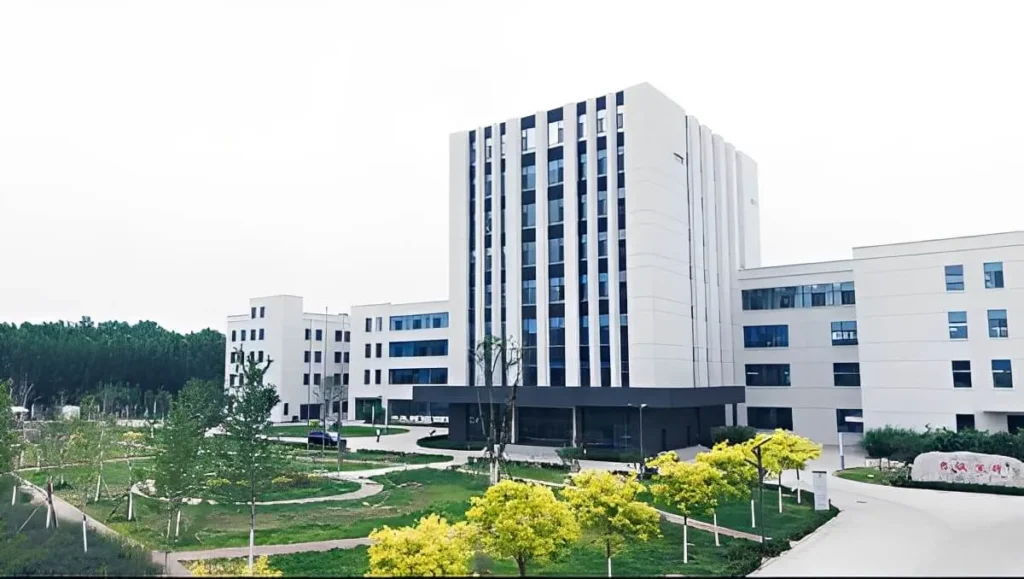

Founded in 2004, Safari MW’s parent company brings more than 30 years of expertise to the field — amazing!
By focusing on the domestic market in China, we achieved annual sales exceeding 500 million.
30 Years of Expertise in RF Engineering and Manufacturing
Safari Microwave brings 30 years of expertise in RF amplifiers, switches, and high-power passive components production. We deliver fast, reliable, and custom solutions for global B2B clients.

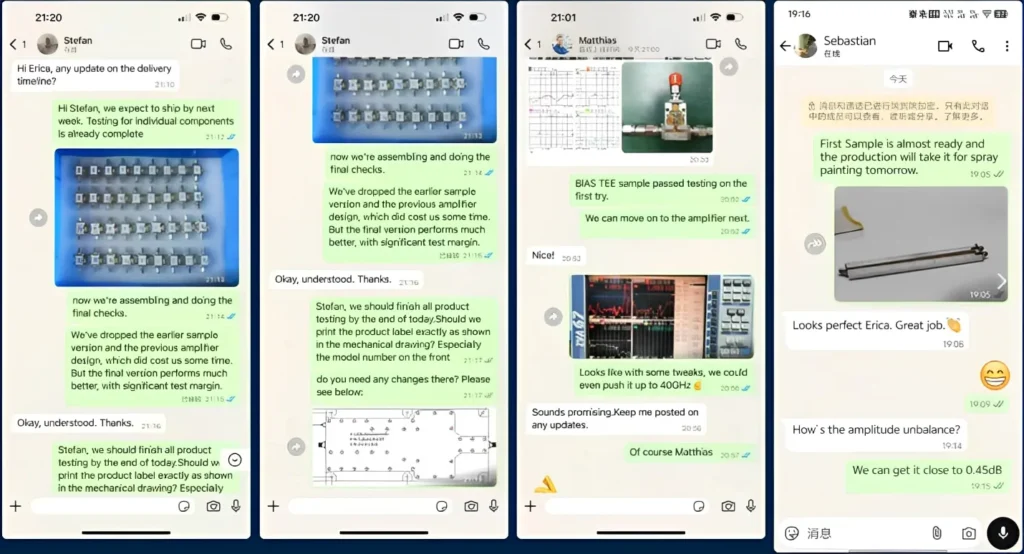

Testimonial
What they say about us
Testimonial
What they say about us
We Support Different Types of Buyers

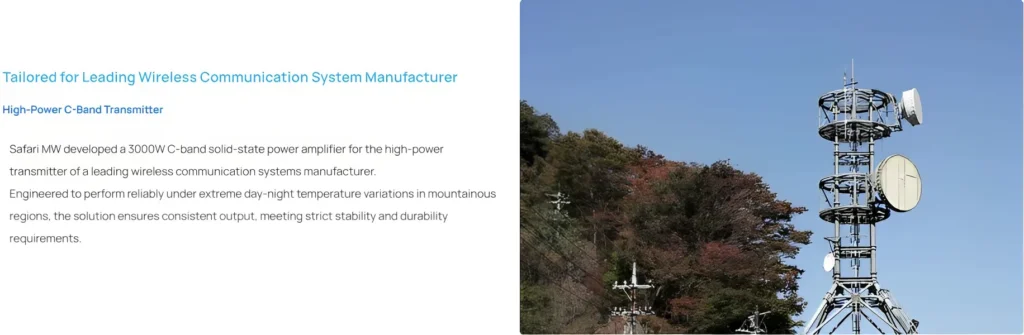

Tailored for Leading Wireless Communication System Manufacturer
High-Power C-Band Transmitter
Safari MW developed a 3000W C-band solid-state power amplifier for the high-power transmitter of a leading wireless communication systems manufacturer.
Engineered to perform reliably under extreme day-night temperature variations in mountainous regions, the solution ensures consistent output, meeting strict stability and durability requirements.

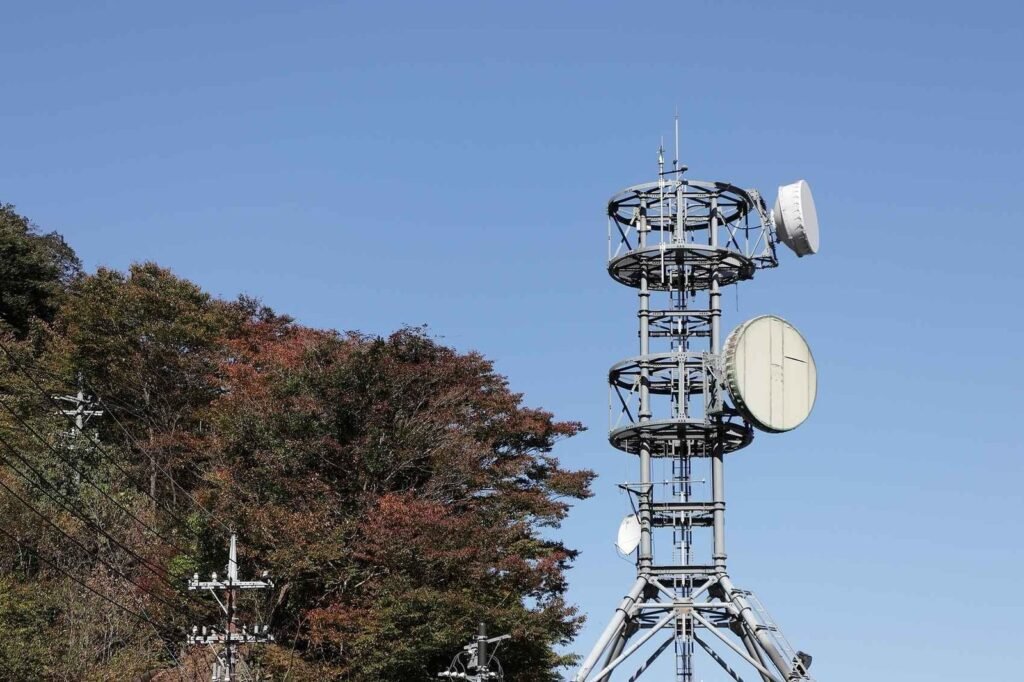

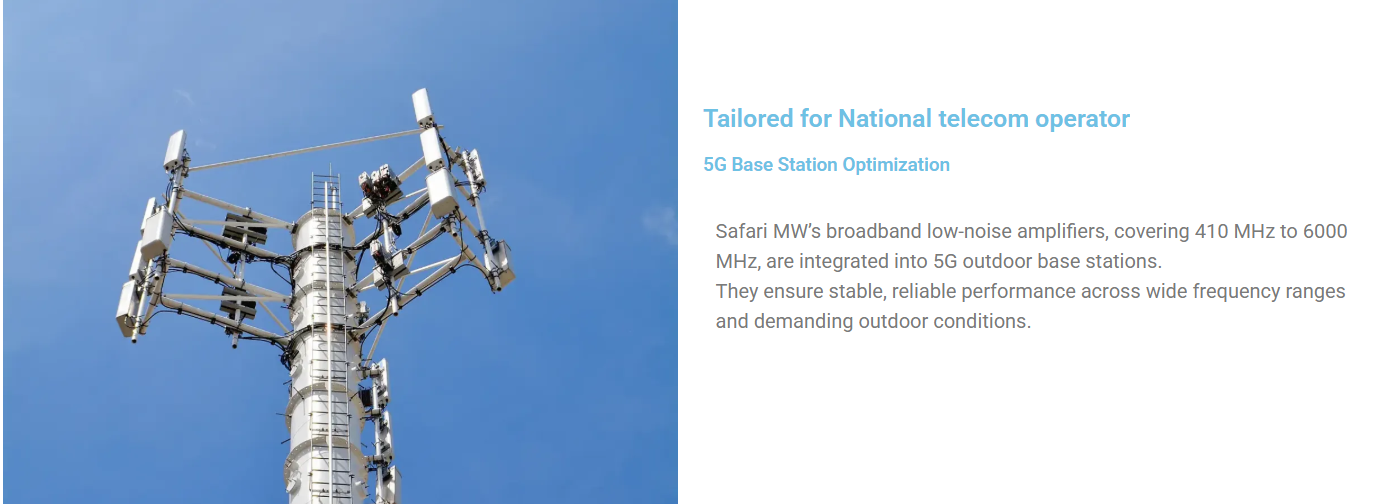

Tailored for National telecom operator

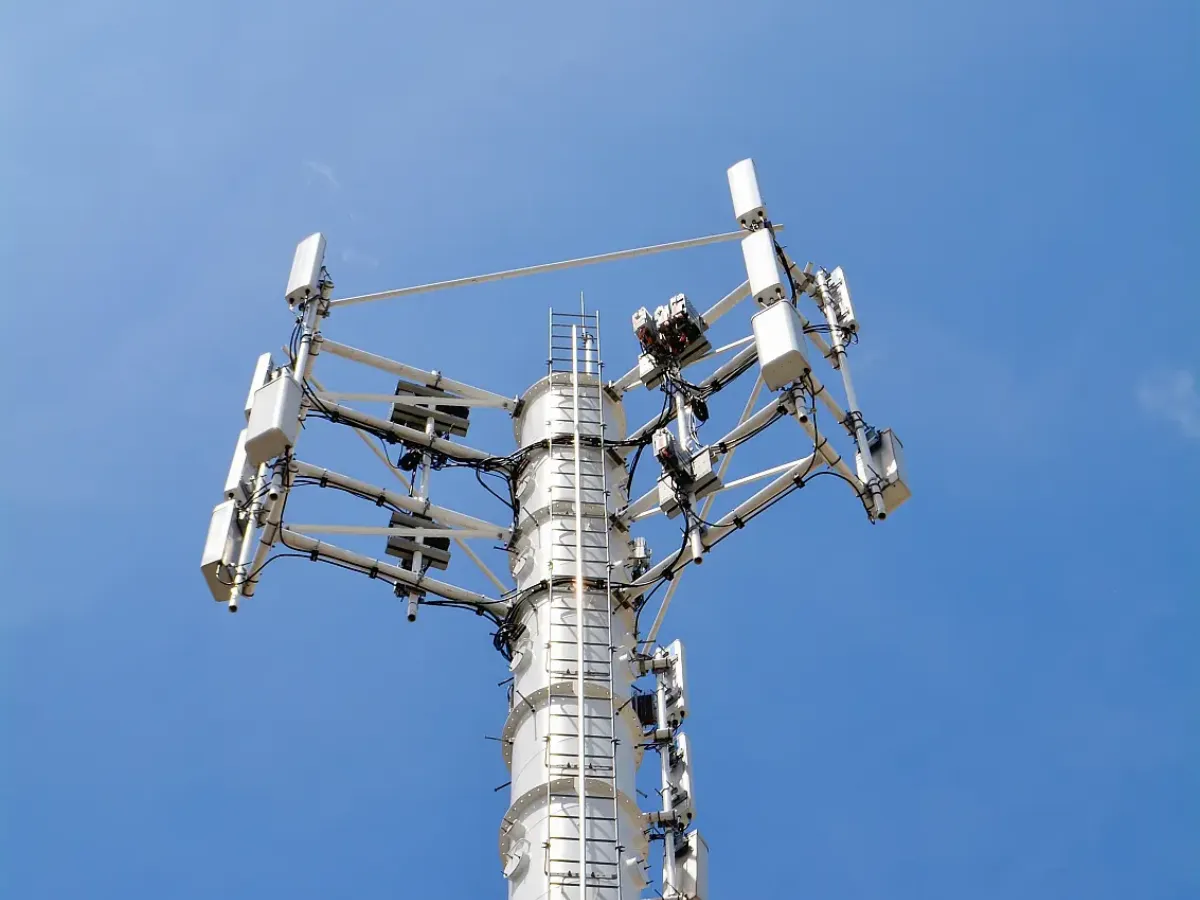

5G Base Station Optimization
Safari MW’s broadband low-noise amplifiers, covering 410 MHz to 6000 MHz, are integrated into 5G outdoor base stations.
They ensure stable, reliable performance across wide frequency ranges and demanding outdoor conditions.

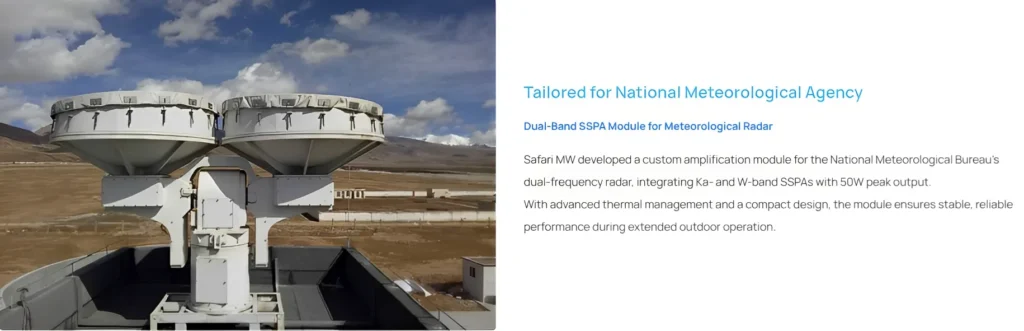

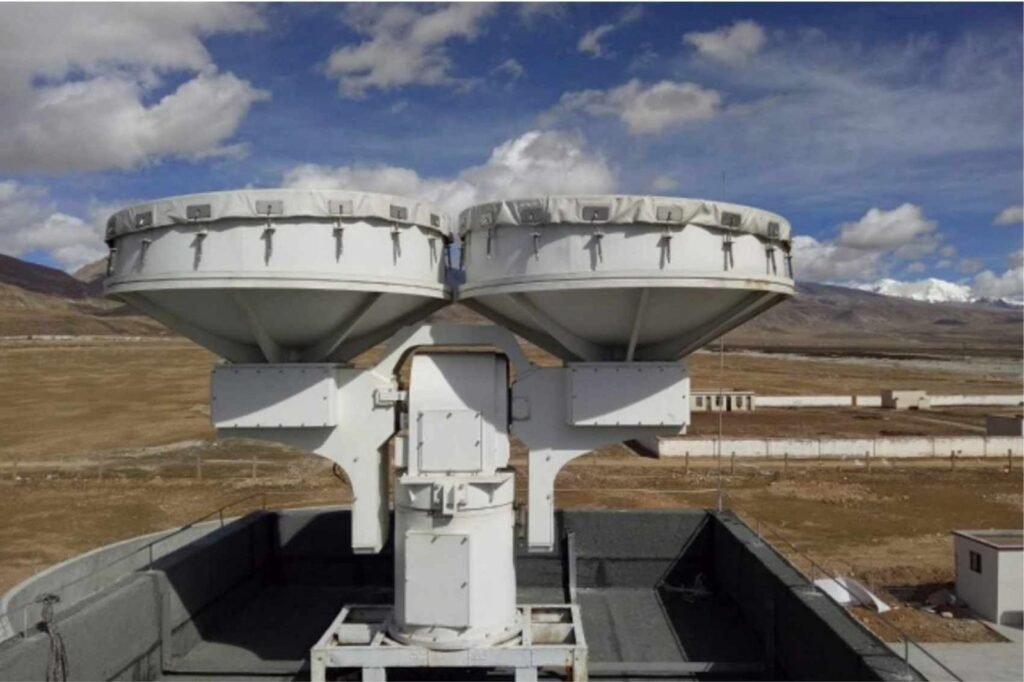

Tailored for National Meteorological Agency
Dual-Band SSPA Module for Meteorological Radar
Safari MW developed a custom amplification module for the National Meteorological Bureau’s dual-frequency radar, integrating Ka- and W-band SSPAs with 50W peak output.
With advanced thermal management and a compact design, the module ensures stable, reliable performance during extended outdoor operation.

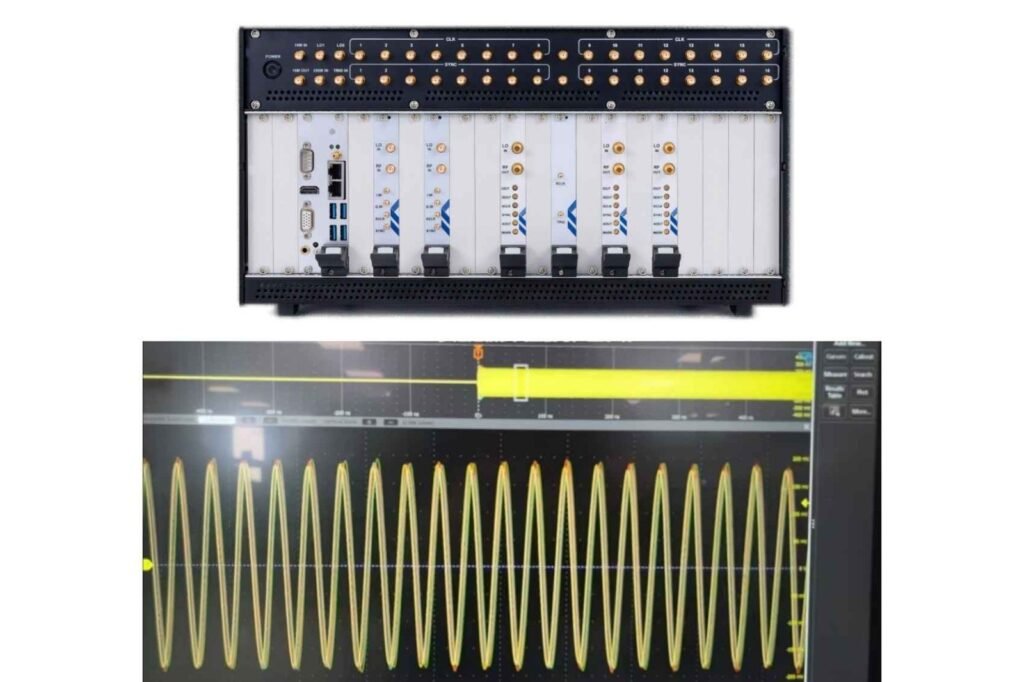

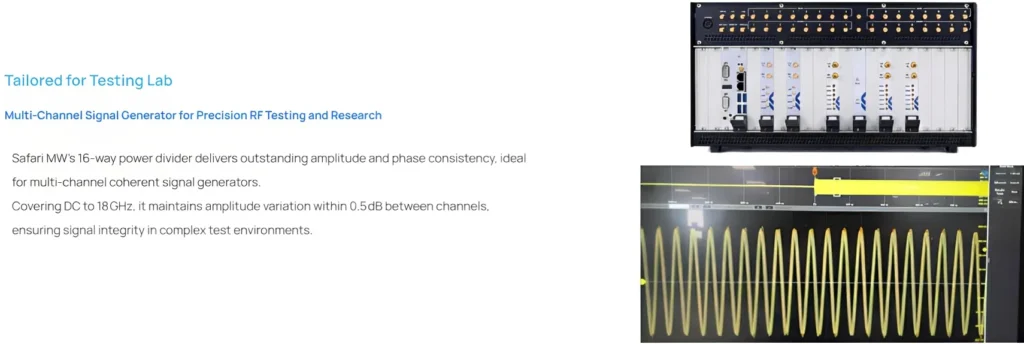

Tailored for Testing Lab
Multi-Channel Signal Generator for Precision RF Testing and Research
Safari MW’s 16-way power divider delivers outstanding amplitude and phase consistency, ideal for multi-channel coherent signal generators.
Covering DC to 18 GHz, it maintains amplitude variation within 0.5 dB between channels, ensuring signal integrity in complex test environments.

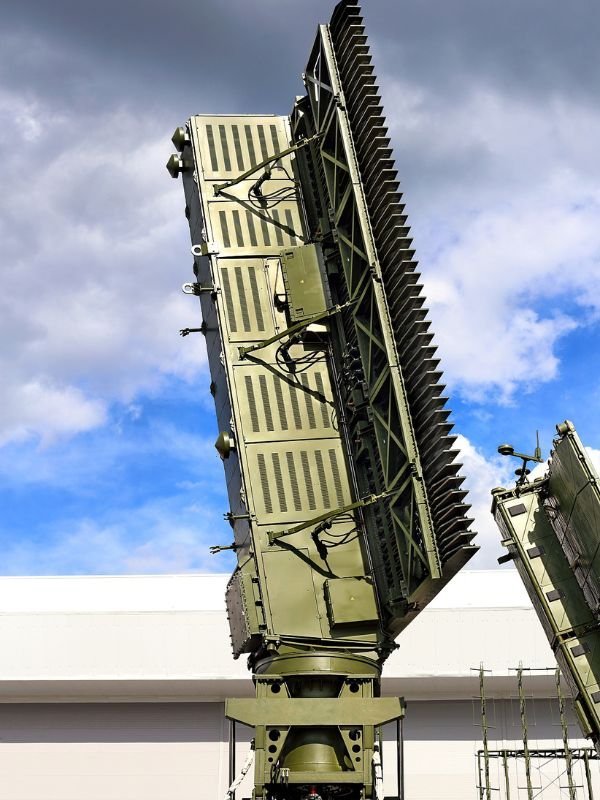

Tailored for Defense Contractors
Real-time Polarization Switching Link for Transmitted Signals
Safari MW’s custom RF switch handles 100W continuous transmission with an ultra-fast 20 ns switching time.
Available in X, Ku, and Ka bands, it is designed for defense contractors requiring frequent polarization switching under high-power signal conditions.
The solution delivers speed, power, and precision—tailored for mission-critical performance.
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
Our RF & Microwave components cover a wide frequency range, from DC up to 110 GHz, catering to a variety of applications in telecommunications, radar systems, satellite communication, and more.
Yes, we specialize in providing customized solutions. Whether you need specific gain levels, frequency ranges, or unique packaging, our team can tailor our products to meet your exact requirements.
We maintain strict quality control processes, including multiple testing phases, to ensure our components meet the highest industry standards. Our products undergo rigorous testing for parameters such as gain, noise figure, frequency response, and reliability.
Yes, we offer sample units to help you evaluate our products before placing a larger order. Please contact our sales team to discuss your sample requirements.
Yes, our products come with a standard 2-year warranty. We stand by the quality and reliability of our components, and our technical support team is always available to assist with any issues.
Looking for a reliable RF component supplier you can count on?
Custom RF components. Reliable delivery. Factory-direct support.
Get Samples Now !
Fast response. Low MOQ. Samples shipped within days.

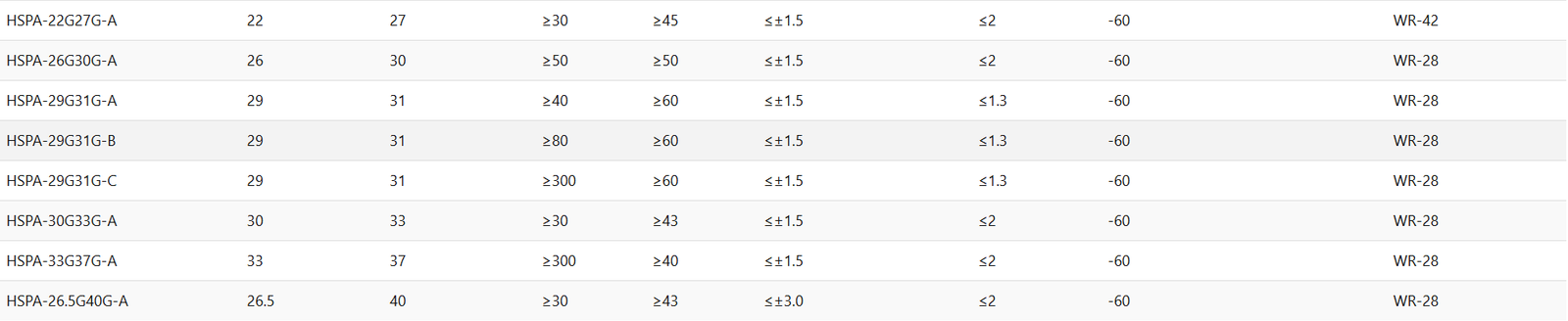

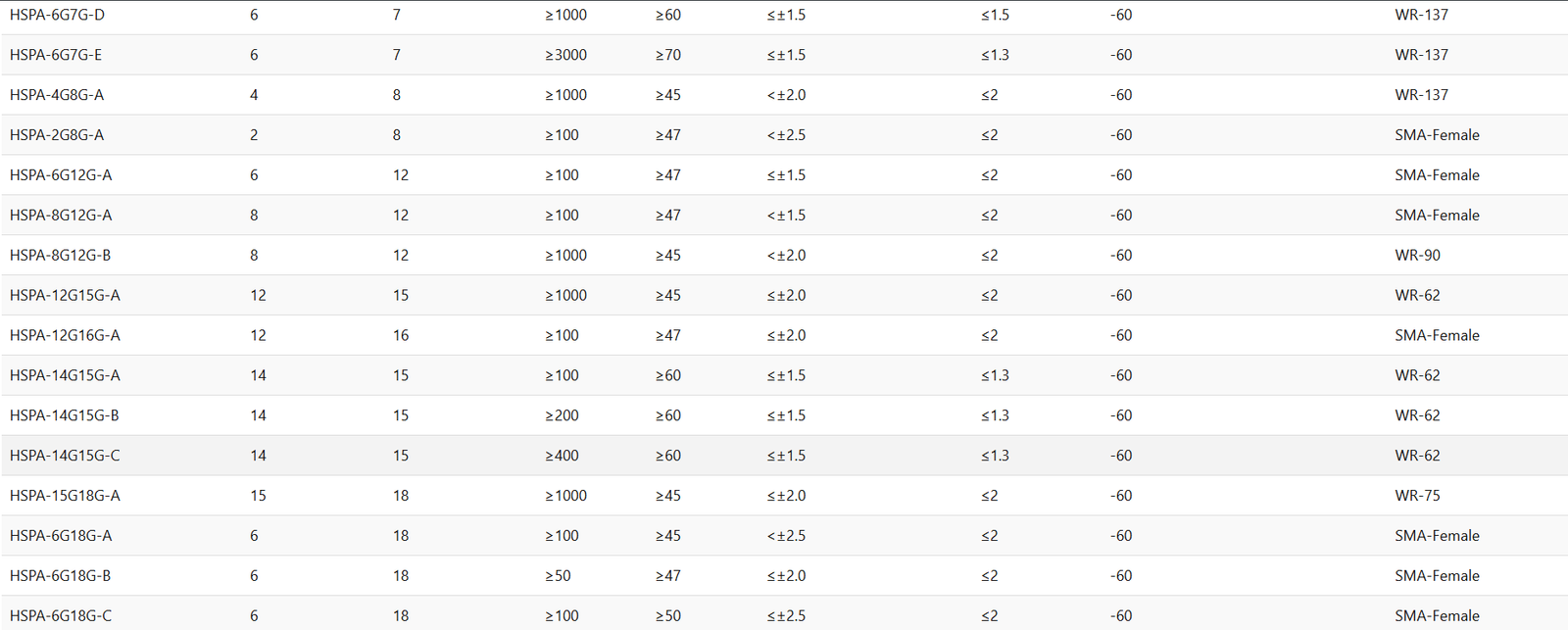

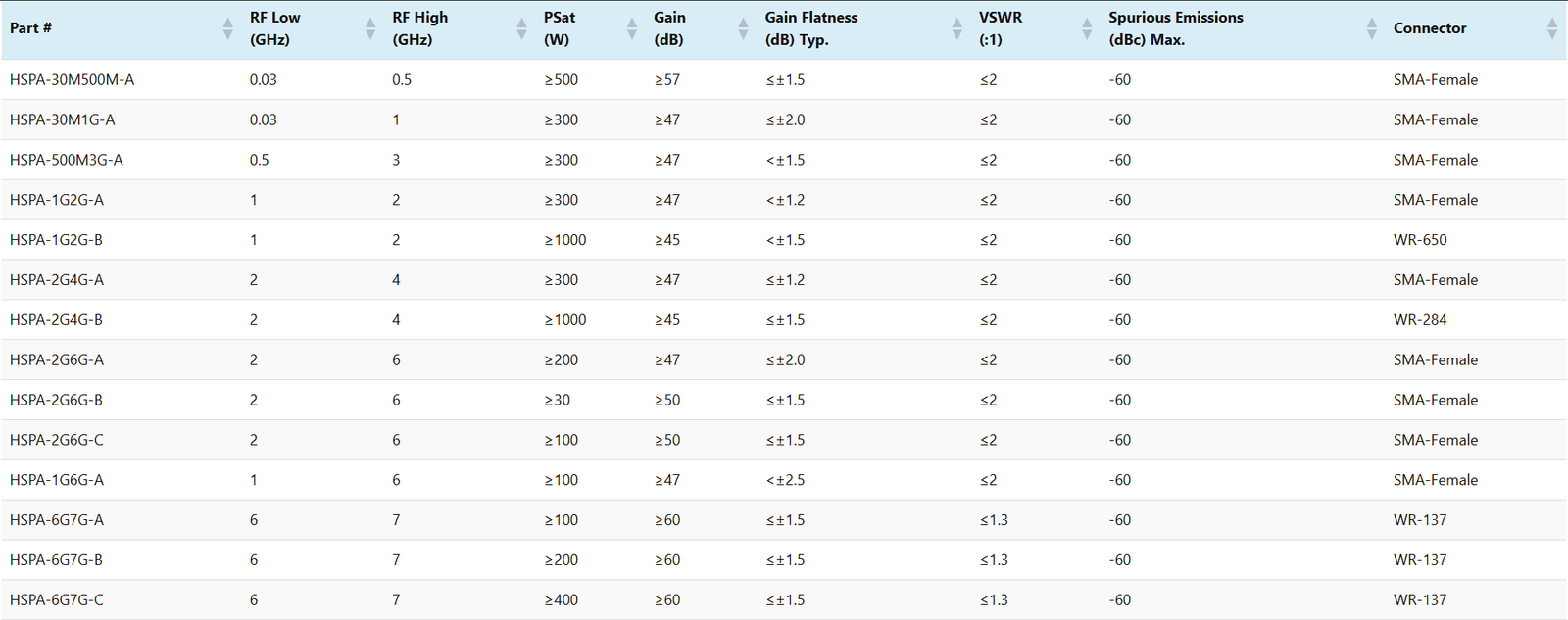

High Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (W) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| HSPA-30M500M-A | 0.03 | 0.5 | ≥500 | ≥57 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-30M1G-A | 0.03 | 1 | ≥300 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-500M3G-A | 0.5 | 3 | ≥300 | ≥47 | <±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-1G2G-A | 1 | 2 | ≥300 | ≥47 | <±1.2 | ≤2 | -60 | SMA-Female |
| HSPA-1G2G-B | 1 | 2 | ≥1000 | ≥45 | <±1.5 | ≤2 | -60 | WR-650 |
| HSPA-2G4G-A | 2 | 4 | ≥300 | ≥47 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| HSPA-2G4G-B | 2 | 4 | ≥1000 | ≥45 | ≤±1.5 | ≤2 | -60 | WR-284 |
| HSPA-2G6G-A | 2 | 6 | ≥200 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-2G6G-B | 2 | 6 | ≥30 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-2G6G-C | 2 | 6 | ≥100 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-1G6G-A | 1 | 6 | ≥100 | ≥47 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G7G-A | 6 | 7 | ≥100 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-B | 6 | 7 | ≥200 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-C | 6 | 7 | ≥400 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-6G7G-D | 6 | 7 | ≥1000 | ≥60 | ≤±1.5 | ≤1.5 | -60 | WR-137 |
| HSPA-6G7G-E | 6 | 7 | ≥3000 | ≥70 | ≤±1.5 | ≤1.3 | -60 | WR-137 |
| HSPA-4G8G-A | 4 | 8 | ≥1000 | ≥45 | <±2.0 | ≤2 | -60 | WR-137 |
| HSPA-2G8G-A | 2 | 8 | ≥100 | ≥47 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G12G-A | 6 | 12 | ≥100 | ≥47 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-8G12G-A | 8 | 12 | ≥100 | ≥47 | <±1.5 | ≤2 | -60 | SMA-Female |
| HSPA-8G12G-B | 8 | 12 | ≥1000 | ≥45 | <±2.0 | ≤2 | -60 | WR-90 |
| HSPA-12G15G-A | 12 | 15 | ≥1000 | ≥45 | ≤±2.0 | ≤2 | -60 | WR-62 |
| HSPA-12G16G-A | 12 | 16 | ≥100 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-14G15G-A | 14 | 15 | ≥100 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-14G15G-B | 14 | 15 | ≥200 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-14G15G-C | 14 | 15 | ≥400 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-62 |
| HSPA-15G18G-A | 15 | 18 | ≥1000 | ≥45 | ≤±2.0 | ≤2 | -60 | WR-75 |
| HSPA-6G18G-A | 6 | 18 | ≥100 | ≥45 | <±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-6G18G-B | 6 | 18 | ≥50 | ≥47 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| HSPA-6G18G-C | 6 | 18 | ≥100 | ≥50 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| HSPA-22G27G-A | 22 | 27 | ≥30 | ≥45 | ≤±1.5 | ≤2 | -60 | WR-42 |
| HSPA-26G30G-A | 26 | 30 | ≥50 | ≥50 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-29G31G-A | 29 | 31 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-29G31G-B | 29 | 31 | ≥80 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-29G31G-C | 29 | 31 | ≥300 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| HSPA-30G33G-A | 30 | 33 | ≥30 | ≥43 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-33G37G-A | 33 | 37 | ≥300 | ≥40 | ≤±1.5 | ≤2 | -60 | WR-28 |
| HSPA-26.5G40G-A | 26.5 | 40 | ≥30 | ≥43 | ≤±3.0 | ≤2 | -60 | WR-28 |

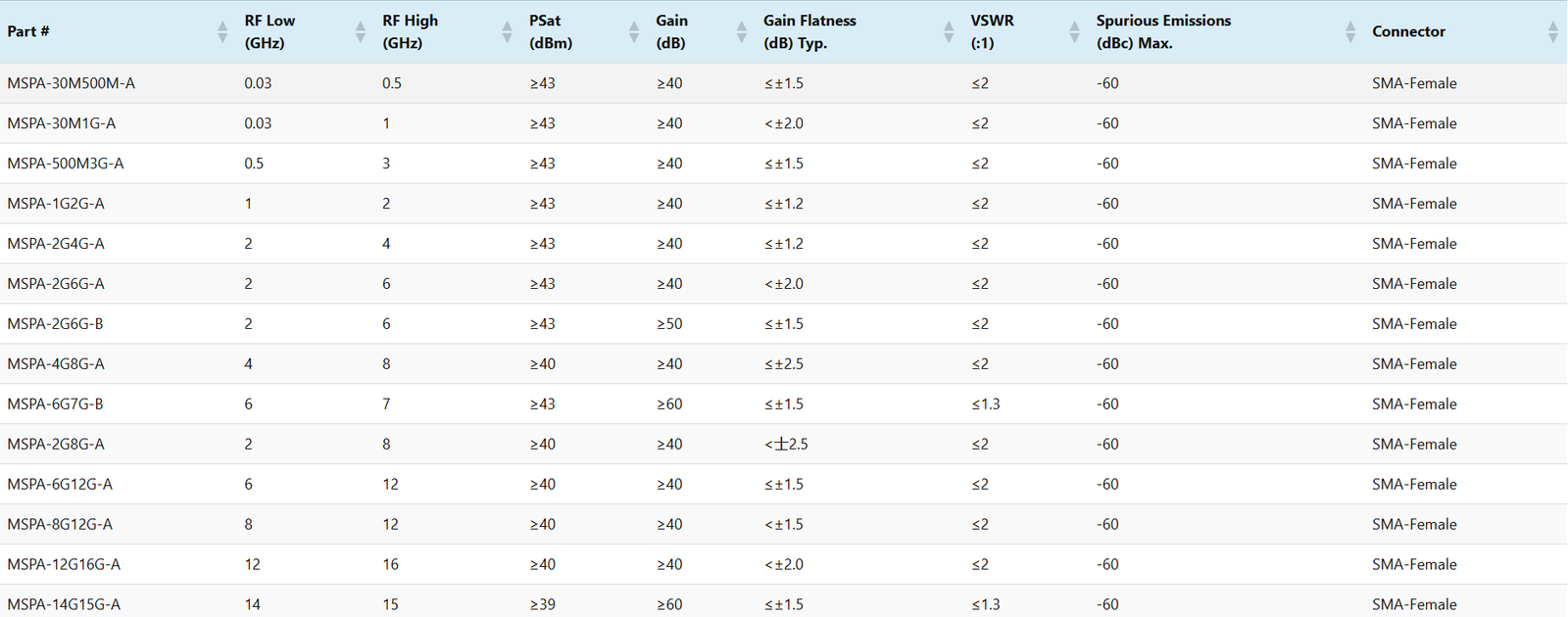

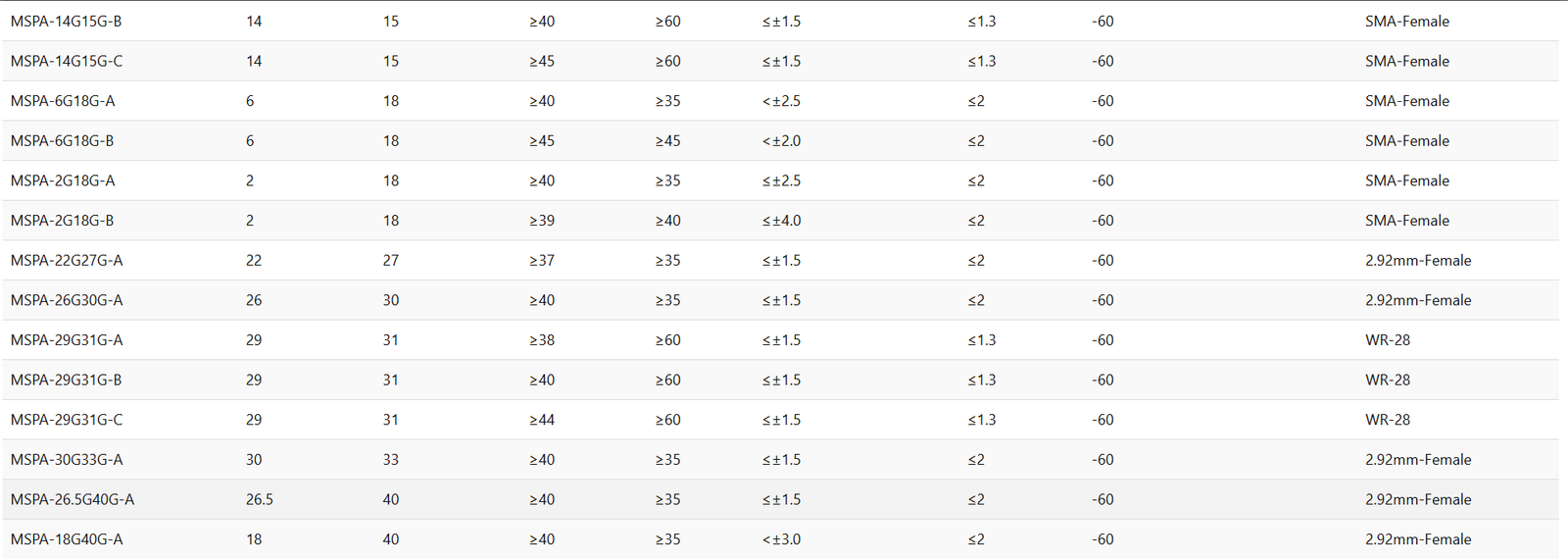

Medium Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (dBm) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| MSPA-30M500M-A | 0.03 | 0.5 | ≥43 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-30M1G-A | 0.03 | 1 | ≥43 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-500M3G-A | 0.5 | 3 | ≥43 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-1G2G-A | 1 | 2 | ≥43 | ≥40 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| MSPA-2G4G-A | 2 | 4 | ≥43 | ≥40 | ≤±1.2 | ≤2 | -60 | SMA-Female |
| MSPA-2G6G-A | 2 | 6 | ≥43 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-2G6G-B | 2 | 6 | ≥43 | ≥50 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-4G8G-A | 4 | 8 | ≥40 | ≥40 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G7G-B | 6 | 7 | ≥43 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-2G8G-A | 2 | 8 | ≥40 | ≥40 | <士2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G12G-A | 6 | 12 | ≥40 | ≥40 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-8G12G-A | 8 | 12 | ≥40 | ≥40 | <±1.5 | ≤2 | -60 | SMA-Female |
| MSPA-12G16G-A | 12 | 16 | ≥40 | ≥40 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-14G15G-A | 14 | 15 | ≥39 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-14G15G-B | 14 | 15 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-14G15G-C | 14 | 15 | ≥45 | ≥60 | ≤±1.5 | ≤1.3 | -60 | SMA-Female |
| MSPA-6G18G-A | 6 | 18 | ≥40 | ≥35 | <±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-6G18G-B | 6 | 18 | ≥45 | ≥45 | <±2.0 | ≤2 | -60 | SMA-Female |
| MSPA-2G18G-A | 2 | 18 | ≥40 | ≥35 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| MSPA-2G18G-B | 2 | 18 | ≥39 | ≥40 | ≤±4.0 | ≤2 | -60 | SMA-Female |
| MSPA-22G27G-A | 22 | 27 | ≥37 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-26G30G-A | 26 | 30 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-29G31G-A | 29 | 31 | ≥38 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-29G31G-B | 29 | 31 | ≥40 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-29G31G-C | 29 | 31 | ≥44 | ≥60 | ≤±1.5 | ≤1.3 | -60 | WR-28 |
| MSPA-30G33G-A | 30 | 33 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-26.5G40G-A | 26.5 | 40 | ≥40 | ≥35 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| MSPA-18G40G-A | 18 | 40 | ≥40 | ≥35 | <±3.0 | ≤2 | -60 | 2.92mm-Female |

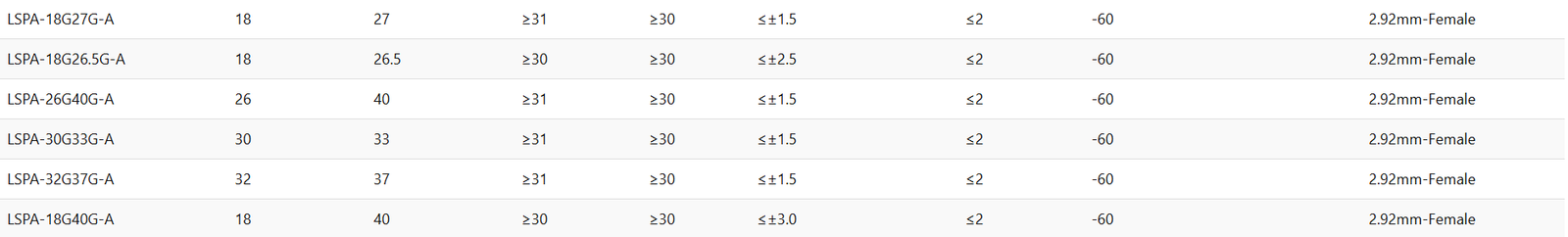

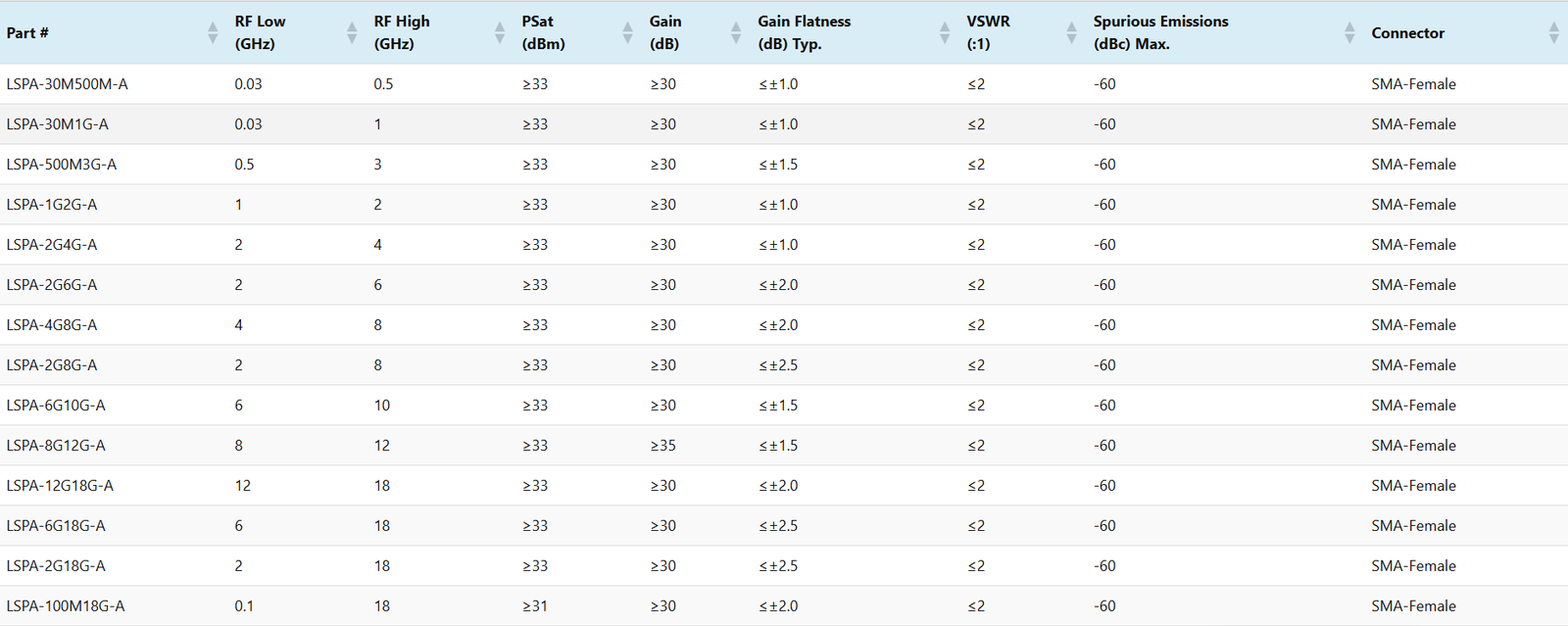

Low Power Saturated Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | PSat (dBm) | Gain (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Spurious Emissions (dBc) Max. | Connector |
|---|---|---|---|---|---|---|---|---|
| LSPA-30M500M-A | 0.03 | 0.5 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-30M1G-A | 0.03 | 1 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-500M3G-A | 0.5 | 3 | ≥33 | ≥30 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-1G2G-A | 1 | 2 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G4G-A | 2 | 4 | ≥33 | ≥30 | ≤±1.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G6G-A | 2 | 6 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-4G8G-A | 4 | 8 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-2G8G-A | 2 | 8 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-6G10G-A | 6 | 10 | ≥33 | ≥30 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-8G12G-A | 8 | 12 | ≥33 | ≥35 | ≤±1.5 | ≤2 | -60 | SMA-Female |
| LSPA-12G18G-A | 12 | 18 | ≥33 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-6G18G-A | 6 | 18 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-2G18G-A | 2 | 18 | ≥33 | ≥30 | ≤±2.5 | ≤2 | -60 | SMA-Female |
| LSPA-100M18G-A | 0.1 | 18 | ≥31 | ≥30 | ≤±2.0 | ≤2 | -60 | SMA-Female |
| LSPA-18G27G-A | 18 | 27 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-18G26.5G-A | 18 | 26.5 | ≥30 | ≥30 | ≤±2.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-26G40G-A | 26 | 40 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-30G33G-A | 30 | 33 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-32G37G-A | 32 | 37 | ≥31 | ≥30 | ≤±1.5 | ≤2 | -60 | 2.92mm-Female |
| LSPA-18G40G-A | 18 | 40 | ≥30 | ≥30 | ≤±3.0 | ≤2 | -60 | 2.92mm-Female |
Wideband Millimeter-Wave Power Amplifiers Data Sheet
| Part # | Frequency (GHz) | Saturated Power (dBm Typ.) | Gain (dB Typ.) | Voltage (V) | Input Port | Output Port |
|---|---|---|---|---|---|---|
| WMWPA-40G60G-17-A | 40-60 | 17 | 14 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-40G60G-20-A | 40-60 | 20 | 17 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-26-A | 50-60 | 26 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G60G-29-A | 50-60 | 29 | 15 | 12 | WR19-UG383 | WR19-UG383 |
| WMWPA-50G75G-17-A | 50-75 | 17 | 16 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-50G75G-29-A | 50-75 | 29 | 15 | 16 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-52G72G-27-A | 52-72 | 27 | 12.5 | 12 | WR15-UG387/UM | WR15-UG387/UM |
| WMWPA-55G85G-20-A | 55-85 | 20 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-23-A | 71-76 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-26-A | 71-76 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G76G-29-A | 71-76 | 29 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-23-A | 71-86 | 23 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-26-A | 71-86 | 26 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-71G86G-29-A | 71-86 | 29 | 14 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-17-A | 60-90 | 17 | 15 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-60G90G-20-A | 60-90 | 20 | 13 | 12 | WR12-UG387/UM | WR12-UG387/UM |
| WMWPA-81G86G-27-A | 81-86 | 27 | 19 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-82G88G-25-A | 82-88 | 25 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-23-A | 80-90 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-26-A | 80-90 | 26 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G90G-29-A | 80-90 | 29 | 14 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-23-A | 90-100 | 23 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-26-A | 90-100 | 26 | 13 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-90G100G-29-A | 90-100 | 29 | 10 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-17-A | 75-110 | 17 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-20-A | 75-110 | 20 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-75G110G-22-A | 75-110 | 22 | 15 | 12 | WR10-UG387/UM | WR10-UG387/UM |
| WMWPA-80G130G-18-A | 80-130 | 18 | 13 | 12 | WR9-UG387/UM | WR9-UG387/UM |
| WMWPA-80G130G-21-A | 80-130 | 21 | 13 | 12 | WR8-UG387/UM | WR8-UG387/UM |

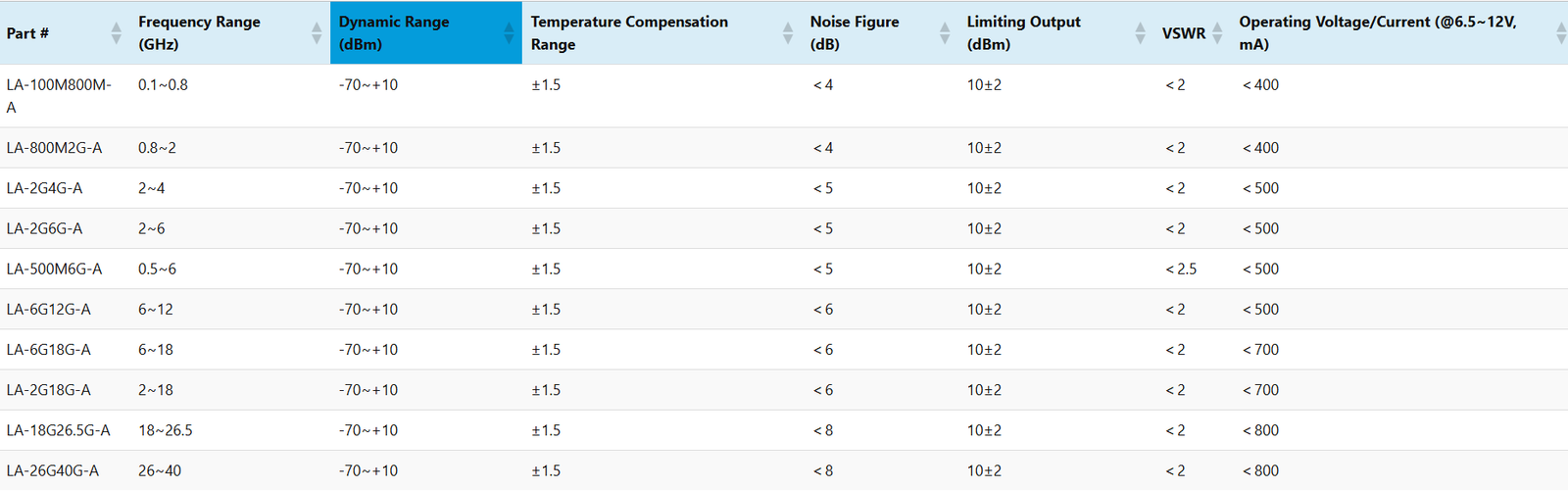

Wideband Limiting Amplifier Data Sheet
| Part # | Frequency Range (GHz) | Dynamic Range (dBm) | Temperature Compensation Range | Noise Figure (dB) | Limiting Output (dBm) | VSWR | Operating Voltage/Current (@6.5~12V, mA) |
|---|---|---|---|---|---|---|---|
| LA-100M800M-A | 0.1~0.8 | -70~+10 | ±1.5 | ＜4 | 10±2 | ＜2 | ＜400 |
| LA-800M2G-A | 0.8~2 | -70~+10 | ±1.5 | ＜4 | 10±2 | ＜2 | ＜400 |
| LA-2G4G-A | 2~4 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2 | ＜500 |
| LA-2G6G-A | 2~6 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2 | ＜500 |
| LA-500M6G-A | 0.5~6 | -70~+10 | ±1.5 | ＜5 | 10±2 | ＜2.5 | ＜500 |
| LA-6G12G-A | 6~12 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜500 |
| LA-6G18G-A | 6~18 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜700 |
| LA-2G18G-A | 2~18 | -70~+10 | ±1.5 | ＜6 | 10±2 | ＜2 | ＜700 |
| LA-18G26.5G-A | 18~26.5 | -70~+10 | ±1.5 | ＜8 | 10±2 | ＜2 | ＜800 |
| LA-26G40G-A | 26~40 | -70~+10 | ±1.5 | ＜8 | 10±2 | ＜2 | ＜800 |

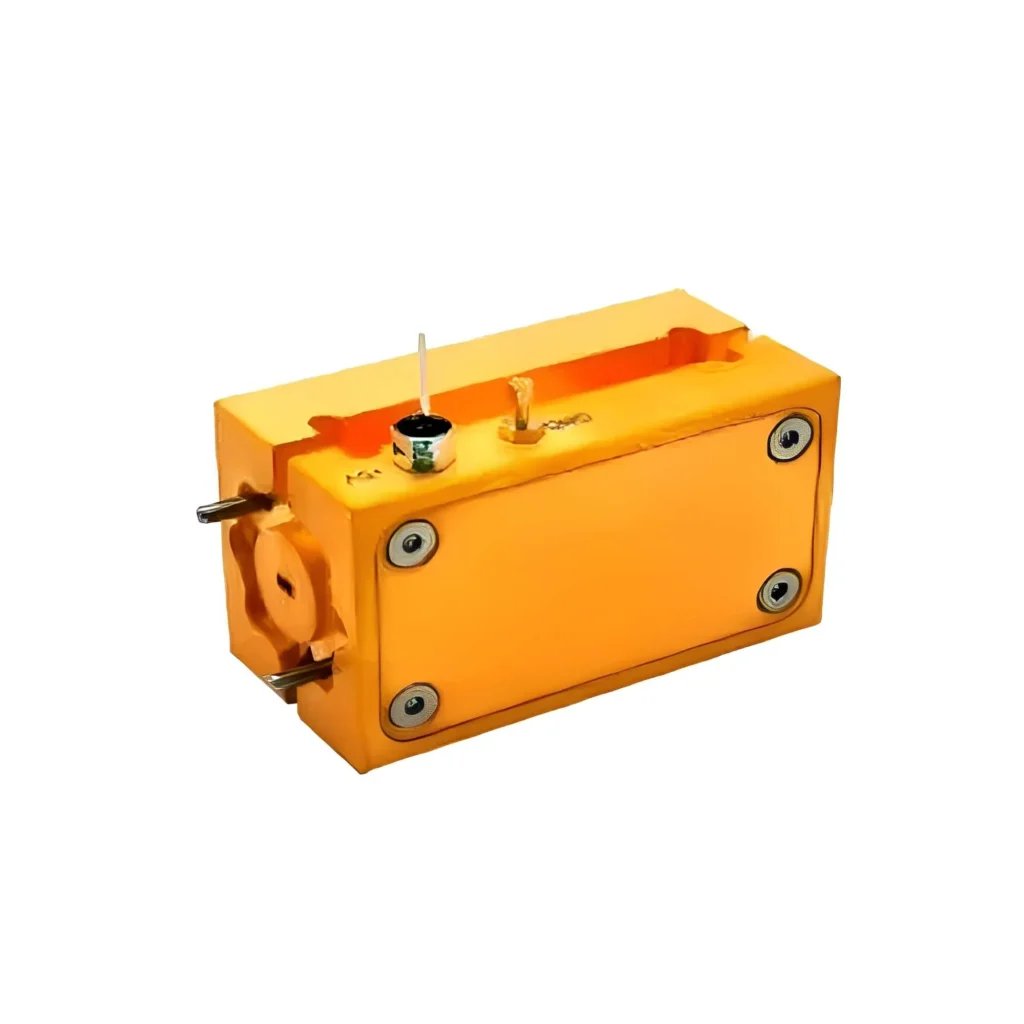

High Frequency LNA Data Sheet
| Part # | Frequency (GHz) | Noise Figure (dB Max.) | Gain (dB Max.) | Voltage (V Min.) | Input/Output Ports |
|---|---|---|---|---|---|
| MWLNA-3-40G50G-A | 40-50 | 3 | 23 | 12 | WR22-UG383 |
| MWLNA-5-50G75G-A | 50-75 | 5 | 18 | 12 | WR15-UG387/UM |
| MWLNA-5-50G75G-A | 50-75 | 5 | 36 | 12 | WR15-UG387/UM |
| MWLNA-7-60G90G-A | 60-90 | 7 | 15 | 12 | WR12-UG387/UM |
| MWLNA-7-60G90G-A | 60-90 | 7 | 30 | 12 | WR12-UG387/UM |
| MWLNA-4-71G86G-A | 71-86 | 4 | 21 | 12 | WR12-UG387/UM |
| MWLNA-4-92G96G-A | 92-96 | 4 | 42.5 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 20 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 15 | 12 | WR10-UG387/UM |
| MWLNA-4-75G110G-A | 75-110 | 4 | 30 | 12 | WR10-UG387/UM |
| MWLNA-6-110G160G-A | 110-160 | 6 | 17 | 12 | WR6.5-UG387/UM |

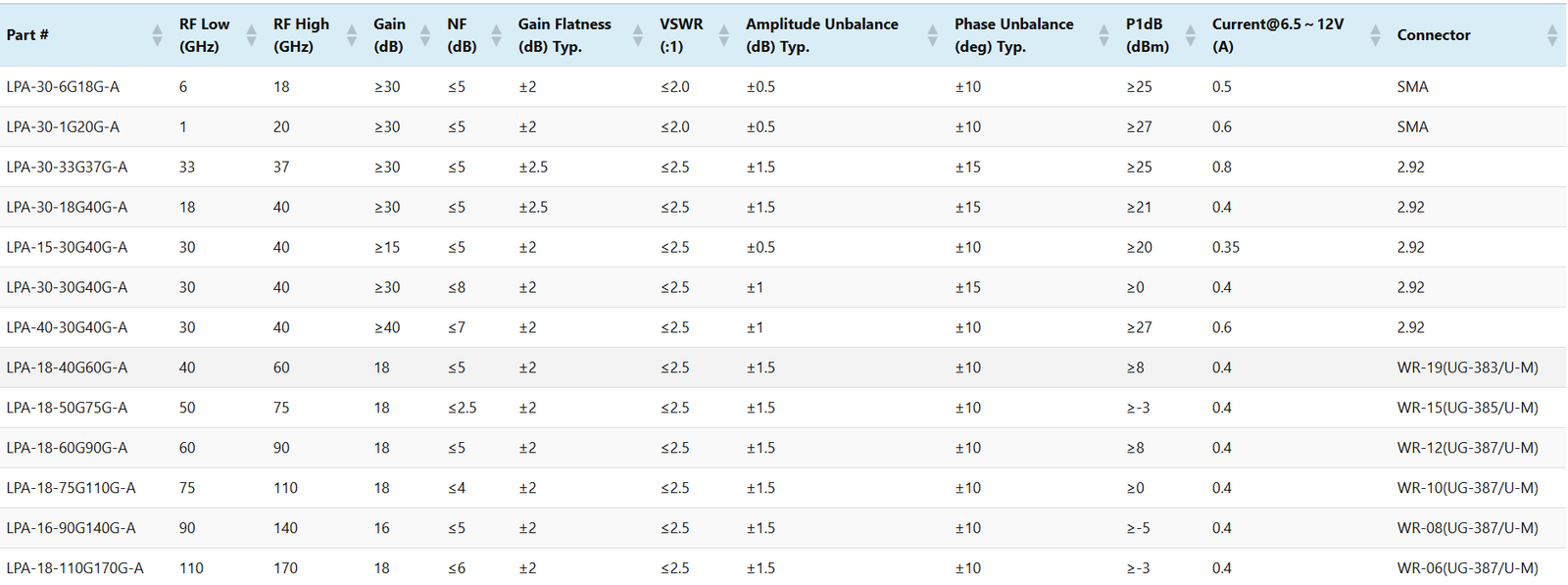

Linear Power Amplifier Data Sheet
| Part # | RF Low (GHz) | RF High (GHz) | Gain (dB) | NF (dB) | Gain Flatness (dB) Typ. | VSWR (:1) | Amplitude Unbalance (dB) Typ. | Phase Unbalance (deg) Typ. | P1dB (dBm) | Current@6.5～12V (A) | Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPA-30-6G18G-A | 6 | 18 | ≥30 | ≤5 | ±2 | ≤2.0 | ±0.5 | ±10 | ≥25 | 0.5 | SMA |
| LPA-30-1G20G-A | 1 | 20 | ≥30 | ≤5 | ±2 | ≤2.0 | ±0.5 | ±10 | ≥27 | 0.6 | SMA |
| LPA-30-33G37G-A | 33 | 37 | ≥30 | ≤5 | ±2.5 | ≤2.5 | ±1.5 | ±15 | ≥25 | 0.8 | 2.92 |
| LPA-30-18G40G-A | 18 | 40 | ≥30 | ≤5 | ±2.5 | ≤2.5 | ±1.5 | ±15 | ≥21 | 0.4 | 2.92 |
| LPA-15-30G40G-A | 30 | 40 | ≥15 | ≤5 | ±2 | ≤2.5 | ±0.5 | ±10 | ≥20 | 0.35 | 2.92 |
| LPA-30-30G40G-A | 30 | 40 | ≥30 | ≤8 | ±2 | ≤2.5 | ±1 | ±15 | ≥0 | 0.4 | 2.92 |
| LPA-40-30G40G-A | 30 | 40 | ≥40 | ≤7 | ±2 | ≤2.5 | ±1 | ±10 | ≥27 | 0.6 | 2.92 |
| LPA-18-40G60G-A | 40 | 60 | 18 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥8 | 0.4 | WR-19(UG-383/U-M) |
| LPA-18-50G75G-A | 50 | 75 | 18 | ≤2.5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-3 | 0.4 | WR-15(UG-385/U-M) |
| LPA-18-60G90G-A | 60 | 90 | 18 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥8 | 0.4 | WR-12(UG-387/U-M) |
| LPA-18-75G110G-A | 75 | 110 | 18 | ≤4 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥0 | 0.4 | WR-10(UG-387/U-M) |
| LPA-16-90G140G-A | 90 | 140 | 16 | ≤5 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-5 | 0.4 | WR-08(UG-387/U-M) |
| LPA-18-110G170G-A | 110 | 170 | 18 | ≤6 | ±2 | ≤2.5 | ±1.5 | ±10 | ≥-3 | 0.4 | WR-06(UG-387/U-M) |

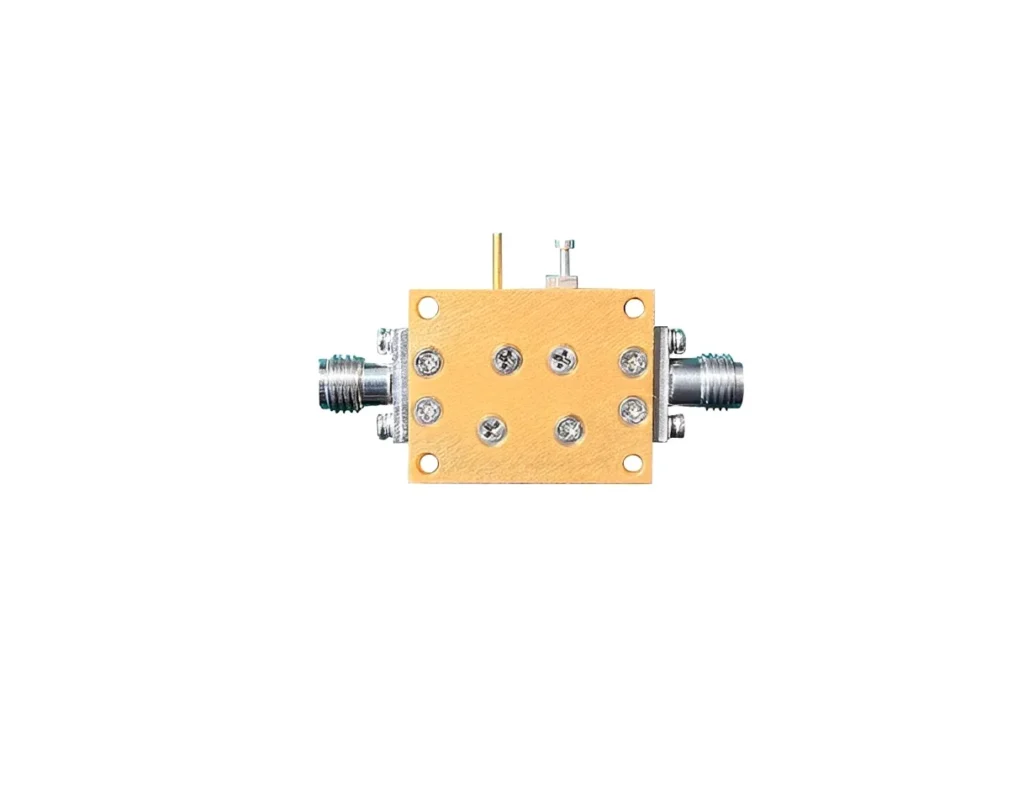

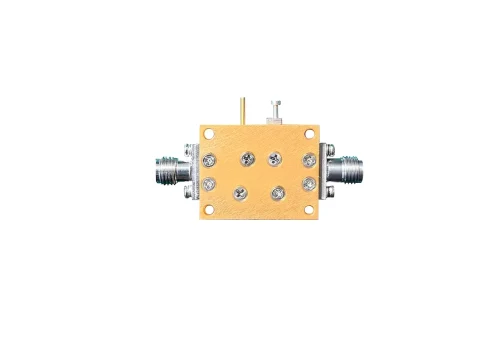

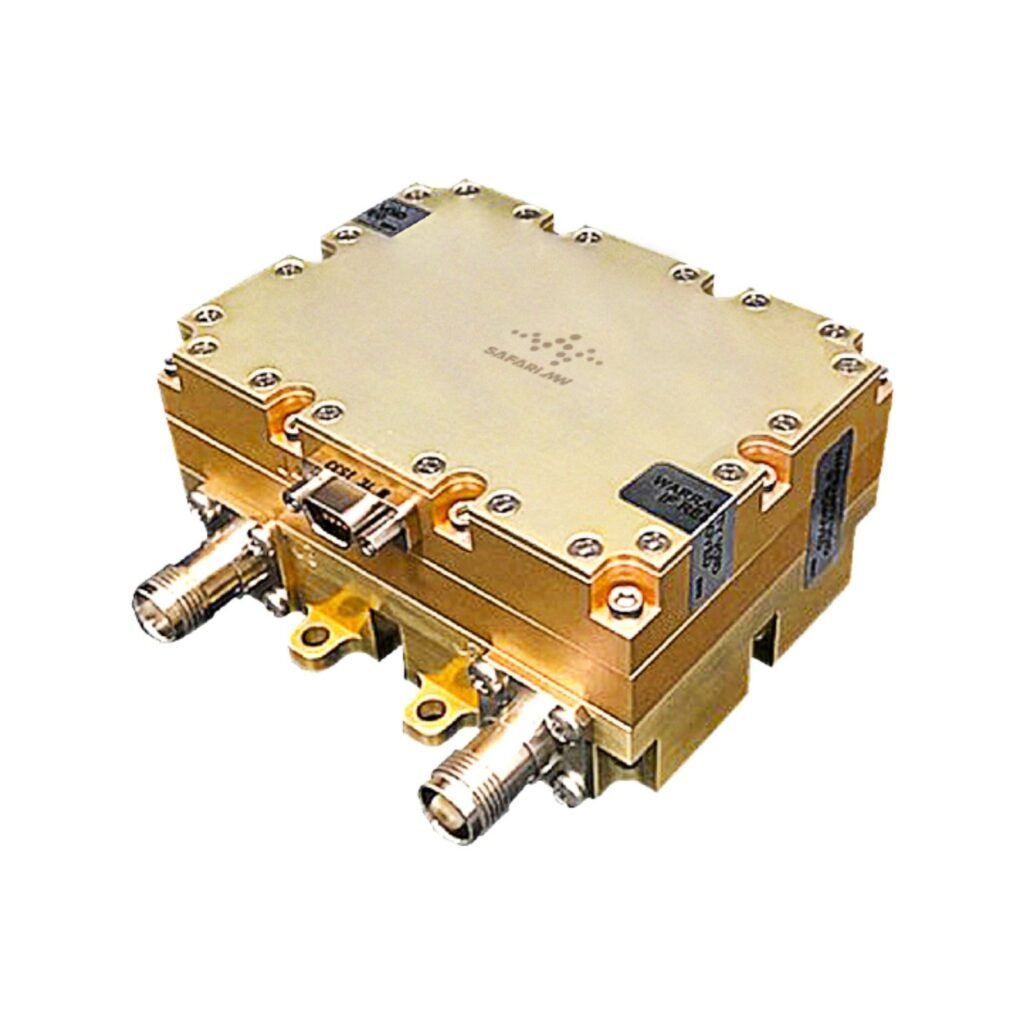

High Power Coaxial Pin Diode Switch
| Part # | Switch Type | RF Low (GHz) | RF High (GHz) | Absorbitive | Reflective | Insertion Loss (dB) Max. | RF Power (dBm) Max. | Isolation (dB) Min. | Transition Time (nsec) Typ. | VSWR (:1) Max. | Control |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPST-20M1G-A | SPST | 0.02 | 1.0 | Y | N | 0.8 | 30 | 70 | 50 | 1.4 | TTL |
| SPST-1G2G-A | SPST | 1.0 | 2.0 | Y | N | 1.2 | 30 | 70 | 50 | 1.4 | TTL |
| SPST-2G6G-A | SPST | 2.0 | 6.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.6 | TTL |
| SPST-8G12G-A | SPST | 8.0 | 12.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.6 | TTL |
| SPST-6G18G-A | SPST | 6.0 | 18.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.8 | TTL |
| SPST-18G26.5G-A | SPST | 18.0 | 26.5 | Y | N | 2.5 | 30 | 60 | 50 | 2.0 | TTL |
| SPST-26.5G40G-A | SPST | 26.5 | 40.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SPDT-20M1G-A | SPDT | 0.02 | 1.0 | Y | N | 1.0 | 30 | 70 | 50 | 1.4 | TTL |
| SPDT-1G2G-A | SPDT | 1.0 | 2.0 | Y | N | 1.2 | 30 | 70 | 50 | 1.4 | TTL |
| SPDT-2G6G-A | SPDT | 2.0 | 6.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.6 | TTL |
| SPDT-8G12G-A | SPDT | 8.0 | 12.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.6 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | N | Y | 2.3 | 30 | 60 | 100 | 1.8 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | N | Y | 2.4 | 30 | 60 | 100 | 1.8 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | Y | N | 3.6 | 27 | 80 | 100 | 2.0 | TTL |
| SPDT-400M18G-A | SPDT | 0.4 | 18.0 | Y | N | 3.6 | 27 | 80 | 100 | 2.0 | TTL |
| SPDT-6G18G-A | SPDT | 6.0 | 18.0 | Y | N | 2.0 | 30 | 60 | 50 | 1.8 | TTL |
| SPDT-18G26.5G-A | SPDT | 18.0 | 26.5 | Y | N | 2.5 | 30 | 60 | 50 | 2.0 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | N | Y | 3.5 | 30 | 40 | 100 | 2.2 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | N | Y | 3.5 | 30 | 40 | 100 | 3.0 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | Y | N | 3.5 | 23 | 60 | 100 | 2.5 | TTL |
| SPDT-18G40G-A | SPDT | 18.0 | 40.0 | Y | N | 3.8 | 23 | 60 | 100 | 3.2 | TTL |
| SPDT-26.5G40G-A | SPDT | 26.5 | 40.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP3T-20M1G-A | SP3T | 0.02 | 1.0 | Y | N | 1.3 | 30 | 70 | 50 | 1.4 | TTL |
| SP3T-1G2G-A | SP3T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.4 | TTL |
| SP3T-2G6G-A | SP3T | 2.0 | 6.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.6 | TTL |
| SP3T-8G12G-A | SP3T | 8.0 | 12.0 | Y | N | 2.2 | 30 | 70 | 50 | 1.6 | TTL |
| SP3T-6G18G-A | SP3T | 6.0 | 18.0 | Y | N | 2.5 | 30 | 60 | 50 | 1.8 | TTL |
| SP3T-18G26.5G-A | SP3T | 18.0 | 26.5 | Y | N | 2.7 | 30 | 60 | 50 | 2.0 | TTL |
| SP3T-26.5G40G-A | SP3T | 26.5 | 40.0 | Y | N | 3.5 | 30 | 60 | 50 | 2.0 | TTL |
| SP4T-20M1G-A | SP4T | 0.02 | 1.0 | Y | N | 1.5 | 30 | 70 | 50 | 1.5 | TTL |
| SP4T-1G2G-A | SP4T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.5 | TTL |
| SP4T-2G6G-A | SP4T | 2.0 | 6.0 | Y | N | 2.4 | 30 | 70 | 50 | 1.8 | TTL |
| SP4T-8G12G-A | SP4T | 8.0 | 12.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | N | Y | 3.2 | 30 | 60 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | N | Y | 3.0 | 30 | 60 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | Y | N | 4.0 | 27 | 70 | 100 | 2.0 | TTL |
| SP4T-400M18G-A | SP4T | 0.4 | 18.0 | Y | N | 4.3 | 27 | 70 | 100 | 2.0 | TTL |
| SP4T-6G18G-A | SP4T | 6.0 | 18.0 | Y | N | 2.8 | 30 | 60 | 50 | 2.0 | TTL |
| SP4T-18G26.5G-A | SP4T | 18.0 | 26.5 | Y | N | 3.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | N | Y | 4.5 | 30 | 40 | 100 | 2.2 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | N | Y | 5.0 | 30 | 40 | 100 | 3.0 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | Y | N | 4.8 | 23 | 60 | 100 | 2.5 | TTL |
| SP4T-18G40G-A | SP4T | 18.0 | 40.0 | Y | N | 5.5 | 23 | 60 | 100 | 3.2 | TTL |
| SP4T-26.5G40G-A | SP4T | 26.5 | 40.0 | Y | N | 4.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 3.5 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 4.5 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 5.0 | 30 | 65 | 2.0 | TTL | |||
| SP4T-30G40G-A | SP4T | 30.0 | 40.0 | 6.0 | 60 | 65 | 2.2 | TTL | |||
| SP5T-20M1G-A | SP5T | 0.02 | 1.0 | Y | N | 1.7 | 30 | 70 | 50 | 1.5 | TTL |
| SP5T-1G2G-A | SP5T | 1.0 | 2.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.5 | TTL |
| SP5T-2G6G-A | SP5T | 2.0 | 6.0 | Y | N | 2.8 | 30 | 70 | 50 | 1.8 | TTL |
| SP5T-8G12G-A | SP5T | 8.00 | 12.0 | Y | N | 2.8 | 30 | 70 | 50 | 1.8 | TTL |
| SP5T-6G18G-A | SP5T | 6.0 | 18.0 | Y | N | 2.8 | 30 | 60 | 50 | 2.0 | TTL |
| SP5T-18G26.5G-A | SP5T | 18.0 | 26.5 | Y | N | 3.2 | 30 | 60 | 50 | 2.2 | TTL |
| SP5T-26.5G40G-A | SP5T | 26.5 | 40.0 | Y | N | 4.2 | 30 | 60 | 50 | 2.2 | TTL |
| SP6T-20M1G-A | SP6T | 0.02 | 1.0 | Y | N | 1.8 | 30 | 70 | 50 | 1.5 | TTL |
| SP6T-1G2G-A | SP6T | 1.0 | 2.0 | Y | N | 1.6 | 30 | 70 | 50 | 1.5 | TTL |
| SP6T-2G6G-A | SP6T | 2.0 | 6.0 | Y | N | 2.4 | 30 | 70 | 50 | 1.8 | TTL |
| SP6T-8G12G-A | SP6T | 8.0 | 12.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | N | Y | 3.4 | 30 | 60 | 100 | 2.0 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | N | Y | 3.7 | 30 | 60 | 100 | 1.9 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | Y | N | 4.4 | 27 | 70 | 100 | 2.0 | TTL |
| SP6T-400M18G-A | SP6T | 0.4 | 18.0 | Y | N | 4.7 | 27 | 70 | 100 | 2.1 | TTL |
| SP6T-6G18G-A | SP6T | 6.0 | 18.0 | Y | N | 3.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP6T-18G26.5G-A | SP6T | 18.0 | 26.5 | Y | N | 3.5 | 30 | 60 | 50 | 2.2 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | N | Y | 4.0 | 30 | 40 | 100 | 2.2 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | N | Y | 5.0 | 30 | 40 | 100 | 3.0 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | Y | N | 5.3 | 23 | 60 | 100 | 2.5 | TTL |
| SP6T-18G40G-A | SP6T | 18.0 | 40.0 | Y | N | 5.5 | 23 | 60 | 100 | 3.0 | TTL |
| SP6T-26.5G40G-A | SP6T | 26.5 | 40.0 | Y | N | 4.5 | 30 | 60 | 50 | 2.5 | TTL |
| SP8T-20M1G-A | SP8T | 0.02 | 1.0 | Y | N | 2.0 | 30 | 70 | 50 | 1.5 | TTL |
| SP8T-1G2G-A | SP8T | 1.0 | 2.0 | Y | N | 2.5 | 30 | 70 | 50 | 1.5 | TTL |
| SP8T-2G6G-A | SP8T | 2.0 | 6.0 | Y | N | 3.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP8T-8G12G-A | SP8T | 8.0 | 12.0 | Y | N | 3.5 | 30 | 70 | 50 | 1.8 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | N | Y | 4.0 | 30 | 60 | 100 | 2.0 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | N | Y | 4.2 | 30 | 60 | 100 | 1.9 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | Y | N | 4.5 | 27 | 70 | 100 | 2.0 | TTL |
| SP8T-400M18G-A | SP8T | 0.4 | 18.0 | Y | N | 5.0 | 27 | 70 | 100 | 2.2 | TTL |
| SP8T-6G18G-A | SP8T | 6.0 | 18.0 | Y | N | 4.0 | 30 | 60 | 50 | 2.0 | TTL |
| SP8T-18G26.5G-A | SP8T | 18.0 | 26.5 | Y | N | 5.0 | 30 | 60 | 50 | 2.2 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | N | Y | 5.5 | 30 | 40 | 100 | 2.3 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | N | Y | 5.5 | 30 | 40 | 100 | 3.0 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | Y | N | 6.0 | 23 | 60 | 100 | 2.5 | TTL |
| SP8T-18G40G-A | SP8T | 18.0 | 40.0 | Y | N | 6.5 | 23 | 60 | 100 | 3.0 | TTL |
| SP8T-26.5G40G-A | SP8T | 26.5 | 40.0 | Y | N | 4.5 | 30 | 60 | 50 | 2.5 | TTL |

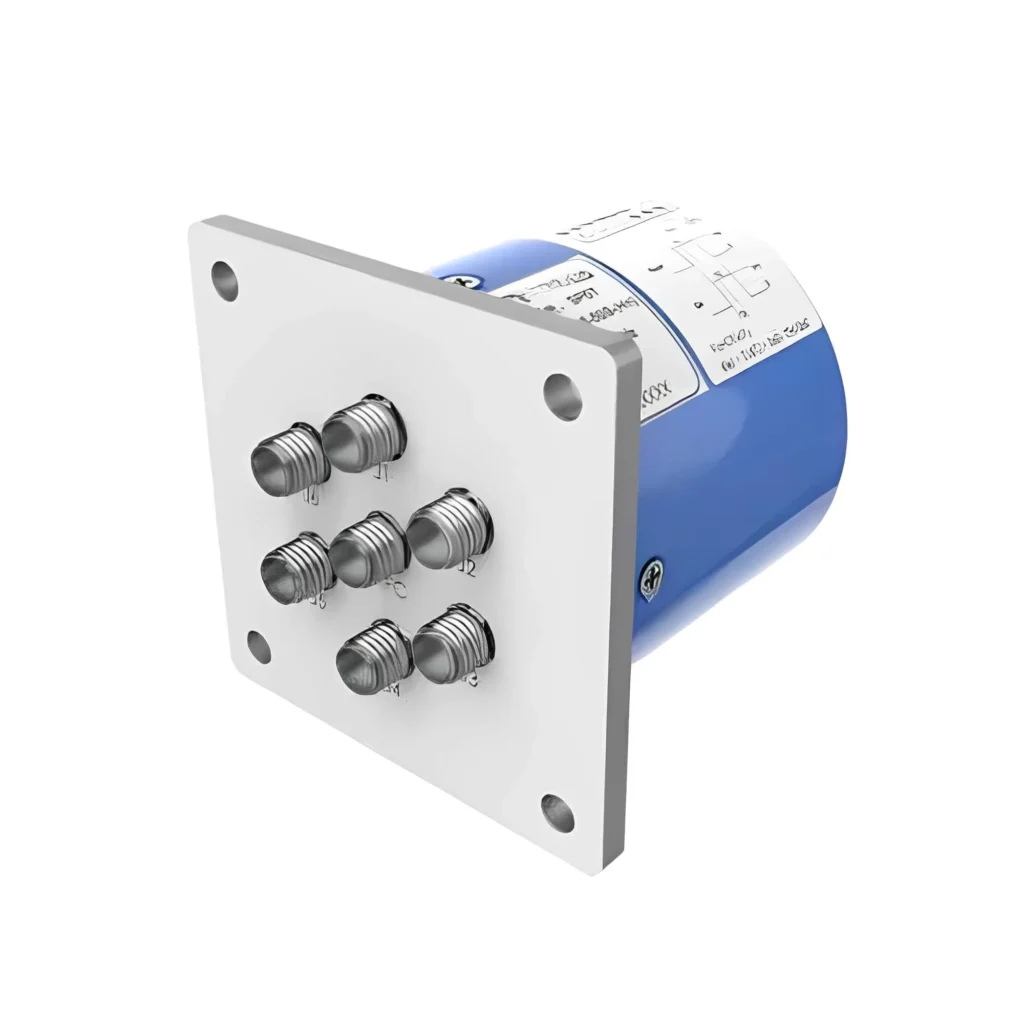

Electro-mechanical Relay Switch
| Part # | Switch Type | RF Low (GHz) | RF High (GHz) | Insertion Loss (dB) Max. | RF Power (dBm) Max. | Isolation (dB) Min. | Transition Time (msec) Typ. | VSWR (:1) Max. | Control | Mechanical Life(times) |
|---|---|---|---|---|---|---|---|---|---|---|
| SPDT-DC1G-A | SPDT | DC | 1 | 0.10 | 170 | 85 | 15 | 1.10 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-1G4G-A | SPDT | 1 | 4 | 0.15 | 90 | 80 | 15 | 1.15 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-4G8G-A | SPDT | 4 | 8 | 0.20 | 70 | 70 | 15 | 1.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-8G12G-A | SPDT | 8 | 12 | 0.30 | 50 | 65 | 15 | 1.30 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-12G18G-A | SPDT | 12 | 18 | 0.35 | 30 | 60 | 15 | 1.35 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-18G26.5G-A | SPDT | 18 | 26.5 | 0.50 | 25 | 55 | 15 | 1.50 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-26.5G40G-A | SPDT | 26.5 | 40 | 0.70 | 18 | 55 | 15 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-40G50G-A | SPDT | 40 | 50 | 0.80 | 15 | 50 | 15 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-50G67G-A | SPDT | 50 | 67 | 1.20 | 10 | 50 | 15 | 2.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SP3T-DC4G-A | SPDT | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP3T-4G8G-A | SPDT | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP3T-8G12.4G-A | SPDT | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP3T-12.4G18G-A | SPDT | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP3T-18G26.5G-A | SPDT | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP3T-26.5G40G-A | SPDT | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP3T-40G50G-A | SPDT | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP4T-DC4G-A | SP4T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP4T-4G8G-A | SP4T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP4T-8G12.4G-A | SP4T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP4T-12.4G18G-A | SP4T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP4T-18G26.5G-A | SP4T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP4T-26.5G40G-A | SP4T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP4T-40G50G-A | SP4T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP5T-DC4G-A | SP5T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP5T-4G8G-A | SP5T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP5T-8G12.4G-A | SP5T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP5T-12.4G18G-A | SP5T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP5T-18G26.5G-A | SP5T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP5T-26.5G40G-A | SP5T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP5T-40G50G-A | SP5T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP6T-DC4G-A | SP6T | DC | 4 | 0.20 | 180 | 70 | 20 | 1.20 | TTL | 5 millions |
| SP6T-4G8G-A | SP6T | 4 | 8 | 0.30 | 140 | 65 | 20 | 1.30 | TTL | 5 millions |
| SP6T-8G12.4G-A | SP6T | 8 | 12.4 | 0.40 | 110 | 60 | 20 | 1.40 | TTL | 5 millions |
| SP6T-12.4G18G-A | SP6T | 12.4 | 18 | 0.50 | 90 | 60 | 20 | 1.50 | TTL | 5 millions |
| SP6T-18G26.5G-A | SP6T | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 2 millions |
| SP6T-26.5G40G-A | SP6T | 26.5 | 40 | 0.80 | 18 | 50 | 20 | 1.90 | TTL | 1 million |
| SP6T-40G50G-A | SP6T | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 1 million |
| SP7T-DC4G-A | SP7T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP7T-4G8G-A | SP7T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP7T-8G12.4G-A | SP7T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP7T-12.4G18G-A | SP7T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP7T-18G26.5G-A | SP7T | 18 | 26.5 | 0.70 | 25 | 55 | 15 | 1.70 | TTL | 2 millions |
| SP8T-DC4G-A | SP8T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP8T-4G8G-A | SP8T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP8T-8G12.4G-A | SP8T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP8T-12.4G18G-A | SP8T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP8T-18G26.5G-A | SP8T | 18 | 26.5 | 0.70 | 25 | 55 | 15 | 1.70 | TTL | 2 millions |
| SP9T-DC4G-A | SP9T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP9T-4G8G-A | SP9T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP9T-8G12.4G-A | SP9T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP9T-12.4G18G-A | SP9T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| SP10T-DC4G-A | SP10T | DC | 4 | 0.20 | 180 | 70 | 15 | 1.20 | TTL | 5 millions |
| SP10T-4G8G-A | SP10T | 4 | 8 | 0.30 | 140 | 65 | 15 | 1.30 | TTL | 5 millions |
| SP10T-8G12.4G-A | SP10T | 8 | 12.4 | 0.40 | 110 | 60 | 15 | 1.40 | TTL | 5 millions |
| SP10T-12.4G18G-A | SP10T | 12.4 | 18 | 0.60 | 90 | 60 | 15 | 1.60 | TTL | 5 millions |
| DPDT-DC1G-A | DPDT | DC | 1 | 0.10 | 280 | 85 | 20 | 1.10 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-1G4G-A | DPDT | 1 | 4 | 0.20 | 150 | 80 | 20 | 1.20 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-4G8G-A | DPDT | 4 | 8 | 0.30 | 100 | 70 | 20 | 1.30 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-8G12.4G-A | DPDT | 8 | 12.4 | 0.40 | 80 | 65 | 20 | 1.40 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-12.4G18G-A | DPDT | 12.4 | 18 | 0.50 | 60 | 60 | 20 | 1.50 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| DPDT-18G26.5G-A | DPDT | 18 | 26.5 | 0.70 | 25 | 55 | 20 | 1.70 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-26.5G40G-A | DPDT | 26.5 | 40 | 0.80 | 18 | 55 | 20 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |
| SPDT-40G50G-A | DPDT | 40 | 50 | 1.10 | 15 | 50 | 20 | 1.90 | TTL | 5 millions（self -hold） 2 millions(self-resetting) |

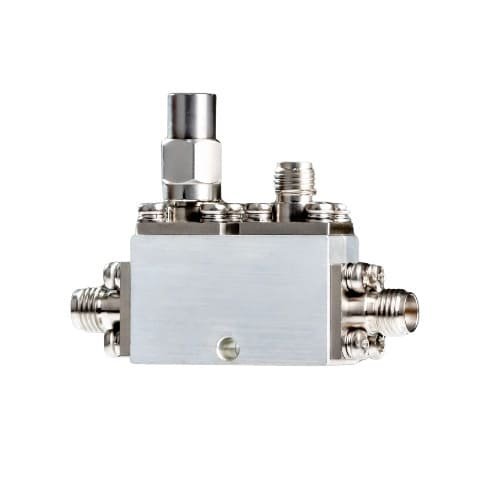

High Power Directional Coupler
| Part# | Frequency Range | Power Handling (Incident) | Power Handling (Reflected) | VSWR | Coupling Factor | Coupling Sensitivity | Directivity | Insertion Loss (Excl. Coupling Loss) | Port Connectors |
|---|---|---|---|---|---|---|---|---|---|
| TDC0306H30 | 0.3~0.6GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±1.0dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0306H30 | 0.3~0.6GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0410A30H | 0.4~1GHz | ≤100Watt | ≤10Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥15dB | ≤0.4dB (0.01dB) | SMA-Female |
| TDC0420A30H | 0.4~2GHz | ≤100Watt | ≤10Watt | ≤1.20:1 | ≤30±1dB | ≤±1dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0404H30 | 0.42~0.45GHz | ≤300Watt | ≤300Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥25dB | ≤0.2dB (0.01dB) | N-Female |
| TDC0512A40DH | 0.5~1.2GHz | ≤120Watt | ≤120Watt | ≤1.25:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0530N30H | 0.5~3.0GHz | ≤100Watt | ≤100Watt | ≤1.30:1 | ≤30±1dB | ≤±1dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC0530H20 | 0.5~3.0GHz | ≤100Watt | ≤50Watt | ≤1.30:1 | ≤20±1.0dB | ≤±1.0dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560N20H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±0.8dB | ≥18dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560N20DH | 0.5~6.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0560N30H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤30±1dB | ≤±0.8dB | ≥18dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0560N20H | 0.5~6.0GHz | ≤150Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±0.8dB | ≥18dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0560H40AB | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1dB | ≤±1.2dB | ≥15dB | ≤0.5dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0560H40 | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0560H30AB | 0.5~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤30±1dB | ≤±1.2dB | ≥15dB | ≤0.5dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0580N20H | 0.5~8.0GHz | ≤150Watt | ≤10Watt | ≤1.40:1 | ≤20±1dB | ≤±1.0dB | ≥12dB | ≤0.7dB (0.04dB) | N-Female |
| TDC0580N20DH | 0.5~8.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0580N30H | 0.5~8.0GHz | ≤120Watt | ≤50Watt | ≤1.50:1 | ≤30±1.0dB | ≤±1.0dB | ≥12dB | ≤0.7dB (0.46dB) | N-Female |
| TDC0580H40 | 0.5~8.0GHz | ≤200Watt | ≤200Watt | ≤1.50:1 | ≤40±1.5dB | ≤±1.8dB | ≥10dB | ≤0.5dB (0.01dB) | N-Female |
| TDC05180N30H | 0.5~18GHz | ≤100Watt | ≤100Watt | ≤1.50:1 | ≤30±1.5dB | ≤±1.5dB | ≤1.2dB (0.01dB) | N-Female | |
| TDC0660N30H | 0.6~6.0GHz | ≤100Watt | ≤50Watt | ≤1.30:1 | ≤30±1dB | ≤±1dB | ≥15dB | ≤0.6dB (0.01dB) | N-Female |
| TDC0660H40AB | 0.6~6.0GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0660N20H | 0.6~6.0GHz | ≤100Watt | ≤10Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0660N20HA | 0.6~6.0GHz | ≤100Watt | ≤10Watt | ≤1.35:1 | ≤20±1dB | ≤±1.2dB | ≥15dB | ≤0.6dB (0.04dB) | N-Female |
| TDC0660N20DH | 0.6~6.0GHz | ≤150Watt | ≤150Watt | ≤1.30:1 | ≤20±1dB | ≤±1dB | ≥18dB | ≤0.8dB (0.04dB) | N-Female |
| TDC0660H40 | 0.6~6.0GHz | ≤300Watt | ≤300Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | N-Female |
| TDC0680H40A | 0.6~8GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±2.5dB | ≤±2dB | ≥15dB | ≤0.4dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC0727A40DH | 0.7~2.7GHz | ≤120Watt | ≤120Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.01dB) | SMA-Female |
| TDC0780N20DH | 0.7~8GHz | ≤100Watt | ≤100Watt | ≤1.30:1 | ≤21±1dB@0.7-1GHz; ≤20±1dB@1-8GHz | ≤±2dB@0.7-1GHz; ≤±1dB@1-8GHz | ≥12dB | ≤0.7dB (0.08dB) | N-Female |
| TDC0825N6H | 0.8~2.5GHz | ≤100Watt | ≤2Watt | ≤1.20:1 | ≤6±1dB | ≤±1.0dB | ≥20dB | ≤0.5dB (1.26dB) | N-Female |
| TDC0840H20 | 0.8~4.0GHz | ≤400Watt | ≤50Watt | ≤1.25:1 | ≤20±0.7dB | ≤±0.7dB | ≥20dB | ≤0.3dB (0.04dB) | N-Female |
| TDC0860H40 | 0.8~6GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC0909H30 | 0.914~0.916GHz | ≤300Watt | ≤50Watt | ≤1.20:1 | ≤30±1.0dB | ≤±0.5dB | ≥22dB | ≤0.2dB (0.04dB) | N-Female |
| TDC0920H30 | 0.95~2GHz | ≤500Watt | ≤500Watt | ≤1.20:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.01dB) | N-Female |
| TDC0920H20 | 0.95~2GHz | ≤500Watt | ≤50Watt | ≤1.20:1 | ≤20±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1020N20H | 1~2GHz | ≤100Watt | ≤10Watt | ≤1.25:1 | ≤20±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1020H40 | 1~2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1020H40D | 1~2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1040H30 | 1~4GHz | ≤400Watt | ≤50Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥17dB | ≤0.3dB (0.04dB) | N-Female |
| TDC1040H40AB | 1~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±1.5dB | ≥15dB | ≤0.3dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC1040H30DA | 1~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤30±1dB | ≤±1.2dB | ≥15dB | ≤0.3dB (0.01dB) | Primary: N-Female; Secondary: SMA-Female |
| TDC1060H40BM | 1~6GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | In: N-Male; Out: N-Female |
| TDC1060N30H | 1~6GHz | ≤120Watt | ≤120Watt | ≤1.30:1 | ≤30±1.0dB | ≤±0.8dB | ≥15dB | ≤0.5dB (0.01dB) | N-Female |
| TDC1060DH40MNB | 1~6GHz | ≤1000Watt | ≤1000Watt | ≤1.50:1 | ≤40±1.0dB | ≤±2.0dB | ≥6dB | ≤0.4dB (0.01dB) | Input:7/16-Male; Output:7/16-Female; Coupled:N-Female |
| TDC1060N30HC | 1~6GHz | ≤250Watt | ≤2Watt | ≤1.30:1 | ≤30±1.5dB | ≤±1.2dB | ≥12dB | ≤0.9dB (0.01dB) | N-Female |
| TDC1060H40D | 1~6GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤40±1dB | ≤±1.2dB | ≥12dB | ≤0.5dB (0.01dB) | N-Female |
| TDC1060H40AB | 1~6GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.5dB | ≤±2.0dB | ≥12dB | ≤0.6dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC1117H50 | 1.1~1.7GHz | ≤400Watt | ≤400Watt | ≤1.30:1 | ≤50±1.0dB | ≤±1.0dB | ≥15dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1117H40 | 1.1~1.7GHz | ≤400Watt | ≤400Watt | ≤1.30:1 | ≤40±1.0dB | ≤±1.0dB | ≥15dB | ≤0.25dB (0.01dB) | N-Female |
| TDC1517N30H | 1.5~1.7GHz | ≤100Watt | ≤100Watt | ≤1.25:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.3dB (0.01dB) | N-Female |
| TDC1530DH40M | 1.5~3.0GHz | ≤1000Watt | ≤1000Watt | ≤1.30:1 | ≤40±1.0dB | ≤±0.5dB | ≥12dB | ≤0.2dB (0.01dB) | In: 7/16-Male; Out: 7/16-Female; Coupled: N-F |
| TDC2025N20H | 2.0~2.5GHz | ≤200Watt | ≤5Watt | ≤1.20:1 | ≤20±0.7dB | ≤±0.7dB | ≥22dB | ≤0.25dB (0.04dB) | N-Female |
| TDC2027H30 | 2.0~2.7GHz | ≤300Watt | ≤5Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.0dB | ≥20dB | ≤0.25dB (0.01dB) | N-Female |
| TDC2040H10 | 2~4GHz | ≤200Watt | ≤2Watt | ≤1.30:1 | ≤10±1.0dB | ≤±1.0dB | ≥18dB | ≤0.4dB (0.04dB) | N-Female |
| TDC2040H20 | 2~4GHz | ≤200Watt | ≤5Watt | ≤1.30:1 | ≤20±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.04dB) | N-Female |
| TDC2040H40D | 2~4GHz | ≤500Watt | ≤500Watt | ≤1.30:1 | ≤40±1.2dB | ≤±1.5dB | ≥18dB | ≤0.3dB (0.01dB) | N-Female |
| TDC2040N10H | 2~4GHz | ≤120Watt | ≤10Watt | ≤1.30:1 | ≤10±1.0dB | ≤±1.0dB | ≥15dB | ≤0.3dB (0.46dB) | N-Female |
| TDC2040N10H | 2~4GHz | ≤120Watt | ≤2Watt | ≤1.30:1 | ≤10±1.0dB | ≤±0.7dB | ≥18dB | ≤0.5dB (0.46dB) | N-Female |
| TDC2060N30H | 2~6GHz | ≤150Watt | ≤50Watt | ≤1.35:1 | ≤30±1dB | ≤±0.8dB | ≥16dB | ≤0.5dB (0.01dB) | N-Female |
| TDC2080N10H | 2~8GHz | ≤120Watt | ≤2Watt | ≤1.30:1 | ≤20±1.0dB | ≤±0.7dB | ≥12dB | ≤0.6dB (0.46dB) | N-Female |
| TDC2080N30H | 2~8GHz | ≤150Watt | ≤2Watt | ≤1.30:1 | ≤30±0.8dB | ≤±0.8dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC20180N10H | 2~18GHz | ≤120Watt | ≤2Watt | ≤1.40:1 | ≤20±1.0dB | ≤±1.0dB | ≥12dB | ≤0.8dB (0.46dB) | N-Female |
| TDC2425DH40M | 2.4~2.5GHz | ≤1000Watt | ≤1000Watt | ≤1.30:1 | ≤40±1.0dB | ≤±0.5dB | ≥15dB | ≤0.2dB (0.01dB) | In: 7/16-Male; Out: 7/16-Female; Coupled: N-F |
| TDC2543N10HA | 2.5~4.3GHz | ≤100Watt | ≤2Watt | ≤1.20:1 | ≤10±1.0dB | ≤±0.8dB | ≥18dB | ≤0.5dB (0.46dB) | N-Female |
| TDC2730H30 | 2.7~3.0GHz | ≤300Watt | ≤5Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.0dB | ≥18dB | ≤0.3dB (0.01dB) | N-Female |
| TDC2933H20MA | 2.9~3.3GHz | ≤400Watt | ≤30Watt | ≤1.24:1 | ≤20±1.0dB | ≤±0.8dB | ≥18dB | ≤0.3dB (0.04dB) | In: N-Male; Out: N-Female; Coupled: SMA-F |
| TDC3342H30A | 3.3~4.2GHz | ≤200Watt | ≤200Watt | ≤1.30:1 | ≤30±1.0dB | ≤±0.8dB | ≥15dB | ≤0.3dB (0.01dB) | Mainline: N-Female; Coupled: SMA-Female |
| TDC3440H30 | 3.4~4.0GHz | ≤500Watt | ≤50Watt | ≤1.30:1 | ≤30±1.0dB | ≤±1.2dB | ≥18dB | ≤0.25dB (0.01dB) | N-Female |
| TDC3440N30H | 3.4~4.0GHz | ≤100Watt | ≤2Watt | ≤1.30:1 | ≤30±0.8dB | ≤±0.8dB | ≥18dB | ≤0.4dB (0.01dB) | N-Female |
| TDC4452N20H | 4.4~5.2GHz | ≤100Watt | ≤5Watt | ≤1.30:1 | ≤20±0.7dB | ≤±0.7dB | ≥18dB | ≤0.4dB (0.04dB) | N-Female |
| TDC5759N30H | 5.7~5.9GHz | ≤150Watt | ≤50Watt | ≤1.30:1 | ≤30±1dB | ≤±0.8dB | ≥24dB | ≤0.4dB (0.01dB) | N-Female |
| TDC80180N30H | 8~18GHz | ≤50Watt | ≤2Watt | ≤1.60:1 | ≤30±1dB | ≤±0.7dB | ≥10dB | ≤0.9dB (0.01dB) | Input: N-Male, Output: N-Female, Coupled: SMA-Female |
High Power Divider
| Part # | No. of Ways | RF Low (GHz) | RF High (GHz) | Insertion Loss (dB) Max. | VSWR (:1) Max. | Isolation (dB) Min. | RF Power (dBm) Max. | Amplitude Unbalance (dB) Max. | Phase Unbalance (deg) Max. | Connector |
|---|---|---|---|---|---|---|---|---|---|---|
| HPD-2-10M1G-A | 2 | 0.01 | 1 | 0.3 | 1.3 | 25 | 60 | 0.3 | 4 | N-Female |
| HPD-2-500M2G-A | 2 | 0.5 | 2 | 0.3 | 1.2 | 25 | 57 | 0.3 | 4 | SMA-Female |
| HPD-2-2G4G-A | 2 | 2 | 4 | 0.5 | 1.5 | 25 | 57 | 0.5 | 5 | SMA-Female |
| HPD-2-4G6G-A | 2 | 4 | 6 | 0.6 | 1.5 | 20 | 57 | 0.5 | 5 | SMA-Female |
| HPD-2-8G12G-A | 2 | 8 | 12 | 0.6 | 1.5 | 18 | 53 | 0.8 | 10 | SMA-Female |
| HPD-2-6G18G-A | 2 | 6 | 18 | 1 | 1.5 | 18 | 50 | 0.8 | 10 | SMA-Female |
Let's talk about your needs
If you can’t find exactly what you are looking for, tell us about your frequency range, power requirements, and specific application areas, and we’ll immediately provide a solution.
English
